FAL340901021 - 90 Amp Circuit Breaker

FAL340901021 - 90 Amp Circuit Breaker

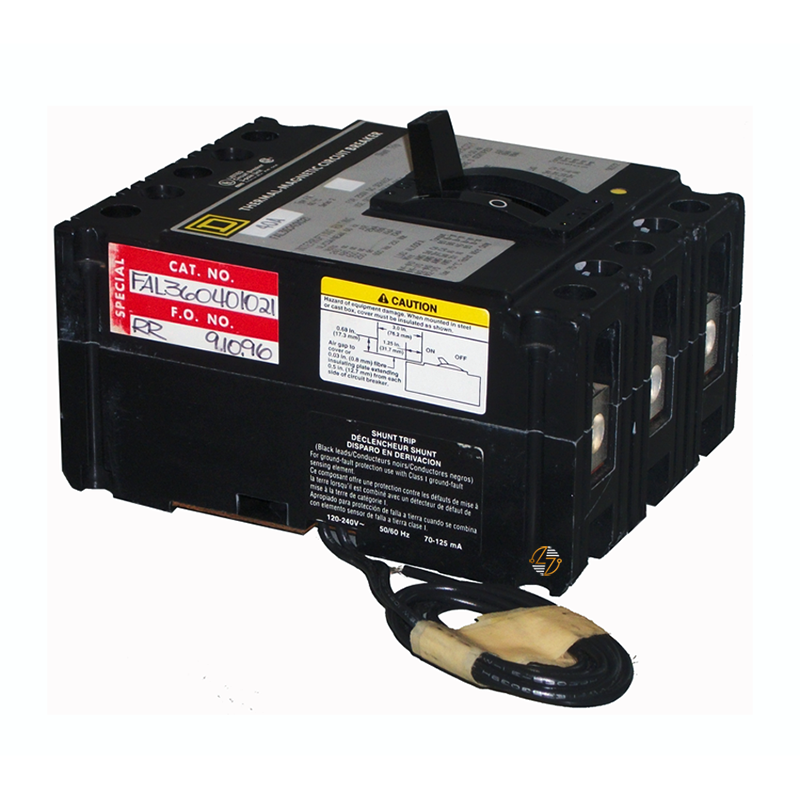

Not every replacement breaker is the same, especially when the original installation includes a factory-installed shunt trip. The Square D FAL340901021 is a 90 Amp, 3-pole FA Series molded case circuit breaker built for compatible 480 VAC systems where remote tripping is part of the equipment's original design. Matching the catalog number and accessory configuration helps you keep maintenance straightforward and avoids unnecessary changes to the existing electrical system.

Key Features and Benefits

• 90 Amp current rating
• Three-pole FA Series molded case circuit breaker
• Factory-installed shunt trip for remote breaker operation
• Thermal-magnetic trip unit protects against overloads and quickly responds to short circuits
• Designed for compatible 480 VAC applications
• Unit-mount construction
• Line and load lug connections
• AL100FA terminal configuration
• HACR rated for qualifying HVAC and refrigeration equipment
• Preserves the original form, fit, and function in compatible FA Series replacement applications
• Built to last for long-term commercial and industrial service

Technical Specifications

• Manufacturer: Square D

• Catalog Number: FAL340901021

• Series: FA

• Product Type: Molded Case Circuit Breaker with Factory-Installed Shunt Trip

• Current Rating: 90 Amps

• Number of Poles: 3

• Voltage Class: 480 VAC

• Trip Unit Technology: Thermal-Magnetic

• Factory-Installed Accessory: Shunt Trip

• Breaking Capacity Code: A

• Mounting Style: Unit Mount

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL100FA

• Phase Connection: ABC

• Magnetic Hold Current: 900 A

• Magnetic Tripping Current: 1700 A

• Circuit Breaker Application: HACR Rated

• Dimensions:
  • Height: 6.4 in.
  • Width: 4.5 in.
  • Depth: 4.13 in.
• Country of Origin: Mexico


Material Compliance and Certifications

The Square D FAL340901021 is UL Listed and CSA Certified for use in applicable molded-case circuit breaker installations. It is also HACR rated for qualifying heating, ventilation, air conditioning, and refrigeration applications. Before installation, verify that the catalog number, amp rating, pole configuration, mounting style, terminal arrangement, and factory-installed shunt trip match the existing equipment. Install according to the National Electrical Code (NEC) and applicable local codes.

Where It Works Best

• Commercial distribution panels
• Industrial switchboards and panelboards
• Manufacturing equipment
• HVAC and refrigeration systems
• Three-phase branch circuits
• Equipment with emergency stop or remote disconnect circuits
• Compatible FA Series electrical distribution systems
