FAL340201021 - 20 Amp Circuit Breaker

FAL340201021 - 20 Amp Circuit Breaker

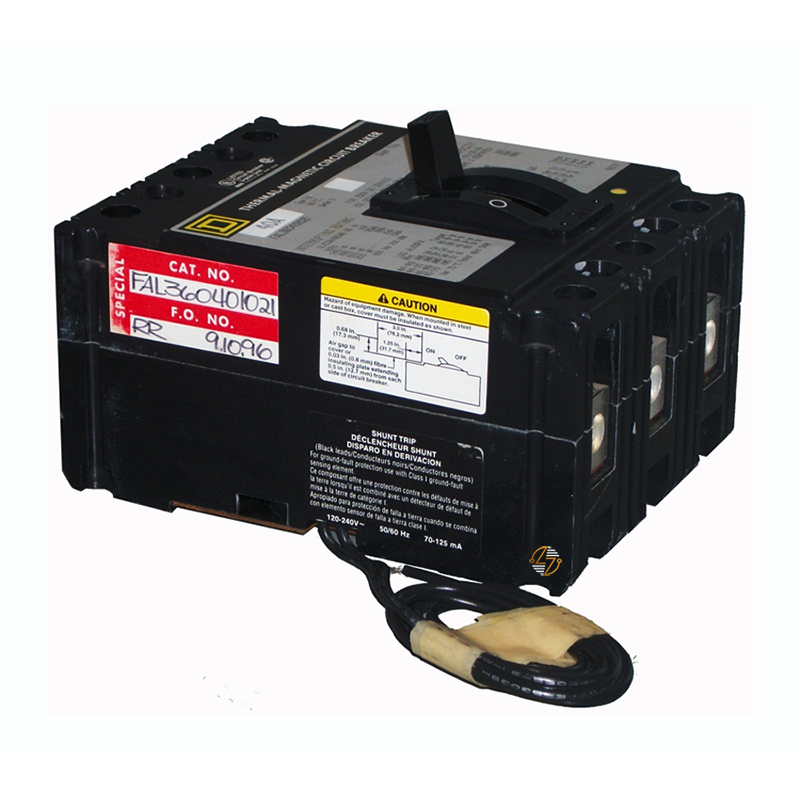

When your breaker with a shunt trip needs to be replaced, getting the right configuration matters just as much as the amp rating. The FAL340201021 is a 20 Amp, 3-pole FA Series molded case circuit breaker with a factory-installed shunt trip, making it a compatible replacement for many existing 480V electrical distribution systems. It's a good choice when you're keeping an existing panel in service and want to preserve the original form, fit, and function, rather than modifying the equipment to accept a different breaker.

Inside the breaker, a thermal-magnetic trip unit handles two different types of faults. The thermal portion reacts when a circuit carries too much current for too long, while the magnetic portion trips almost immediately during a short circuit. Because this model includes a factory-installed shunt trip, it can also be opened remotely via an external control signal, a feature commonly used in emergency shutdown systems and other applications requiring remote operation.

Key Features and Benefits

• 20 Amp current rating
• Three-pole configuration for compatible three-phase electrical systems
• FA Series molded case circuit breaker
• 480V voltage class
• Factory-installed shunt trip for remote electrical tripping
• Thermal-magnetic trip unit protects against overloads and short circuits
• Unit-mount construction
• Line and load lug connections
• AL50FA terminal configuration
• HACR rated for qualifying heating, ventilation, air conditioning, and refrigeration applications
• Built to last for continued service in compatible equipment
• Helps preserve the original form, fit, and function of existing installations
• UL Listed and CSA certified

Technical Specifications

• Catalog Number: FAL340201021

• Series: FA

• Product Type: Molded Case Circuit Breaker with Shunt Trip

• Current Rating: 20 Amps

• Number of Poles: 3

• Voltage Class: 480V

• Trip Unit Technology: Thermal-Magnetic

• Factory Accessory: Shunt Trip

• Breaking Capacity Code: A

• Mounting Mode: Unit Mount

• Phase Connection: ABC

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Tripping Current: 600A

• Circuit Breaker Application: HACR Rated

• Dimensions:
  • Height: 6.4 in. (162.6 mm)
  • Width: 4.5 in. (114.3 mm)
  • Depth: 4.13 in. (104.9 mm)

Material Compliance and Certifications

The FAL340201021 is UL Listed and CSA certified, meeting recognized North American safety standards for molded case circuit breakers. Before replacing an existing breaker, confirm that the amperage, voltage class, pole configuration, mounting method, terminal arrangement, and shunt-trip requirements match those of the equipment you're servicing. Install according to the National Electrical Code (NEC) and applicable local codes.

Where It Works Best

• Existing FA Series panelboards and electrical distribution equipment
• Commercial buildings
• Industrial facilities
• Manufacturing equipment
• Three-phase branch circuits
• HVAC and refrigeration systems requiring an HACR-rated circuit breaker
• Emergency shutdown systems using a factory-installed shunt trip
• Maintenance and repair projects where maintaining the original equipment configuration is important
