FAL24090 - 90 Amp Circuit Breaker

FAL24090 - 90 Amp Circuit Breaker

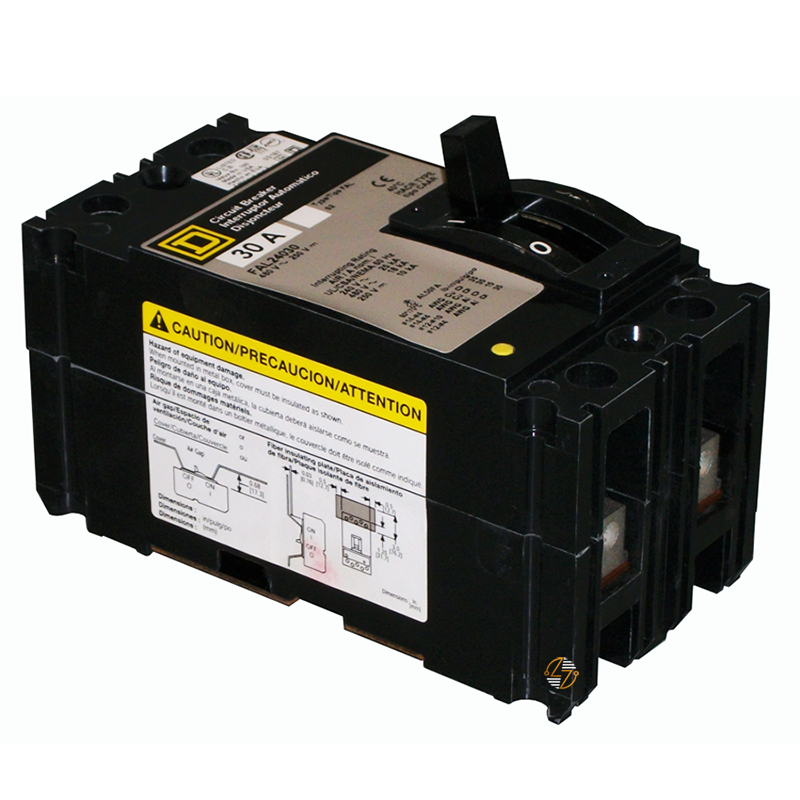

When you're replacing a breaker in an existing electrical system, the details matter. Matching the correct amperage, pole configuration, mounting style, and connection requirements helps ensure the replacement fits the equipment already in place. The FAL24090 is a 90 Amp, 2-pole FA Series thermal-magnetic molded case circuit breaker designed for compatible electrical distribution applications where maintaining the original system configuration is important.

The FAL24090 includes line and load lug connections and uses the AL100FA terminal configuration to match compatible installations. It also carries a HACR rating, making it suitable for qualifying heating, ventilation, air conditioning, and refrigeration applications. Built to last, this molded-case circuit breaker helps keep existing electrical equipment properly matched while maintaining the installation's original form, fit, and function.

Key Features and Benefits

• 90 Amp current rating
• Two-pole configuration for compatible electrical systems
• FA Series thermal-magnetic molded case circuit breaker
• Thermal protection helps respond to overload conditions
• Magnetic protection helps respond to short-circuit events
• HACR rated for qualifying HVAC and refrigeration applications
• Unit-mount design for compatible electrical equipment
• Includes line and load lug connections
• Uses AL100FA terminal configuration
• Molded case construction built for long-term service
• UL Listed and CSA certified
• Maintains the original form, fit, and function for compatible FA Series installations

Technical Specifications

• Catalog Number: FAL24090

• Product Type: Circuit Breaker

• Series: FA

• Trip Unit Technology: Thermal-Magnetic

• Current Rating: 90 Amps

• Number of Poles: 2 Poles

• Mounting Mode: Unit Mount

• Breaking Capacity Code: A

• Circuit Breaker Application: HACR Rated

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL100FA

• Magnetic Hold Current: 900A

• Magnetic Tripping Current: 1700A

• Dimensions:
  • Height: 6.4 inches
  • Width: 3 inches
  • Depth: 4.13 inches

Material Compliance and Certifications

The FAL24090 is a thermal-magnetic molded case circuit breaker with UL Listed and CSA certifications. It is intended for compatible FA Series electrical equipment where the breaker’s amperage, pole configuration, mounting style, and application requirements match the existing installation.

Where It Works Best

• Compatible FA Series electrical distribution equipment
• Commercial electrical panels
• Industrial electrical systems
• HVAC and refrigeration applications requiring HACR-rated protection
• Two-pole branch circuit applications
• Electrical maintenance and repair projects
• Existing installations requiring a compatible 90 Amp, 2-pole FA Series breaker
