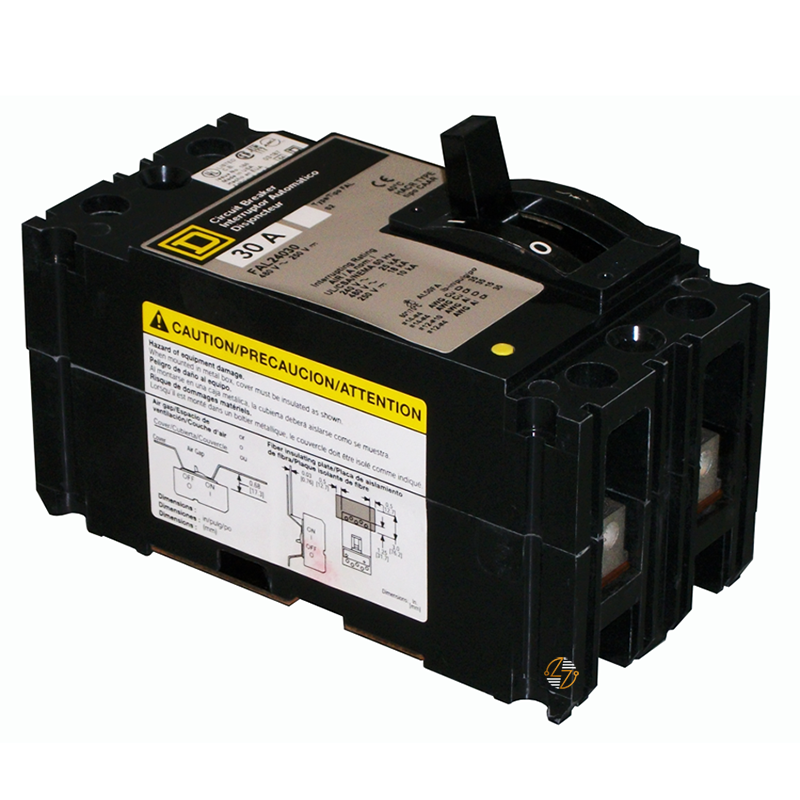

FAL24030 - 30 Amp Circuit Breaker

FAL24030 - 30 Amp Circuit Breaker

Finding the right replacement breaker is all about matching the specifications that keep your existing electrical system operating as intended. The FAL24030 is a 30 Amp, 2-pole FA Series thermal-magnetic molded case circuit breaker designed for compatible electrical distribution equipment where the correct amperage, pole configuration, and mounting style are important.

Built to last, the FAL24030 provides the form, fit, and functional characteristics needed for compatible installations. With its molded case construction, UL Listed and CSA certifications, and FA Series compatibility, it is a straightforward solution for maintenance professionals who need to keep existing electrical equipment properly matched without changing the original system configuration.

Key Features and Benefits

• 30 Amp current rating
• Two-pole configuration for compatible electrical systems
• FA Series thermal-magnetic molded case circuit breaker
• Thermal protection helps respond to overload conditions
• Magnetic protection helps respond to short-circuit events
• HACR rated for qualifying HVAC and refrigeration applications
• Unit-mount installation style
• Includes line and load lug connections
• Compact molded case construction built for long-term service

Technical Specifications

• Catalog Number: FAL24030

• Product Type: Circuit Breaker

• Series: FA

• Trip Unit Technology: Thermal-Magnetic

• Current Rating: 30 Amps

• Number of Poles: 2 Poles

• Mounting Mode: Unit Mount

• Breaking Capacity Code: A

• Circuit Breaker Application: HACR Rated

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Tripping Current: 600A

• Dimensions:
  • Height: 6.4 inches
  • Width: 3 inches
  • Depth: 4.13 inches

Material Compliance and Certifications

The FAL24030 is a thermal-magnetic molded case circuit breaker with UL Listed and CSA certifications. Before installation, verify that the breaker specifications align with the electrical system requirements. Installation should be completed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and equipment requirements.

Where It Works Best

• Compatible FA Series electrical distribution equipment
• Commercial electrical panels
• Industrial electrical systems
• HVAC and refrigeration applications requiring HACR-rated protection
• Two-pole branch circuit applications
• Electrical maintenance and repair projects
• Existing installations requiring a compatible 30 Amp, 2-pole FA Series breaker
