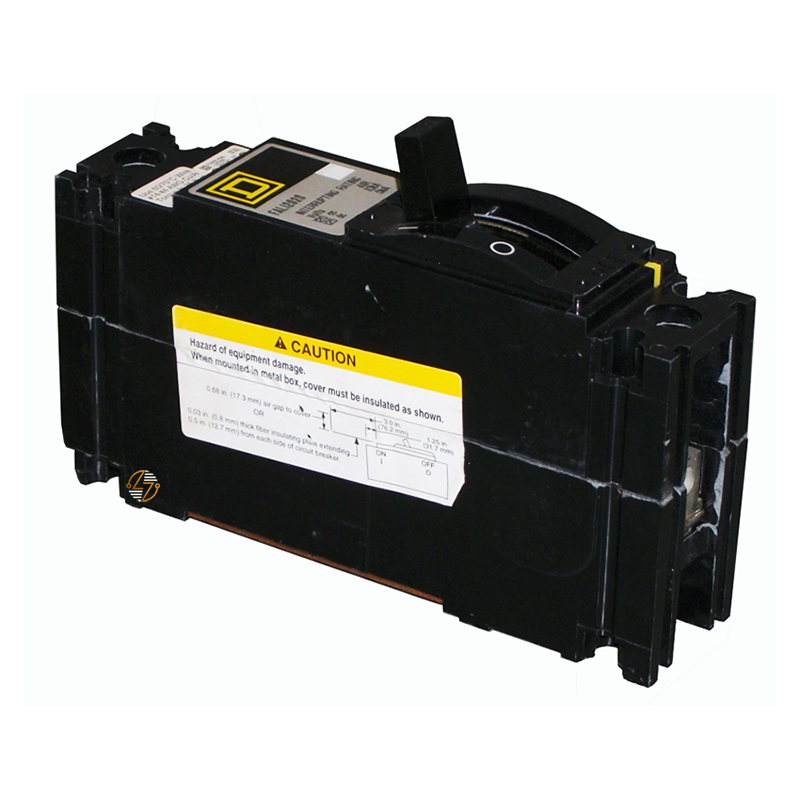

FAL14030 - 30 Amp Circuit Breaker

FAL14030 - 30 Amp Circuit Breaker

When you're maintaining an existing electrical system, finding the right breaker often comes down to matching the original specifications. The FAL14030 is a 30 Amp, 1-pole FA Series thermal-magnetic molded case circuit breaker designed for compatible electrical distribution equipment where proper fit and functionality are important. With its 30 Amp rating, single-pole configuration, and unit-mount design, this breaker is a practical choice for applications that require a matching FA Series component.

Built to last, this breaker helps maintain the original form, fit, and function of compatible installations while supporting the protection requirements expected from a thermal-magnetic circuit breaker.

Key Features and Benefits

• 30 Amp current rating
• Single-pole configuration for compatible electrical applications
• FA Series thermal-magnetic molded case circuit breaker
• Thermal protection helps respond to overload conditions
• Magnetic protection helps respond to short-circuit events
• Unit-mount installation style
• Includes line and load lug connections
• Compact molded case construction built for long-term service
• UL Listed and CSA certified
• Maintains the original form, fit, and function for compatible FA Series applications

Technical Specifications

• Catalog Number: FAL14030

• Product Type: Circuit Breaker

• Series: FA

• Trip Unit Technology: Thermal-Magnetic

• Current Rating: 30 Amps

• Number of Poles: 1 Pole

• Mounting Mode: Unit Mount

• Breaking Capacity Code: A

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Tripping Current: 600A

• Dimensions:
  • Height: 6.4 inches
  • Width: 1.5 inches
  • Depth: 4.13 inches

Material Compliance and Certifications

The FAL14030 is a thermal-magnetic molded case circuit breaker with UL Listed and CSA certifications. It is intended for compatible FA Series electrical equipment where the voltage rating, amperage, pole configuration, and mounting style match the existing application. Before installation, confirm that the breaker specifications align with the requirements of the electrical system. Installation should be completed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and equipment requirements.

Where It Works Best

• Compatible FA Series electrical distribution equipment
• Commercial electrical panels
• Industrial electrical systems
• Branch circuit protection applications
• Single-phase electrical installations
• Electrical maintenance and repair projects
• Existing installations requiring a compatible 30 Amp, 1-pole FA Series breaker
