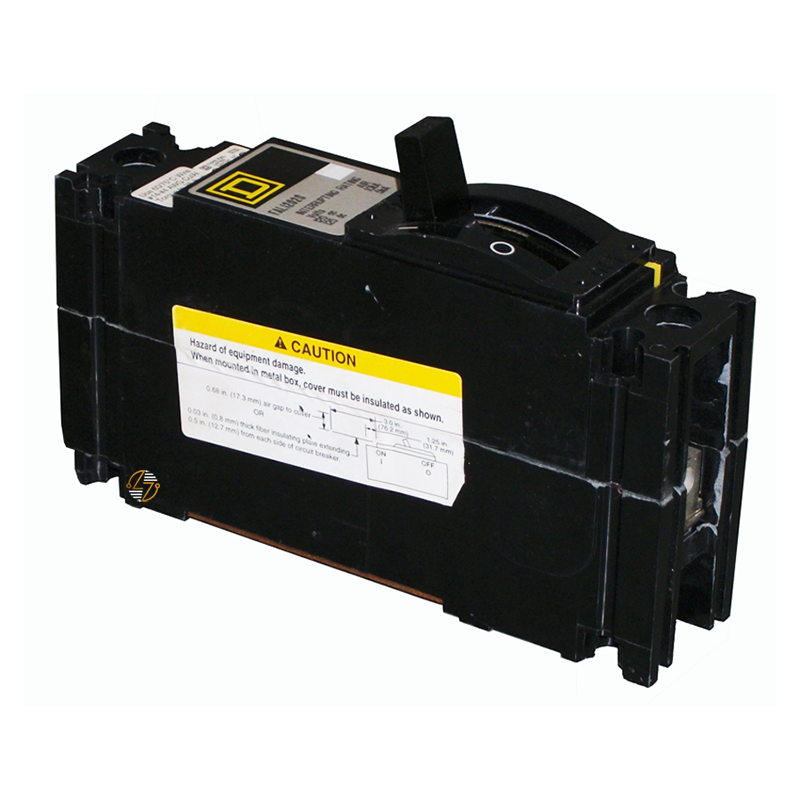

Finding the right replacement breaker is about more than just matching the amp rating. The pole configuration, mounting style, connection type, and compatibility with the existing electrical equipment all matter. The FAL14020 is a 20 Amp, 1-pole FA Series thermal-magnetic molded case circuit breaker designed for applications where maintaining the original system configuration is important.

This breaker combines thermal protection for overload conditions with magnetic protection for short-circuit conditions, helping protect your electrical circuits from common overcurrent events. With a 20 Amp current rating, 1-pole design, and unit-mount configuration, the FAL14020 is a practical choice for compatible electrical distribution equipment. It includes line and load lug connections and features the FA Series design used in a variety of commercial and industrial applications.

Key Features and Benefits

• 20 Amp current rating
• Single-pole configuration for compatible electrical applications
• FA Series thermal-magnetic molded case circuit breaker
• Thermal protection helps respond to overload conditions
• Magnetic protection helps respond to short-circuit events
• Unit-mount installation style
• Includes line and load lug connections
• Push-to-Trip feature allows manual breaker operation for testing and maintenance
• UL Listed and CSA certified
• Maintains the original form, fit, and function for compatible FA Series applications

Technical Specifications

• Catalog Number: FAL14020

• Product Type: Circuit Breaker

• Series: FA

• Trip Unit Technology: Thermal-Magnetic

• Current Rating: 20 Amps

• Number of Poles: 1 Pole

• Voltage Rating: 277VAC

• Interrupting Rating: 10kA @ 277VAC

• Mounting Mode: Unit Mount

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Tripping Current: 600A

• Dimensions:
  • Height: 6.4 inches
  • Width: 1.5 inches
  • Depth: 4.13 inches

Material Compliance and Certifications

The FAL14020 is a thermal-magnetic molded case circuit breaker with UL Listed and CSA certifications. It is intended for compatible FA Series applications where the voltage rating, amperage, pole configuration, and mounting style match the existing equipment. Before installation, verify that the breaker specifications align with the requirements of the electrical system. Installation should be completed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and equipment requirements.

Where It Works Best

• Compatible FA Series electrical distribution equipment
• Commercial electrical panels
• Industrial electrical systems
• Branch circuit protection applications
• Single-phase electrical installations
• Electrical maintenance and repair projects
• Existing installations requiring a compatible 20 Amp, 1-pole FA Series breaker
