FAL14015 - 15 Amp Circuit Breaker

FAL14015 - 15 Amp Circuit Breaker

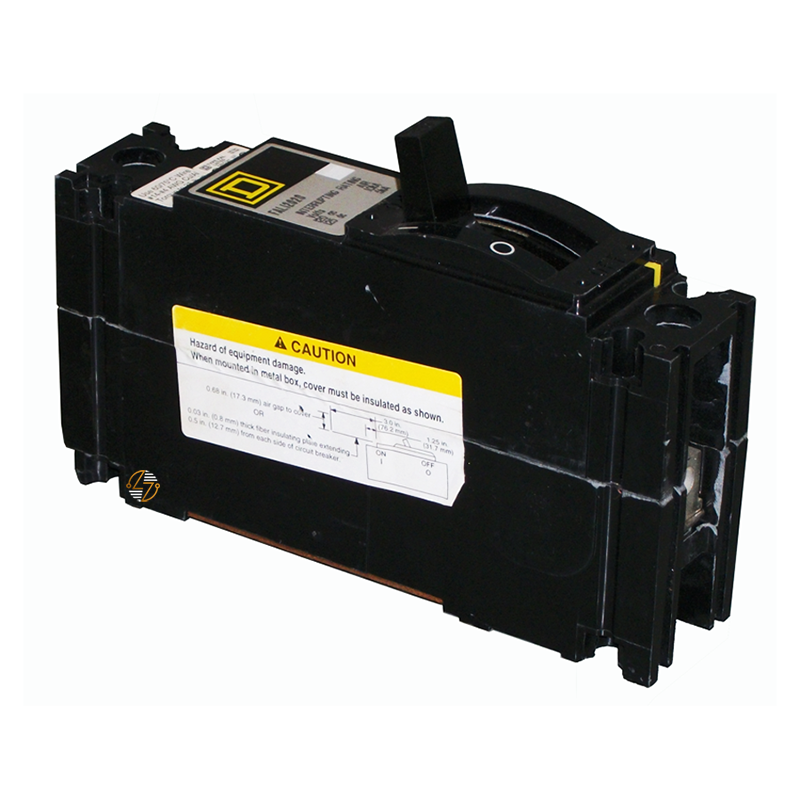

Finding you the right replacement circuit breaker is usually about getting the details right — the correct amperage, pole configuration, mounting style, and compatibility with the existing electrical equipment. The FAL14015 is a 15 Amp, 1-pole FA Series thermal-magnetic molded case circuit breaker designed for applications where matching the original breaker specifications is important.

This breaker combines two types of protection in one compact design. The thermal trip function responds to sustained overload conditions, while the magnetic trip function reacts to short-circuit events.

Key Features and Benefits

• 15 Amp current rating for compatible electrical applications
• Single-pole design for space-efficient installations
• FA Series thermal-magnetic molded case circuit breaker
• Thermal protection helps respond to overload conditions
• Magnetic protection helps respond to short-circuit events
• Unit-mount design for compatible equipment
• Includes line and load lug connections
• Compact molded case construction built for long-term service
• UL Listed and CSA certified
• Maintains the original form, fit, and function for compatible FA Series installations

Technical Specifications

• Catalog Number: FAL14015

• Product Type: Circuit Breaker

• Series: FA

• Trip Unit Technology: Thermal-Magnetic

• Current Rating: 15 Amps

• Number of Poles: 1 Pole

• Mounting Mode: Unit Mount

• Breaking Capacity Code: A

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Tripping Current: 600A

• Dimensions:
  • Height: 6.4 inches
  • Width: 1.5 inches
  • Depth: 4.13 inches

Material Compliance and Certifications

The FAL14015 is a thermal-magnetic molded case circuit breaker with UL Listed and CSA certifications. It is intended for compatible FA Series electrical equipment where the breaker ratings and physical configuration match the existing installation. Before installation, confirm the voltage rating, amperage, pole configuration, and mounting requirements for the application. Installation should be performed by qualified electrical personnel in accordance with the National Electrical Code (NEC), local electrical requirements, and applicable equipment guidelines.

Where It Works Best

• Compatible FA Series electrical distribution equipment
• Commercial electrical panels
• Industrial electrical systems
• Single-phase branch circuit applications
• Facility maintenance and repair projects
• Electrical replacement work requiring a compatible 15 Amp, 1-pole FA Series breaker
