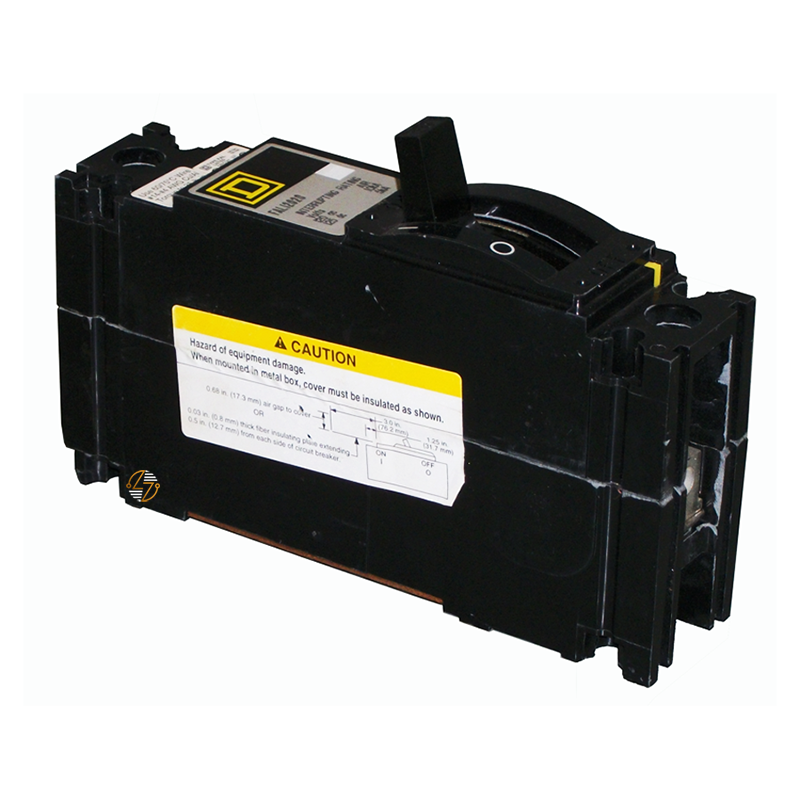

FAL12030 - 30 Amp Circuit Breaker

FAL12030 - 30 Amp  Circuit Breaker

Finding the right replacement circuit breaker is often about matching the details that keep an existing electrical system working properly. The FAL12030 is a 30 Amp, 1-pole FA Series thermal-magnetic molded case circuit breaker designed for compatible electrical distribution equipment where the original breaker specifications need to be maintained.

This breaker combines thermal protection for overload conditions with magnetic protection for short circuits, helping protect your connected circuits during normal operation and fault conditions.

Key Features and Benefits

• 30 Amp current rating
• 1-pole design for compatible single-phase applications
• FA Series thermal-magnetic molded case circuit breaker
• Thermal protection helps respond to overload conditions
• Magnetic protection helps respond to short-circuit events
• Unit-mount installation style
• Includes line and load lug connections
• Compact molded case construction built for long-term service
• UL Listed and CSA certified
• Maintains the original form, fit, and function required for compatible FA Series installations

Technical Specifications

• Catalog Number: FAL12030

• Product Type: Circuit Breaker

• Series: FA

• Trip Unit Technology: Thermal-Magnetic

• Current Rating: 30 Amps

• Number of Poles: 1 Pole

• Mounting Mode: Unit Mount

• Breaking Capacity Code: A

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Tripping Current: 600A

• Dimensions:
  • Height: 6.4 inches
  • Width: 1.5 inches
  • Depth: 4.13 inches

Material Compliance and Certifications

The FAL12030 is a thermal-magnetic molded case circuit breaker with UL Listed and CSA certifications. It is intended for compatible FA Series applications where the voltage rating, amperage, pole configuration, and mounting style match the existing equipment. Before installation, confirm that the breaker specifications align with the requirements of the electrical system. Installation should be performed by qualified electrical personnel in accordance with the National Electrical Code (NEC), local electrical codes, and applicable equipment requirements.

Where It Works Best

• Compatible FA Series electrical distribution equipment
• Commercial electrical panels
• Industrial electrical systems
• Single-phase branch circuit applications
• Facility maintenance and repair projects
• Existing installations requiring a compatible 30 Amp, 1-pole FA Series breaker
