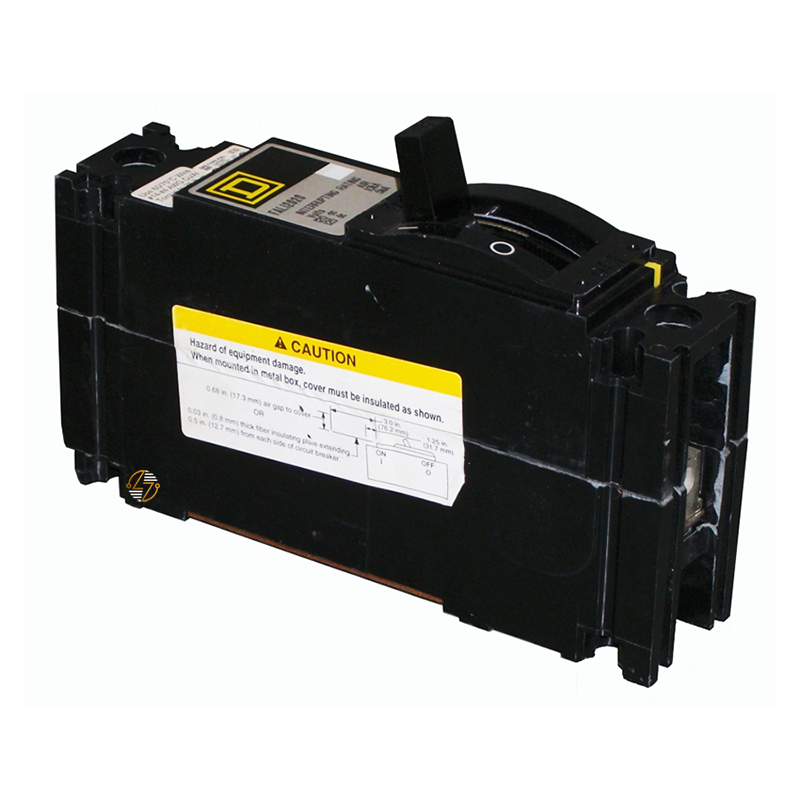

FAL12020 - 20 Amp Circuit Breaker

FAL12020 - 20 Amp Circuit Breaker

Finding the right replacement breaker often comes down to matching the details that matter: amp rating, pole configuration, mounting style, and compatibility with the existing electrical equipment. The FAL12020 is a 20 Amp, 1-pole FA Series thermal-magnetic molded case circuit breaker built for applications where maintaining the original system setup is important.

With UL Listed and CSA certifications, this molded case circuit breaker is suited for applications where dependable circuit protection and proper equipment matching are required. Built to last, the FAL12020 helps keep your compatible electrical systems operating as intended while maintaining the original form, fit, and function of the installation.

Key Features and Benefits

• 20 Amp current rating for compatible electrical applications
• Single-pole design for space-conscious installations
• FA Series thermal-magnetic molded case circuit breaker
• Thermal protection helps respond to sustained overload conditions
• Magnetic protection helps respond to short-circuit events
• Unit-mount design for compatible equipment
• Includes line and load lug connections
• Compact molded case construction built for long-term service
• UL Listed and CSA certified
• Maintains the original form, fit, and function for compatible FA Series applications

Technical Specifications

• Catalog Number: FAL12020

• Product Type: Circuit Breaker

• Series: FA

• Trip Unit Technology: Thermal-Magnetic

• Current Rating: 20 Amps

• Number of Poles: 1 Pole

• Mounting Mode: Unit Mount

• Breaking Capacity Code: A

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Tripping Current: 600A

• Dimensions:
  • Height: 6.4 inches
  • Width: 1.5 inches
  • Depth: 4.13 inches

Material Compliance and Certifications

The FAL12020 is a thermal-magnetic molded case circuit breaker with UL Listed and CSA certifications. It is intended for compatible electrical systems where the voltage, amperage, pole configuration, and mounting requirements match the application. Before installation, confirm that the breaker specifications align with the existing equipment. Installation should be performed by qualified electrical personnel in accordance with the National Electrical Code (NEC), local electrical codes, and applicable installation requirements.

Where It Works Best

• Compatible FA Series electrical distribution equipment
• Commercial electrical panels
• Industrial control and distribution applications
• Single-phase branch circuit protection
• Electrical maintenance and repair projects
• Existing installations requiring a compatible 20 Amp, 1-pole FA Series breaker
