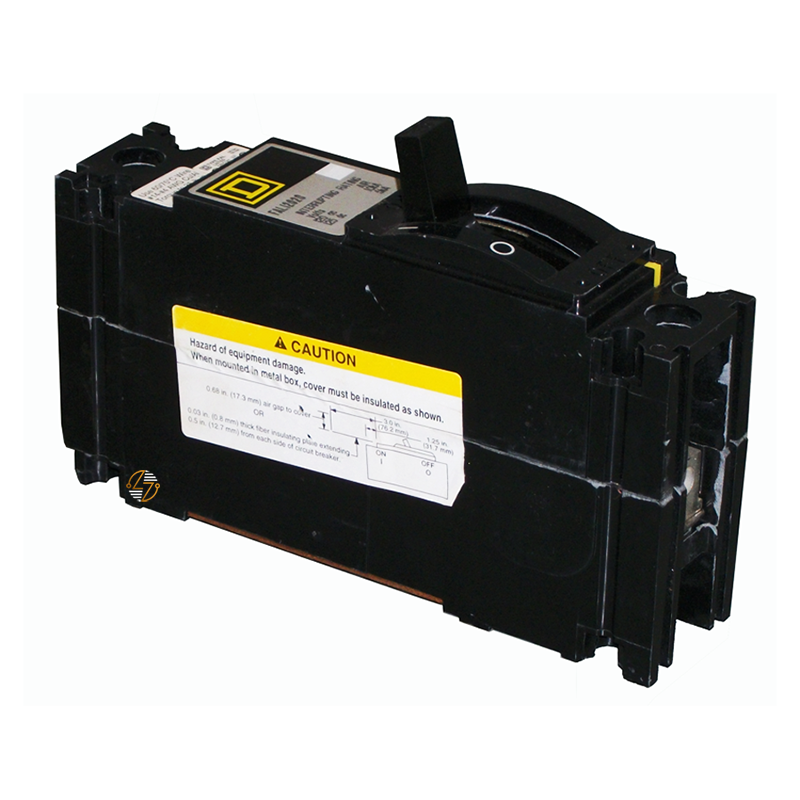

FAL12015- 15 Amp Circuit Breaker

FAL12015-  15 Amp Circuit Breaker

The FAL12015 is a 15-amp, 1-pole FA Series thermal-magnetic molded-case circuit breaker built for compatible electrical distribution equipment. This breaker combines thermal overload protection with magnetic short-circuit protection in a compact unit-mount design, helping to protect your connected circuits from common overcurrent conditions.

Rated at 120VAC with a 10kA interrupting capacity, the FAL12015 is commonly used in applications where maintaining the correct breaker specifications is important. The built-in Push-to-Trip feature allows the breaker to be manually tripped for testing and maintenance without direct contact with live internal components.

Key Features and Benefits

• 15 Amp current rating
• Single-pole configuration
• FA Series thermal magnetic molded case circuit breaker
• Thermal protection helps respond to overload conditions
• Magnetic protection helps respond to short-circuit events
• 120VAC rated operation
• Unit-mount design for compatible electrical equipment
• Line and load lugs included for connection points
• Push-to-Trip feature for manual breaker operation during testing and maintenance
• Built to last for continued service in compatible applications

Technical Specifications

• Catalog Number: FAL12015

• Product Type: Molded Case Circuit Breaker

• Series: FA

• Trip Unit Technology: Thermal Magnetic

• Current Rating: 15 Amps

• Number of Poles: 1 Pole

• Voltage Rating: 120VAC

• Interrupting Rating: 10kA @ 120VAC

• Mounting Mode: Unit Mount

• Electrical Connections:
  • Line Lugs
  • Load Lugs
• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Tripping Current: 600A

• Dimensions:
  • Height: 6.4 inches
  • Width: 1.5 inches
  • Depth: 4.13 inches

Material Compliance and Certifications

The FAL12015 is a thermal-magnetic molded-case circuit breaker with UL Listed and CSA certifications. It is intended for use in compatible FA Series applications where the voltage, amperage, pole configuration, and mounting style match the existing equipment. Before installation, verify that the breaker specifications meet the requirements of the electrical system. Installation should be completed by qualified electrical personnel in accordance with the National Electrical Code (NEC) and applicable local electrical requirements.

Where It Works Best

• Compatible FA Series electrical distribution equipment
• Commercial electrical panels
• Industrial electrical systems
• Branch circuit protection applications
• Single-phase electrical applications
• Electrical maintenance and replacement projects
• Existing installations requiring a compatible 15 Amp, 1-pole FA Series breaker
