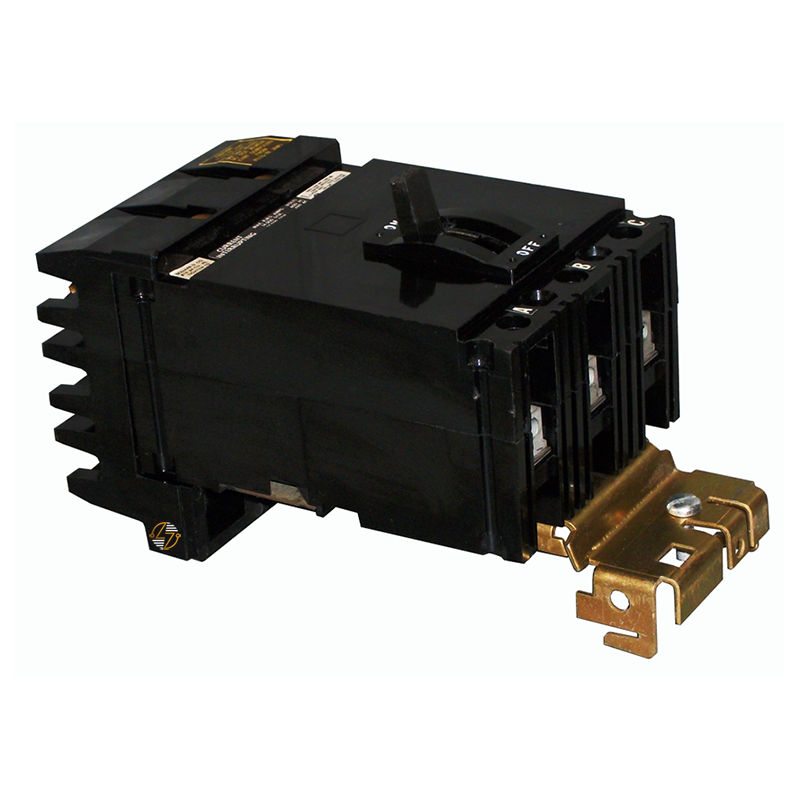

The FA36100 Old Style is a 100-amp, 3-pole thermal-magnetic molded-case circuit breaker designed for use in compatible FA Series I-Line panelboards. When you're maintaining existing electrical distribution equipment, selecting a breaker with matching specifications is important for keeping the original system configuration in place.

The thermal magnetic trip mechanism helps protect your circuits by responding to both overload conditions and short circuits. Built to last, this molded-case circuit breaker is a practical solution for commercial and industrial facilities that need to maintain their existing FA Series electrical equipment without changing the original panelboard setup.

Key Features and Benefits

• 100 Amp current rating
• Three-pole configuration for compatible three-phase electrical systems
• FA Series Old Style thermal magnetic molded case circuit breaker
• Thermal magnetic trip mechanism helps protect against overloads and short circuits
• Designed for compatible I-Line panelboard installations
• HACR Type rated for qualifying HVAC and refrigeration applications
• Rated for 60Hz electrical systems
• Suitable for ambient temperatures up to 40°C (104°F)
• Built to last in existing commercial and industrial electrical systems
• Maintains the original form, fit, and function required for compatible FA Series installations

Technical Specifications

• Part Number: FA36100 Old Style

• Type: FA

• Circuit Breaker Type: Thermal Magnetic Molded Case Circuit Breaker

• Amperage: 100 Amps

• Poles: 3

• Voltage Ratings: 600VAC, 480VAC, 240VAC

• Interrupting Capacity (A.I.C.):
  • 14kA @ 600VAC
  • 14kA @ 480VAC
  • 18kA @ 240VAC
• Frequency: 60Hz

• HACR Rated: Yes

• Ambient Temperature Rating: 40°C (104°F)

• Application: I-Line Panelboards

• Dimensions:
  • Width: 4.50" W
  • Height: 8.75" H
  • Depth: 4.38" D
• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

The FA36100 Old Style is a thermal-magnetic molded-case circuit breaker intended for installation in compatible FA Series I-Line panelboards. Before installation, verify that the breaker’s amperage, voltage rating, interrupting capacity, pole configuration, and physical dimensions match the requirements of the existing electrical system. Installation should be completed by qualified electrical personnel in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the original equipment manufacturer's guidelines.

Where It Works Best

• The FA36100 Old Style is commonly used in:
• FA Series I-Line panelboards
• Commercial electrical distribution systems
• Industrial facilities
• Manufacturing plants
• Office buildings
• Educational and institutional facilities
• Healthcare facilities
• HVAC and refrigeration equipment requiring HACR-rated protection
• Three-phase branch and feeder circuits
