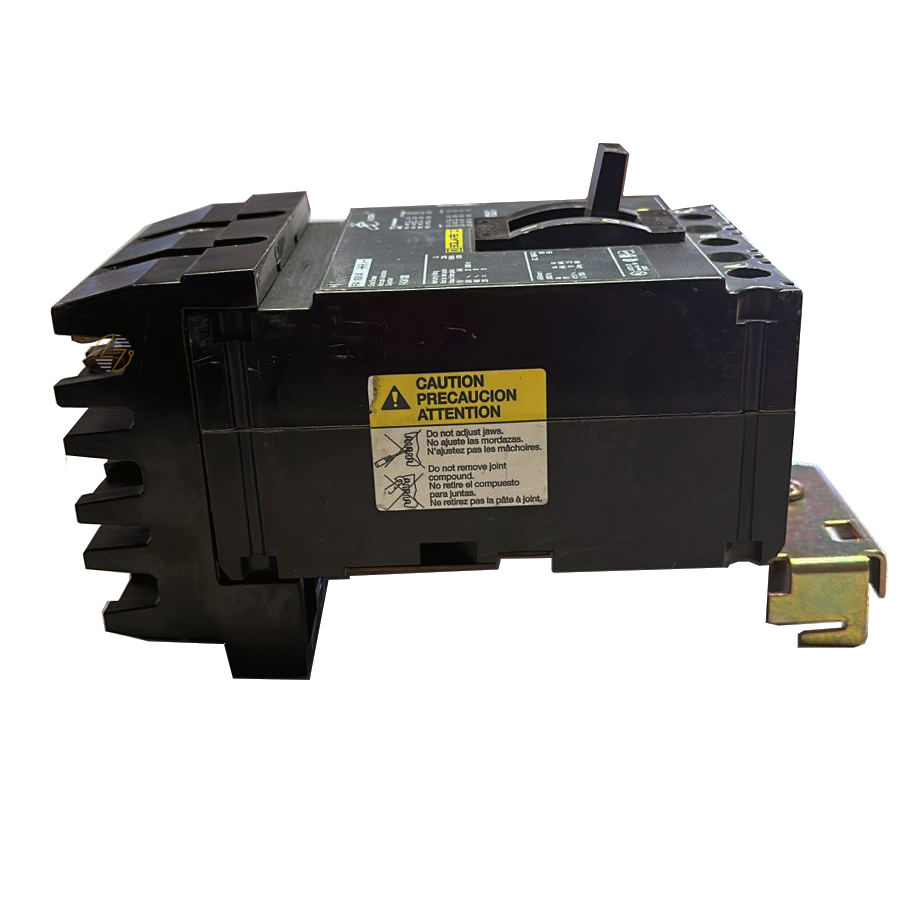

FA32015 - 15 Amp Circuit Breaker

FA32015 - 15 Amp Circuit Breaker

When you need a 15 Amp, 3-pole circuit breaker that matches the requirements of an existing I-Line panelboard, the FA32015 is designed to provide the proper fit and electrical ratings for the job. This thermal-magnetic molded-case circuit breaker helps protect electrical circuits by responding to both prolonged overloads and instantaneous short circuits. Rated for 240VAC with a 10kA interrupting capacity, it is intended for 60Hz electrical systems operating in ambient temperatures up to 40°C. Whether you're replacing a worn breaker during scheduled maintenance or restoring a compatible electrical distribution system, the FA32015 is built to deliver the form, fit, and function your equipment was originally designed to use.

Key Features and Benefits

• 15 Amp current rating
• Three-pole design for compatible three-phase applications
• Thermal magnetic trip mechanism protects against overloads and short circuits
• Designed for use in compatible I-Line panelboards
• Rated for 60Hz electrical systems
• Suitable for installations with ambient temperatures up to 40°C
• Maintains the original form, fit, and function of compatible FA Series equipment
• Built to last in demanding commercial and industrial environments


Technical Specifications

• Part Number: FA32015

• Type: FA

• Product Type: Thermal Magnetic Molded Case Circuit Breaker

• Amperage: 15 Amps

• Poles: 3

• Voltage Rating: 240VAC

• Interrupting Rating: 10kA @ 240VAC

• Frequency: 60Hz

• Application: Compatible I-Line Panelboards

• Trip Type: Thermal Magnetic

• Ambient Temperature Rating: 40°C

• Dimensions:
  • 4.50" W × 8.75" H × 4.38" D
• Approximate Shipping Weight: 7.50 lbs.


Material Compliance and Certifications

The FA32015 is intended for installation in compatible FA Series I-Line panelboards. Before installation, verify that the breaker's amperage, voltage rating, interrupting capacity, pole configuration, and mounting requirements match the existing equipment. Installation should always be completed by a qualified electrician in accordance with the National Electrical Code (NEC), applicable local electrical codes, and the equipment manufacturer's installation guidelines.

Where It Works Best

• Compatible FA Series I-Line panelboards
• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Electrical distribution systems requiring a 15 Amp, 3-pole circuit breaker
• Maintenance and repair of compatible legacy electrical equipment
• Applications where maintaining the original form, fit, and function is important
