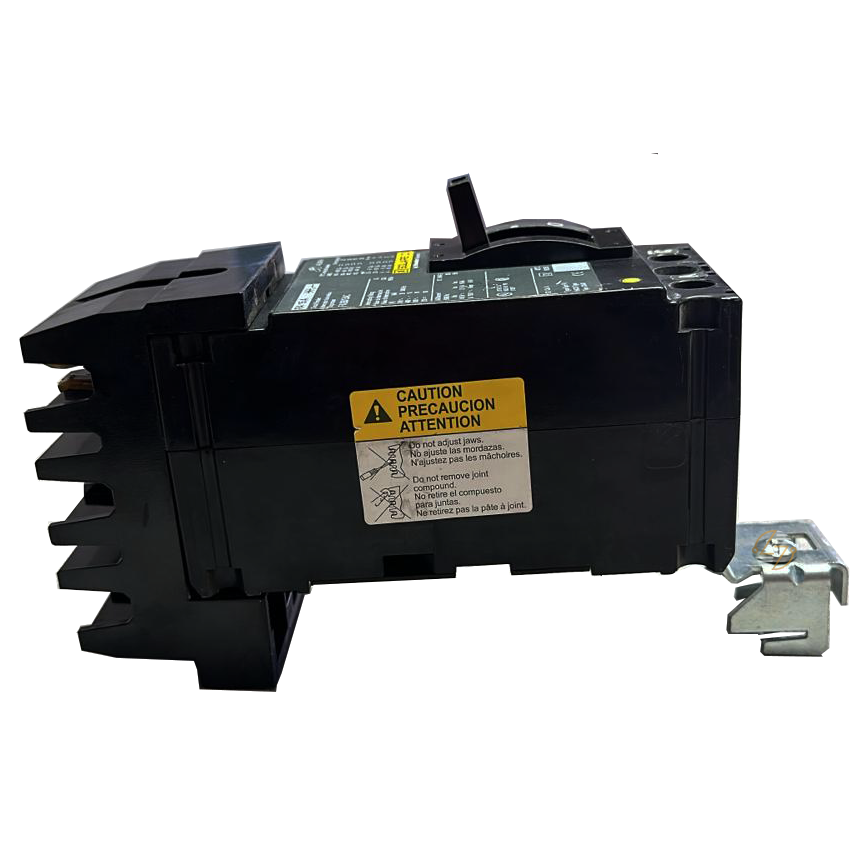

FA24030AB - 30 Amp Circuit Breaker

FA24030AB - 30 Amp Circuit Breaker

When you need a 30 Amp, 2-pole circuit breaker that matches the requirements of an existing FA-frame I-Line electrical system, the FA24030AB offers the correct form, fit, and function for compatible installations. Designed with a thermal-magnetic trip unit, it helps protect electrical circuits from overloads and short circuits while fitting equipment built for an I-Line plug-in connection and A-B phase configuration. Rated for 18kA at 480VAC and 25kA at 240VAC, this molded-case circuit breaker is intended for 60Hz applications operating at ambient temperatures up to 40°C. It is also HACR Type rated, making it suitable for compatible heating, air conditioning, and refrigeration equipment.

Key Features and Benefits

• 30 Amp current rating
• Two-pole molded case circuit breaker
• FA frame design
• Thermal-magnetic protection against overloads and short circuits
• I-Line plug-in mounting for compatible equipment
• A-B phase configuration
• HACR Type rated
• Designed for 60Hz electrical systems
• Suitable for operation in 40°C ambient conditions
• Form, fit, and functional replacement for compatible FA-frame installations
• Built to last for long-term service in existing electrical systems


Technical Specifications

• Part Number: FA24030AB

• Type: FA

• Product Type: Molded Case Circuit Breaker

• Amperage: 30 Amps

• Poles: 2

• Trip Unit: Thermal-Magnetic

• A.I.C. Rating: 18kA @ 480VAC; 25kA @ 240VAC

• Frequency: 60Hz

• Mounting Style: I-Line Plug-In

• Phase Configuration: A-B

• HACR Rated: Yes

• Operating Temperature: 40°C

• Dimensions:
  • Width: 3.00 in.
  • Height: 8.75 in.
  • Depth: 4.38 in.
• Approximate Shipping Weight: 6.25 lbs.


Material Compliance and Certifications

The FA24030AB is manufactured for use in compatible FA-frame I-Line electrical distribution equipment that matches its electrical ratings and mounting style. It carries a HACR Type designation for use in compatible heating, ventilation, air conditioning, and refrigeration applications. Before installation, verify that the amp rating, interrupting capacity, mounting method, and phase configuration match the equipment specifications.

Where It Works Best

The FA24030AB is commonly used in compatible electrical distribution systems found in:

• Commercial buildings
• Industrial facilities
• Manufacturing plants
• Office buildings
• Educational campuses
• Healthcare facilities
• Warehouses
• Compatible FA-frame I-Line panelboards
• Compatible I-Line switchboards
• HVAC systems requiring an HACR-rated circuit breaker
