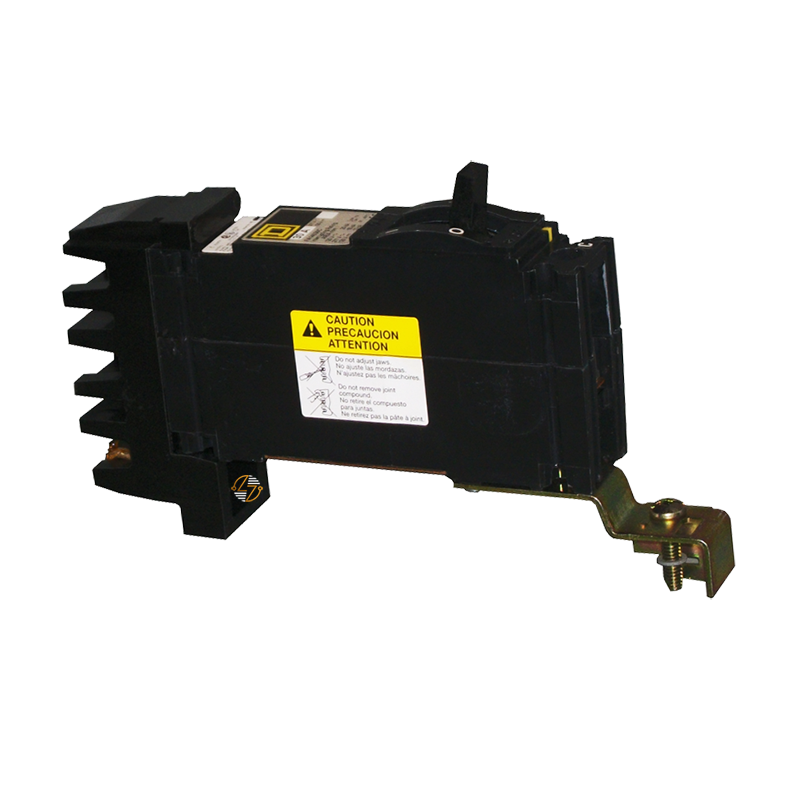

FA14030B - 30 Amp Circuit Breaker

FA14030B - 30 Amp Circuit Breaker

When you need a compatible replacement breaker for an existing I-Line electrical system, the FA14030B is designed to provide the correct fit and electrical protection. This 30 Amp, 1-pole thermal-magnetic circuit breaker is intended for use on 277/480V AC systems and combines overload and short-circuit protection in a single device. The thermal trip responds to prolonged overcurrent conditions, while the magnetic trip reacts almost instantly to higher fault currents.

Key Features and Benefits

• 30 Amp current rating
• Single-pole design
• Thermal-magnetic trip mechanism for overload and short-circuit protection
• Rated for 277/480V AC applications
• I-Line mounting configuration
• I-Line line-side connection with lug load terminals
• Magnetic hold current of 275A
• Magnetic tripping current of 600A
• Designed as a form, fit, and functional replacement for compatible I-Line equipment
• Built to last in commercial and industrial electrical systems


Technical Specifications

• Catalog Number: FA14030B

• Product Type: Circuit Breaker

• Current Rating: 30 Amps

• Poles: 1

• Trip Unit: Thermal-Magnetic

• Voltage Rating: 277/480V AC

• Mounting Style: I-Line

• Breaking Capacity Code: A

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Trip Current: 600A

• Dimensions:
  • Height: 6.4 in.
  • Width: 1.5 in.
  • Depth: 4.13 in.

Material Compliance and Certifications

The FA14030B is UL Listed and CSA Certified, meeting recognized North American safety standards for use in compatible electrical distribution equipment. Installation should be performed by qualified personnel and in accordance with applicable electrical codes.

Where It Works Best

The FA14030B is commonly used in compatible I-Line panelboards and switchboards found in:

• Commercial buildings
• Manufacturing facilities
• Warehouses
• Schools and universities
• Hospitals and healthcare facilities
• Retail buildings
• Government facilities
• Branch circuit and lighting distribution systems
