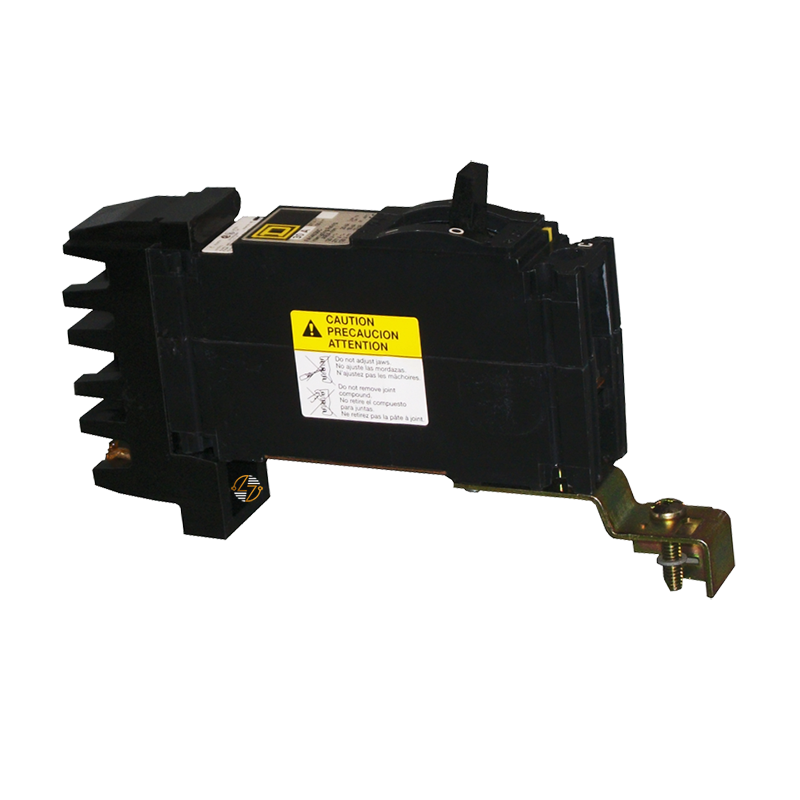

FA14030A - 30 Amp Circuit Breaker

FA14030A - 30 Amp Circuit Breaker

When you need a compatible replacement breaker for an existing I-Line electrical distribution system, the FA14030A provides the ratings and configuration needed to help keep your equipment operating as designed. This 30 Amp, 1-pole thermal-magnetic circuit breaker is intended for 277/480V AC applications and helps protect electrical circuits from overloads and short circuits. Its thermal trip element responds to prolonged overcurrent conditions, while the magnetic trip mechanism reacts quickly to higher fault currents, helping protect connected equipment and wiring.

Key Features and Benefits

• 30 Amp current rating
• Single-pole design
• Thermal-magnetic trip unit for overload and short-circuit protection
• Rated for use on 277/480V AC electrical systems
• I-Line mounting configuration for compatible equipment
• I-Line line connection with lug load terminals
• Magnetic hold current of 275A
• Magnetic tripping current of 600A
• Form, fit, and functional replacement for compatible I-Line electrical distribution systems
• Built to last for demanding commercial and industrial environments


Technical Specifications

• Catalog Number: FA14030A

• Product Type: Circuit Breaker

• Current Rating: 30 Amps

• Number of Poles: 1

• Trip Unit: Thermal-Magnetic

• Voltage Rating: 277/480V AC

• Mounting Style: I-Line

• Breaking Capacity Code: A

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Trip Current: 600A

• Dimensions:
  • Height: 6.4 in.
  • Width: 1.5 in.
  • Depth: 4.13 in.
• Country of Origin: Mexico


Material Compliance and Certifications

The FA14030A is UL Listed and CSA Certified, demonstrating compliance with recognized North American electrical safety standards. It is intended for installation in compatible equipment by qualified electrical personnel and should be installed in accordance with applicable electrical codes and the manufacturer's installation instructions.

Where It Works Best

• Commercial office buildings
• Industrial facilities
• Manufacturing plants
• Educational campuses
• Healthcare facilities
• Retail buildings
• Municipal and government facilities
