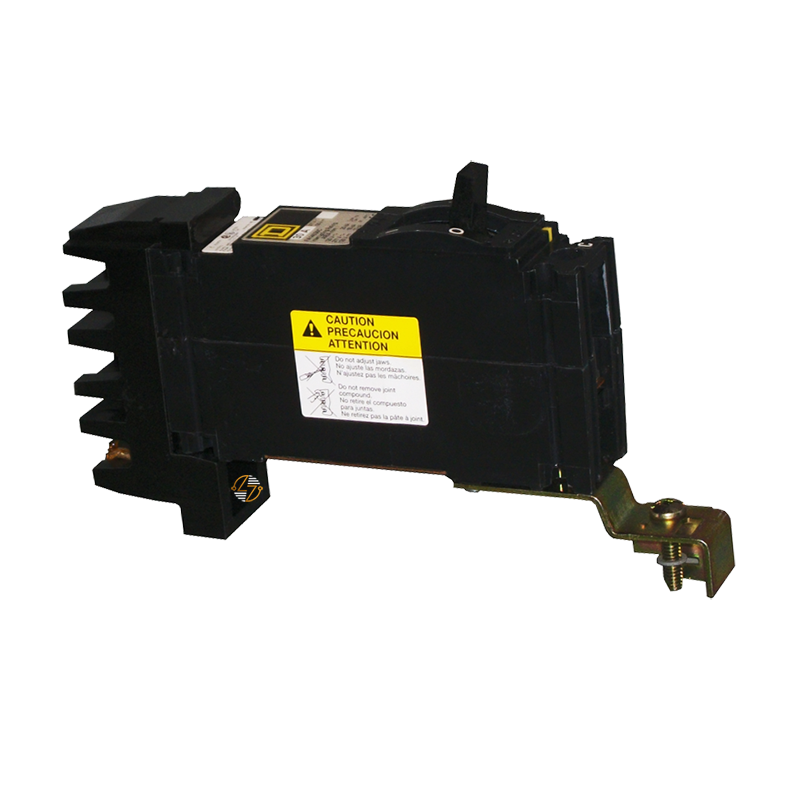

FA14020B - 20A Circuit Breaker

FA14020B 20A Circuit Breaker

The Schneider Electric FA14020B circuit breaker is a robust and reliable solution designed for industrial and commercial electrical systems. As a member of the PowerPacT B family, this 1-pole, 20A breaker offers superior performance and safety with a voltage rating of 480Y/277VAC. Engineered with thermal-magnetic trip technology, it ensures optimal protection against overloads and short circuits, making it an ideal choice for protecting your electrical circuits.

Key Features and Benefits:

• Thermal-Magnetic Trip Technology: Provides reliable protection by combining thermal (overload) and magnetic (short circuit) trip functions.
• High Breaking Capacity: With a breaking capacity of 18kA, it efficiently interrupts high fault currents, ensuring system safety.
• I-Line Mounting: Designed for quick and easy installation in I-Line panelboards, reducing downtime and installation costs.
• Durable Construction: Built with high-quality materials to withstand harsh industrial environments.

Technical Specifications:

• Voltage Rating: 480Y/277V
• Current Rating: 20A
• Number of Poles: 1
• Breaking Capacity Code: A
• Magnetic Hold Current: 275A
• Magnetic Tripping Current: 600A
• Electrical Connection: Lugs (load side), I-Line connection (line side)
• Terminal Identifier: AL50FA
• Dimensions: Height - 6.4 in (162.56 mm), Width - 1.5 in (38.10 mm), Depth - 4.13 in (104.90 mm)
• Certifications: CSA, UL Listed

Material Compliance and Certifications:

• Compliance: The FA14020B circuit breaker adheres to stringent environmental and safety standards. It is compliant with RoHS and REACh regulations, ensuring that it is free from hazardous substances and meets the necessary environmental safety criteria. Schneider Electric‰۪s Green Premium‰ã¢ label certifies its best-in-class environmental performance, highlighting its sustainability and low CO2 footprint.

Suitability:

• The FA14020B circuit breaker is ideal for use in commercial and industrial environments where reliable circuit protection is crucial. Its robust construction and high interrupting capacity make it suitable for use in settings where reliability and safety are paramount.

Ensure your electrical systems are protected with the FA14020B circuit breaker, a product that combines advanced technology, reliability, and environmental responsibility.
