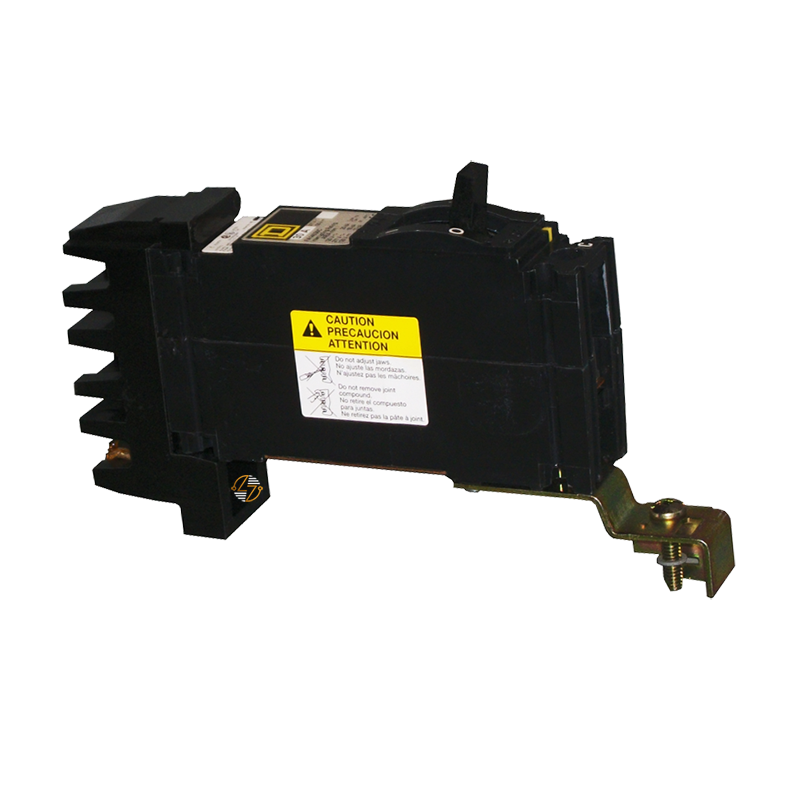

FA14015C - 15 Amp Circuit Breaker

FA14015C - 15 Amp Circuit Breaker

The FA14015C is a 15 Amp, 1-pole thermal-magnetic circuit breaker designed for use in compatible 277/480V AC I-Line electrical distribution systems. Featuring an I-Line connection on the line side and lug terminals on the load side, the FA14015C is intended for installation in compatible I-Line panelboards and switchboards where maintaining the original system configuration is important. Whether you're replacing an existing breaker during scheduled maintenance or restoring a legacy electrical distribution system, this breaker provides the proper form, fit, and function for compatible applications.

Key Features and Benefits

• 15 Amp continuous current rating
• Single-pole (1P) configuration
• Thermal-magnetic trip unit for overload and short-circuit protection
• Rated for 277/480V AC applications
• I-Line mounting design for compatible equipment
• I-Line line connection with lug load terminals
• Magnetic hold current: 275A
• Magnetic trip current: 600A
• Designed for use in compatible I-Line panelboards and switchboards
• Built to last for long-term service in commercial and industrial electrical systems


Technical Specifications

• Catalog Number: FA14015C

• Product Type: Circuit Breaker

• Current Rating: 15 Amps

• Number of Poles: 1

• Trip Unit Technology: Thermal-Magnetic

• Voltage Rating: 277/480V AC

• Mounting Style: I-Line

• Breaking Capacity Code: A

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Trip Current: 600A

• Dimensions:
  • Height: 6.4 in.
  • Width: 1.5 in.
  • Depth: 4.13 in.

Material Compliance and Certifications

The FA14015C is UL Listed and CSA Certified, meeting recognized North American safety standards for electrical distribution equipment. It is intended for installation in compatible equipment by qualified personnel and should be installed in accordance with applicable electrical codes and manufacturer recommendations.

Where It Works Best

• Commercial office buildings
• Manufacturing and industrial facilities
• Schools and universities
• Healthcare facilities
• Retail and mixed-use buildings
• Municipal and government properties
• 277/480V lighting distribution systems
• Branch circuit protection in compatible I-Line electrical distribution equipment
• Maintenance and repair of existing I-Line electrical systems
