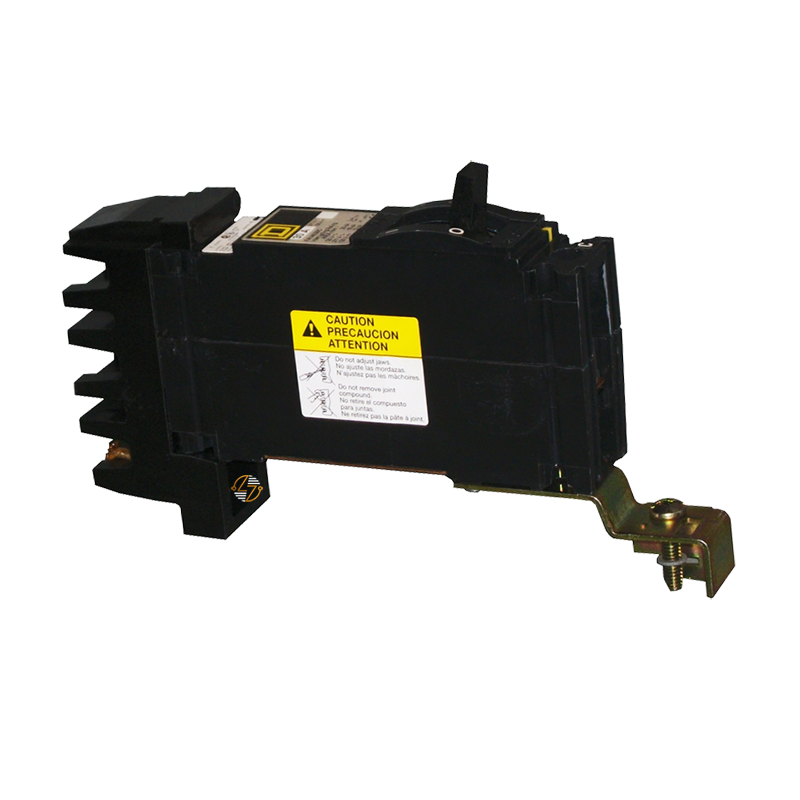

FA14015B - 15 Amp Circuit Breaker

FA14015B - 15 Amp Circuit Breaker

The FA14015B is a 15 Amp, 1-pole thermal-magnetic circuit breaker designed for use in compatible 277/480V AC I-Line electrical distribution systems. It provides both overload and short-circuit protection through a combination of thermal and magnetic trip mechanisms, helping protect branch circuits and connected equipment during normal operation and fault conditions. With its I-Line connection on the line side and lug terminals on the load side, this breaker installs in compatible I-Line panelboards and switchboards without requiring changes to the existing system. Whether you're replacing a worn breaker during routine maintenance or servicing an existing electrical distribution system, the FA14015B offers the correct form, fit, and function for compatible applications.

Key Features and Benefits

• 15 Amp continuous current rating
• Single-pole design
• Thermal-magnetic trip unit for overload and short-circuit protection
• Rated for 277/480V AC applications
• I-Line mounting configuration
• I-Line line connection with lug load terminals
• Magnetic hold current: 275A
• Magnetic trip current: 600A
• Fits compatible I-Line panelboards and switchboards
• Built to last in demanding commercial and industrial environments
• Form, fit, and functional replacement for compatible equipment


Technical Specifications

• Catalog Number: FA14015B

• Product Type: Circuit Breaker

• Current Rating: 15 Amps

• Poles: 1

• Trip Unit: Thermal-Magnetic

• Voltage Rating: 277/480V AC

• Mounting Style: I-Line

• Breaking Capacity Code: A

• Line Connection: I-Line

• Load Connection: Lugs

• Terminal Identifier: AL50FA

• Magnetic Hold Current: 275A

• Magnetic Trip Current: 600A

• Dimensions:
  • Height: 6.4 in.
  • Width: 1.5 in.
  • Depth: 4.13 in.
• Country of Origin: Mexico

Material Compliance and Certifications

The FA14015B is UL Listed and CSA Certified, meeting widely recognized North American safety standards for electrical distribution equipment. It is intended for installation in compatible equipment by qualified personnel and should always be installed in accordance with applicable electrical codes and manufacturer recommendations.

Where It Works Best

The FA14015B is well suited for maintaining compatible I-Line panelboards and switchboards used throughout commercial and industrial facilities. Typical applications include:

• Commercial office buildings
• Manufacturing plants
• Schools and universities
• Healthcare facilities
• Retail buildings
• Municipal and institutional properties
• 277/480V lighting and branch circuit protection
• Maintenance and repair of existing I-Line electrical distribution systems
