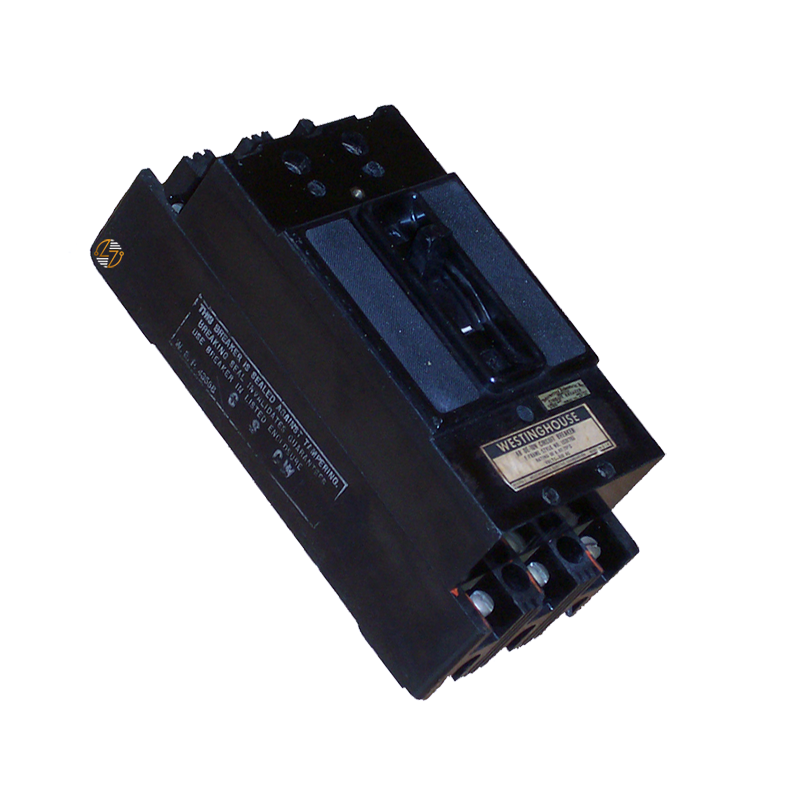

F3060 - 60Amp Circuit Breaker

F3060 - 60Amp Circuit Breaker

When you're replacing an existing circuit breaker, matching the original specifications is one of the most important steps. The F3060 is a 60 Amp, 3-pole Type F molded case circuit breaker designed for 480VAC electrical distribution systems with a 14kA interrupting capacity. Built on the F-Frame platform, it features a thermal-magnetic, non-interchangeable trip unit and is rated for operation in 40°C ambient conditions. This model also includes load terminals, helping simplify installation in compatible equipment.

Key Features and Benefits

• 60 Amp current rating
• Three-pole configuration
• Type F molded case circuit breaker
• F-Frame construction
• Thermal-magnetic, non-interchangeable trip unit
• Rated for operation in 40°C ambient conditions
• Load terminals included
• Built to last for continued service in existing electrical systems


Technical Specifications

• Part Number: F3060

• Product Type: Molded Case Circuit Breaker

• Type: F

• Frame: F-Frame

• Amperage: 60 Amps

• Poles: 3

• Trip Unit: Thermal-magnetic, non-interchangeable

• Voltage Rating: 480VAC

• Interrupting Capacity: 14kA @ 480VAC

• Ambient Rating: 40°C

• Load Terminals: Included

• Dimensions:
  • Width: 4.13 in.
  • Height: 6.00 in.
  • Depth: 3.38 in.
• Approximate Shipping Weight: 8.50 lbs.


Material Compliance and Certifications

The available product specifications do not identify material compliance information or third-party certifications for the F3060.

Where It Works Best

The F3060 is commonly found in commercial buildings, industrial facilities, manufacturing plants, switchboards, panelboards, motor control equipment, and other 480VAC electrical distribution systems that require a compatible 60 Amp, 3-pole Type F circuit breaker.
