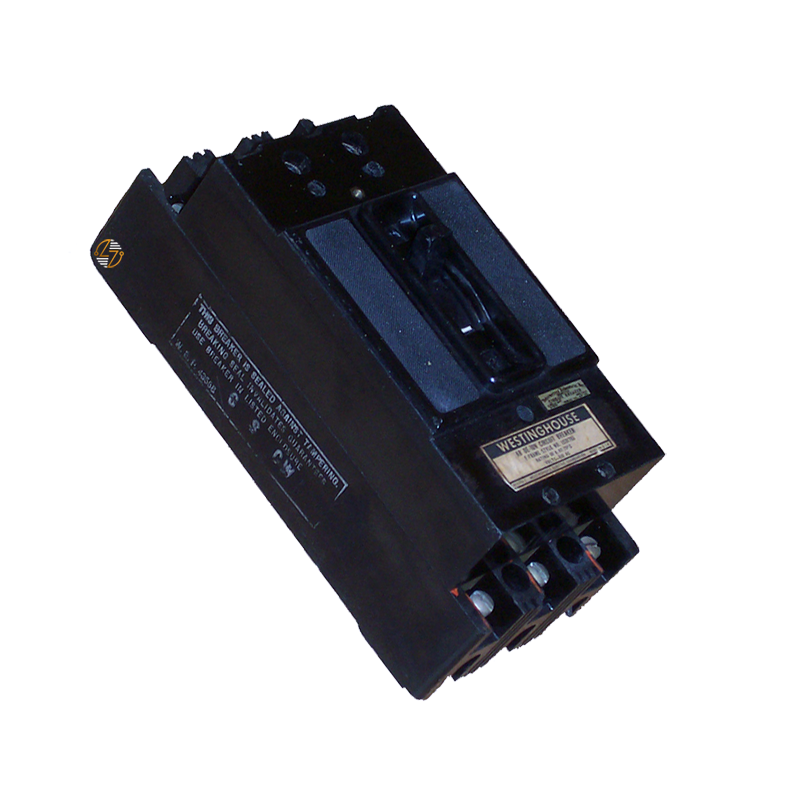

F3030 - 30Amp Circuit Breaker

F3030 - 30Amp Circuit Breaker

The F3030 is a 30 Amp, 3-pole Type F molded case circuit breaker intended for electrical systems that require a 14kA interrupting rating at 480VAC. When you're replacing an existing breaker, matching the original specifications is the key to maintaining compatibility. Built on an F-Frame with a thermal-magnetic, non-interchangeable trip unit, the F3030 is designed as a form, fit, and functional replacement for compatible equipment already in service.

Rated for 40°C ambient operation, this breaker includes load terminals, making it a practical option for maintenance and repair work in commercial and industrial settings. It's built to last and helps protect electrical circuits from overloads and short circuits while preserving the original equipment configuration.

Key Features and Benefits

• 30 Amp current rating
• Three-pole configuration
• Type F molded case circuit breaker
• F-Frame construction
• Thermal-magnetic, non-interchangeable trip unit
• Rated for operation in 40°C ambient conditions
• Load terminals included
• Form, fit, and functional replacement for compatible equipment
• Built to last for continued service in existing electrical systems


Technical Specifications

• Part Number: F3030

• Product Type: Molded Case Circuit Breaker

• Type: F

• Frame: F-Frame

• Amperage: 30 Amps

• Poles: 3

• Trip Unit: Thermal-magnetic, non-interchangeable

• Voltage Rating: 480VAC

• Interrupting Capacity: 14kA @ 480VAC

• Ambient Rating: 40°C

• Load Terminals: Included

• Dimensions:
  • Width: 4.13 in.
  • Height: 6.00 in.
  • Depth: 3.38 in.
• Approximate Shipping Weight: 8.50 lbs.


Material Compliance and Certifications

The F3030 is intended for applications requiring a compatible 30 Amp, 3-pole Type F molded case circuit breaker. Before installation, confirm that the electrical ratings, frame type, trip characteristics, pole configuration, and dimensions match the original equipment requirements.

Where It Works Best

The F3030 is commonly used in commercial buildings, manufacturing facilities, industrial plants, switchboards, panelboards, motor control equipment, and other 480VAC electrical distribution systems that require a compatible 30 Amp, 3-pole Type F circuit breaker.
