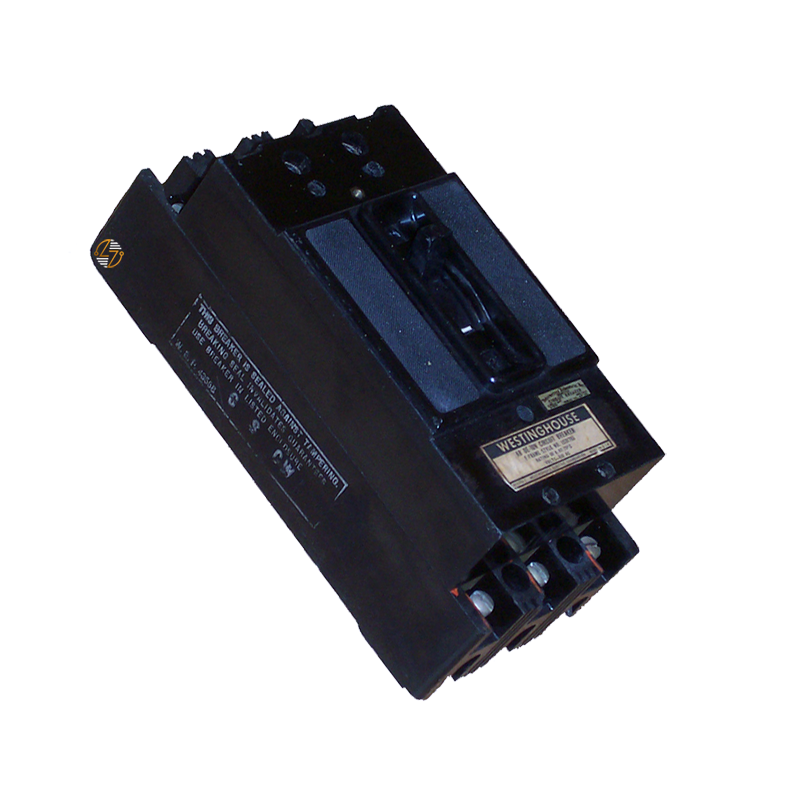

F3020 - 20Amp Circuit Breaker

F3020 - 20Amp Circuit Breaker

When you need to replace a compatible circuit breaker without changing your existing electrical setup, the F3020 offers the ratings and configuration your system was designed to use. This 20 Amp, 3-pole molded case circuit breaker is built on the F-Frame platform and uses a thermal-magnetic, non-interchangeable trip unit to provide protection from overloads and short circuits during normal operation. Rated for 14kA at 480VAC and designed for use in 40°C ambient environments, it's a practical choice for maintaining commercial and industrial electrical equipment. Load terminals are included, making installation more convenient when replacing an existing compatible breaker.

Key Features and Benefits

• 20 Amp current rating
• Three-pole design for compatible three-phase systems
• F-Frame molded case circuit breaker
• Type F construction
• Thermal-magnetic, non-interchangeable trip unit
• Rated for 40°C ambient operation
• Load terminals included
• Form, fit, and functional replacement for compatible equipment
• Built to last for long-term service in demanding environments


Technical Specifications

• Part Number: F3020

• Product Type: Molded Case Circuit Breaker

• Type: F

• Frame: F-Frame

• Amperage: 20 Amps

• Poles: 3

• Trip Unit: Thermal-magnetic, non-interchangeable

• Interrupting Capacity: 14kA @ 480VAC

• Voltage Rating: 480VAC

• Ambient Rating: 40°C

• Load Terminals: Included

• Dimensions:
  • Width: 4.13 in.
  • Height: 6.00 in.
  • Depth: 3.38 in.
• Approximate Shipping Weight: 8.50 lbs.


Material Compliance and Certifications

Material compliance and certification details have not been provided for this product. The F3020 is intended as a form, fit, and functional replacement for compatible equipment.

Where It Works Best

The F3020 is commonly found in commercial facilities, industrial buildings, manufacturing plants, distribution panels, switchboards, and motor control equipment that require a 20 Amp, 3-pole Type F circuit breaker rated for 480VAC service.
