F3015 - 15Amp Circuit Breaker

F3015 - 15Amp Circuit Breaker

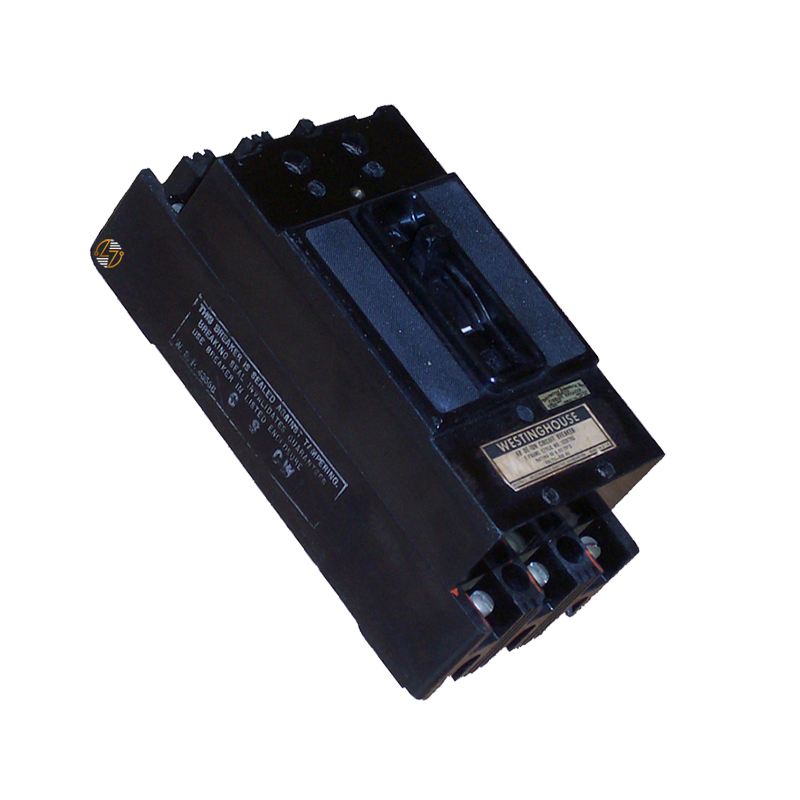

When you need a replacement breaker that matches the original equipment, the F3015 offers the ratings and configuration required for many existing 480VAC electrical systems. This 15 Amp, 3-pole Type F molded case circuit breaker features an F-Frame design with a thermal-magnetic, non-interchangeable trip unit, making it a practical choice for maintaining compatible installations without changing the original setup.

Designed for operation in 40°C ambient environments, the F3015 combines overload and short-circuit protection in a compact molded case design. It also comes with load terminals included, helping simplify installation when replacing a compatible breaker. Whether it's being installed in a commercial facility, an industrial plant, or an electrical distribution panel, this breaker is built to last and is intended to provide the same form, fit, and function as the original device. As with any replacement breaker, confirm that the frame size, electrical ratings, and mounting requirements match your equipment before installation.

Key Features and Benefits

• 15 Amp current rating
• Three-pole configuration for three-phase applications
• Type F molded case circuit breaker
• F-Frame construction
• Thermal-magnetic, non-interchangeable trip unit
• Rated for operation in 40°C ambient conditions
• 14kA interrupting capacity at 480VAC
• Load terminals included
• Form, fit, and functional replacement for compatible equipment
• Built to last in demanding commercial and industrial environments


Technical Specifications

• Part Number: F3015

• Product Type: Molded Case Circuit Breaker

• Type: F

• Frame: F-Frame

• Amperage: 15 Amps

• Poles: 3

• Trip Unit: Thermal-magnetic, non-interchangeable

• Voltage Rating: 480VAC

• Interrupting Capacity: 14kA @ 480VAC

• Ambient Rating: 40°C

• Load Terminals: Included

• Dimensions:
  • Width: 4.13 in.
  • Height: 6.00 in.
  • Depth: 3.38 in.
• Approximate Shipping Weight: 8.50 lbs.


Material Compliance and Certifications

The F3015 is manufactured for use as a form, fit, and functional replacement in compatible electrical systems. Based on the available specifications, no additional material compliance or certification information has been provided.

Where It Works Best

The F3015 is commonly found in commercial buildings, industrial facilities, manufacturing plants, distribution equipment, switchboards, and control panels that require a 15 Amp, 3-pole Type F circuit breaker rated for 480VAC service.
