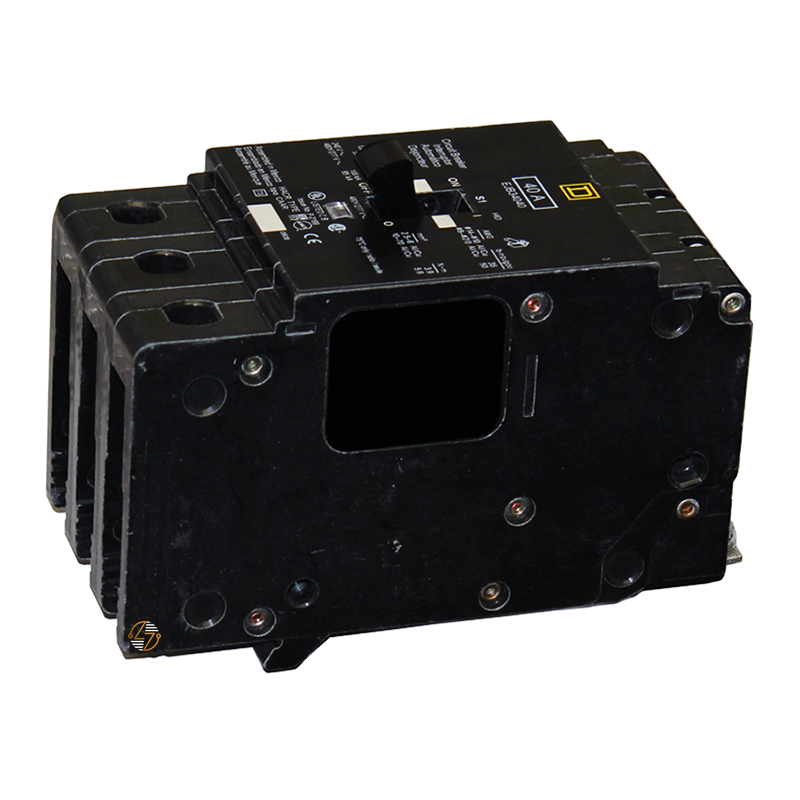

EJB34110 - 110Amp Circuit Breaker

EJB34110 - 110Amp Circuit Breaker

Introducing the Schneider Electric EJB34110, a high-performance mini circuit breaker designed for unparalleled reliability and safety in lighting panelboards. This E-Frame breaker, rated at 110A with a 3-pole configuration, is engineered to protect low-voltage electronics and ensure smooth operation in demanding environments. Its maximum voltage rating of 480Y/277 VAC and impressive interrupt rating of 100 kA at 120 VAC make it an ideal choice for robust overload and short circuit protection.

Key Features and Benefits:

• Long-Lasting Durability: Engineered to last up to 20 years, ensuring long-term reliability and peace of mind.
• High Interrupt Capacity: Capable of handling up to 100 kA at 120 VAC, providing superior protection in high-demand settings.
• Thermal-Magnetic Trip Unit: Features a thermal-magnetic trip unit that delivers precise and reliable protection against overloads and short circuits.
• Easy Installation: Bolt-on mounting design allows for straightforward installation directly into NF panelboards, ensuring secure and stable connections.
• HACR Rated: Meets HACR standards, making it suitable for HVAC applications.

Technical Specifications:

• Range of Product: 125 A Frame EDB-EGB-EJB
• Product or Component Type: Miniature circuit-breaker
• Device Short Name: EJB
• Module Type: E-Frame
• Trip Unit Rating: 2300 A
• Line Rated Current: 110 A
• Maximum Operating Voltage: 480Y/277 V AC
• AWG Gauge: AWG 12 to AWG 2/0 aluminum, AWG 14 to AWG 2/0 copper
• Breaking Capacity: 65 kA at 277 V AC, 100 kA at 240 V AC, 65 kA at 480Y/277 V AC, 100 kA at 120 V AC, 100 kA at 120/240 V AC
• Mounting Mode: Bolt-on
• Number of Poles: 3
• Height: 5.66 in (143.76 mm)
• Width: 2.94 in (74.68 mm)
• Depth: 4.05 in (102.87 mm)
• Net Weight: 4 lb (1.81 kg)
• Ambient Air Temperature for Operation: 104 å¡F (40 å¡C)

Material Compliance and Certifications:

• The EJB34110 is part of Schneider Electric‰۪s Green Premium‰ã¢ label, demonstrating a commitment to delivering products with best-in-class environmental performance. This breaker complies with the latest regulations and offers transparency on environmental impacts, ensuring it is both mercury-free and compliant with RoHS and REACh regulations. Additionally, it carries the cULus certification, validating its safety and performance standards.

Suitability:

• The EJB34110 is perfectly suited for use in lighting panelboards within commercial and industrial settings. Its robust construction and advanced features make it ideal for applications requiring reliable overload and short circuit protection. Whether for new installations or retrofits, this circuit breaker offers superior protection and ease of installation, ensuring your electrical systems operate safely and efficiently.
