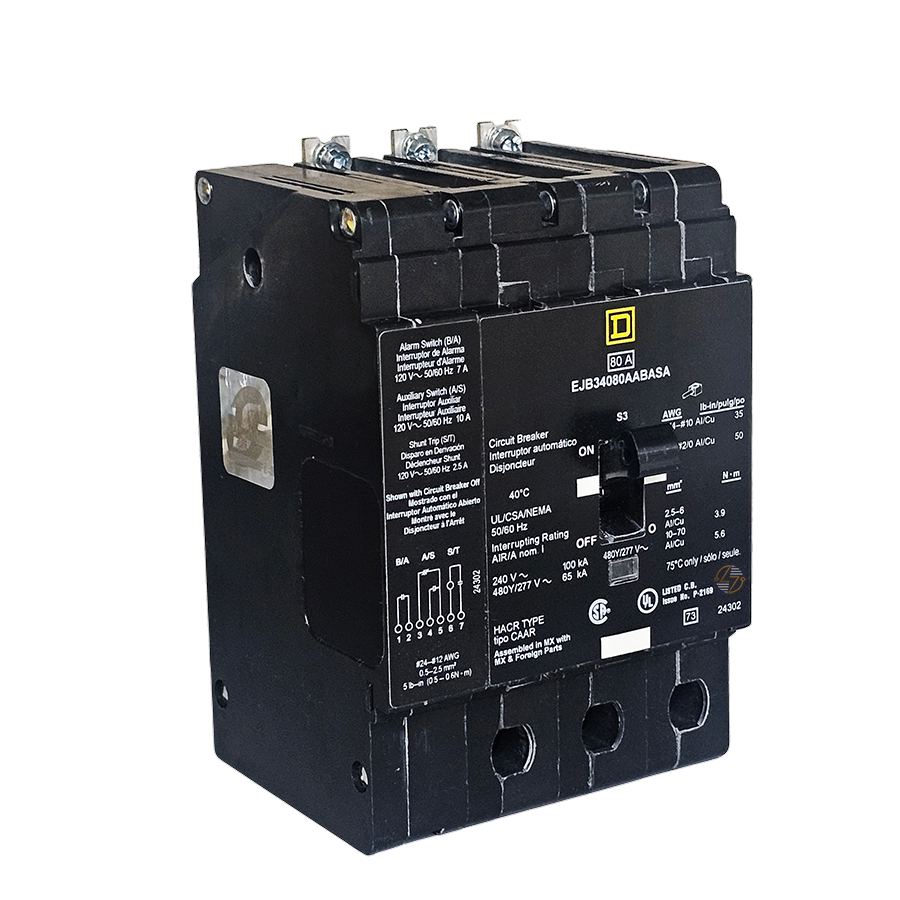

EJB34080AABASA - 80Amp Circuit Breaker

EJB34080AABASA - 80Amp Circuit Breaker

The Square D EJB34080AABASA is a high-performance, 3-pole, 80A thermal magnetic circuit breaker, meticulously designed for dependable protection in electrical distribution systems. Manufactured by Schneider Electric, this E-Frame breaker delivers superior overload and short-circuit protection with a maximum voltage rating of 480Y/277 VAC. Its bolt-on mounting design make it an excellent choice for NF panelboards and other electrical setups requiring precision, durability, and compliance with industry standards.

Key Features and Benefits

• Thermal-Magnetic Trip Unit: Provides accurate overload protection and instantaneous short-circuit response.
• Bolt-On Mounting Design: Simplifies installation and enhances compatibility with Square D NF panelboards.
• Load-Side Lugs Included: Facilitates secure and reliable connections for electrical systems.
• Visi-Trip‰ã¢ Indicator: Allows for quick identification of tripped breakers, reducing troubleshooting time and minimizing system downtime.


Technical Specifications

• Dimensions: 4.00" W x 5.69" L x 3.44" D

• Poles: 3

• A.I.C. Rating & Volts: 65kA @ 480 VAC; 100kA @ 240 VAC

• Amperes: 80

• Frame Type: EJB

• Trip Unit: Thermal-Magnetic

• Mounting Style: Bolt-On

• Operating Temperature: Calibrated for 40å¡C


Material Compliance and Certifications

• Certifications: UL Listed, CSA Certified, HID Rated, HACR Rated

• Environmental Compliance: Meets RoHS and REACh standards for safety and environmental responsibility.


Suitability

• The Square D EJB34080AABASA is tailored for NF panelboards, lighting systems, and high-demand electrical distribution setups. Its high interrupting capacity and durable construction make it ideal for both new installations and retrofit projects in residential, commercial, and industrial environments.

Incorporating this circuit breaker into your system ensures exceptional performance, compliance, and safety. With Square D‰۪s trusted quality, the EJB34080AABASA is an investment in reliability and peace of mind for your electrical infrastructure.
