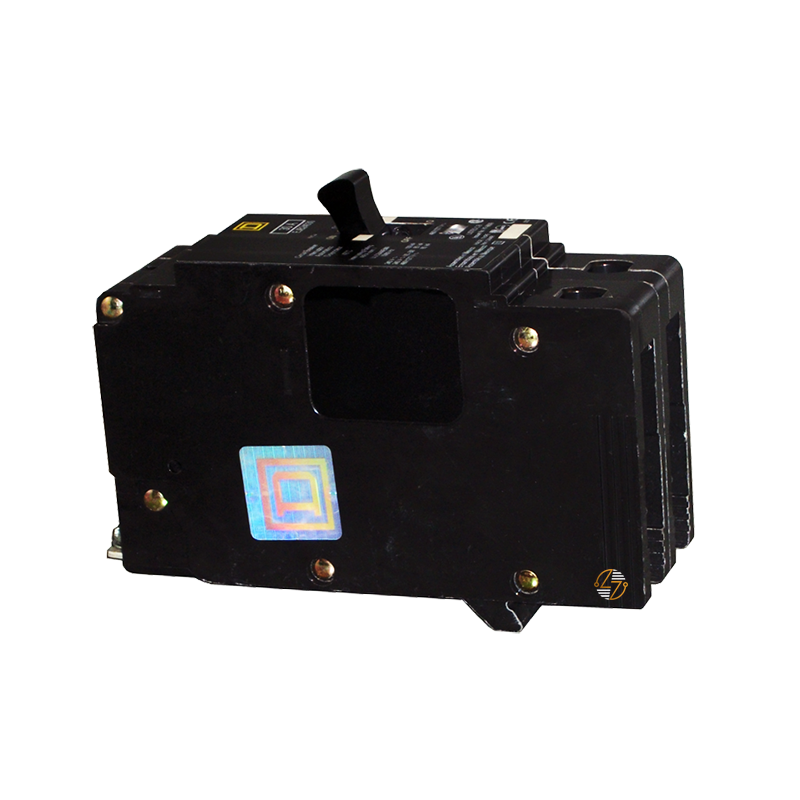

EJB24110 - 110Amp Circuit Breaker

EJB24110 - 110Amp Circuit Breaker

Upgrade your electrical systems with the Schneider Electric EJB24110, a high-performance miniature circuit breaker designed to deliver robust protection and reliability for Square D NF Panelboards. This E-Frame circuit breaker is rated at 110A, featuring a 2-pole design with an operating voltage of 480Y/277 VAC. With a breaking capacity of 100 kA max, this breaker is engineered to handle significant electrical loads, ensuring optimal safety and performance in demanding environments.

Key Features and Benefits:

• High Amperage Rating: With a 110A capacity, the EJB24110 is ideal for applications requiring substantial power distribution.
• Thermal-Magnetic Trip Unit: Ensures superior overload and short circuit protection, safeguarding your electrical systems from damage.
• Bolt-On Mounting: Designed for secure and straightforward installation in NF panelboards, providing stable and reliable performance.
• HACR Rated: Suitable for Heating, Air Conditioning, and Refrigeration (HACR) applications, making it versatile for various commercial and industrial settings.

Technical Specifications:

• Range of Product: 125 A Frame EDB-EGB-EJB
• Device Short Name: EJB
• Module Type: E-Frame
• Trip Unit Rating: 2300 A
• Line Rated Current: 110 A
• Maximum Operating Voltage: 480Y/277 V AC
• AWG Gauge: AWG 12...AWG 2/0 aluminium, AWG 14...AWG 2/0 copper
• Breaking Capacity: 65 kA at 277 V AC, 100 kA at 240 V AC, 65 kA at 480Y/277 V AC, 100 kA at 120 V AC, 100 kA at 120/240 V AC
• Electrical Connection: Lugs aluminium
• Holding Current: 1000 A
• Local Signalling: Trip indicator
• Mounting Mode: Bolt-on
• Number of Poles: 2
• Number of Spaces Required: 2
• Product Destination: NF panelboard
• Protection Type: Short-circuit, Overload
• Trip Unit Technology: Thermal-magnetic
• Breaking Capacity Code: J
• Tightening Torque: 34.52 lbf.in (3.9 N.m) for AWG 14...AWG 10, 49.56 lbf.in (5.6 N.m) for AWG 8...AWG 2/0
• Dimensions: Height: 5.66 in (143.76 mm), Width: 1.96 in (49.78 mm), Depth: 4.05 in (102.87 mm)
• Net Weight: 3 lb(US) (1.36 kg)

Material Compliance and Certifications:

• Certifications: cULus listed
• Ambient Air Temperature for Operation: 104 å¡F (40 å¡C)
• Sustainability: Green Premium‰ã¢ label, ensuring compliance with the latest environmental regulations and promoting circular and low-CO2 products.
• RoHS and REACh Compliance: Pro-active compliance with EU RoHS Directive and REACh Regulation, indicating a commitment to reducing hazardous substances and environmental impact.

Suitability:

• The Schneider Electric EJB24110 is perfect for use in lighting panelboards and is particularly suited for commercial and industrial applications where reliable circuit protection is crucial. Its robust design and high breaking capacity make it ideal for environments with significant electrical demands. Additionally, its HACR rating expands its suitability to HVAC systems, ensuring comprehensive protection across a variety of installations.

Enhance the safety and efficiency of your electrical systems with the Schneider Electric EJB24110 Miniature Circuit Breaker, designed to meet your most demanding power distribution needs.
