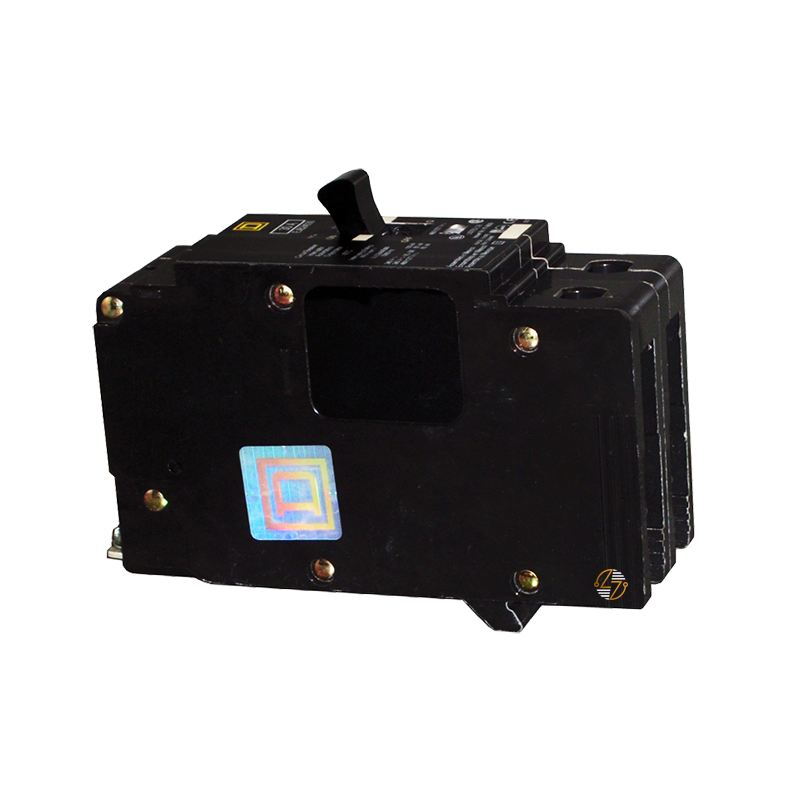

EJB24060 - 60A Circuit Breaker

EJB24060 60A Circuit Breaker

The EJB24060 miniature circuit breaker, part of the renowned E-frame series, is engineered to provide exceptional protection and performance in lighting panelboards. Designed with a robust thermal-magnetic trip unit, this 2-pole breaker is rated at 60A and operates at a voltage of 480Y/277VAC with a remarkable breaking capacity of 100kA. Its bolt-on mounting ensures secure installation in NF panelboards, making it an ideal choice for both residential and commercial applications.

Key Features and Benefits:

• Superior Protection: The EJB24060 is equipped with a thermal-magnetic trip unit, offering reliable protection against overloads and short circuits.
• High Breaking Capacity: With a maximum interrupt rating of 100kA, this breaker ensures safety and reliability in high-demand electrical systems.
• Bolt-On Mounting: Designed for easy installation, the bolt-on mounting provides a secure and stable connection in NF panelboards.
• Dual Pole Design: The 2-pole configuration enhances safety and efficiency by isolating circuits during maintenance or faults.
• UL Listed and CSA Certified: This breaker meets rigorous safety and performance standards, ensuring compliance with industry regulations.

Technical Specifications:

• Rated Current: 60A
• Voltage Rating: 480Y/277VAC
• Breaking Capacity: 100kA at 120VAC, 65kA at 480Y/277VAC
• Mounting: Bolt-on
• Dimensions: Height: 5.66 inches, Width: 1.96 inches, Depth: 4.05 inches
• Weight: 3 lbs (1.36 kg)
• Terminal Connection: Accepts AWG 12 to AWG 2/0 aluminum or AWG 14 to AWG 2/0 copper wires

Material Compliance and Certifications:

• The EJB24060 circuit breaker is not only high-performing but also environmentally conscious. It carries the Green Premium‰ã¢ label, reflecting Schneider Electric‰۪s commitment to delivering products with best-in-class environmental performance. This certification ensures compliance with the latest regulations, offering transparency on environmental impacts and promoting sustainability. The breaker is mercury-free, RoHS compliant, and meets REACh and China RoHS directives.

Suitability:

• The EJB24060 is ideally suited for use in lighting panelboards within residential, commercial, and industrial settings. Its high interrupt rating makes it suitable for environments with potential for high fault currents. Additionally, its compatibility with various accessories enhances its versatility and functionality, making it a reliable choice for ensuring electrical safety and efficiency.

Ensure your electrical systems are protected with the EJB24060 miniature circuit breaker, a testament to Schneider Electric's engineering excellence and commitment to safety.
