EJB14025 - 25A Circuit Breaker

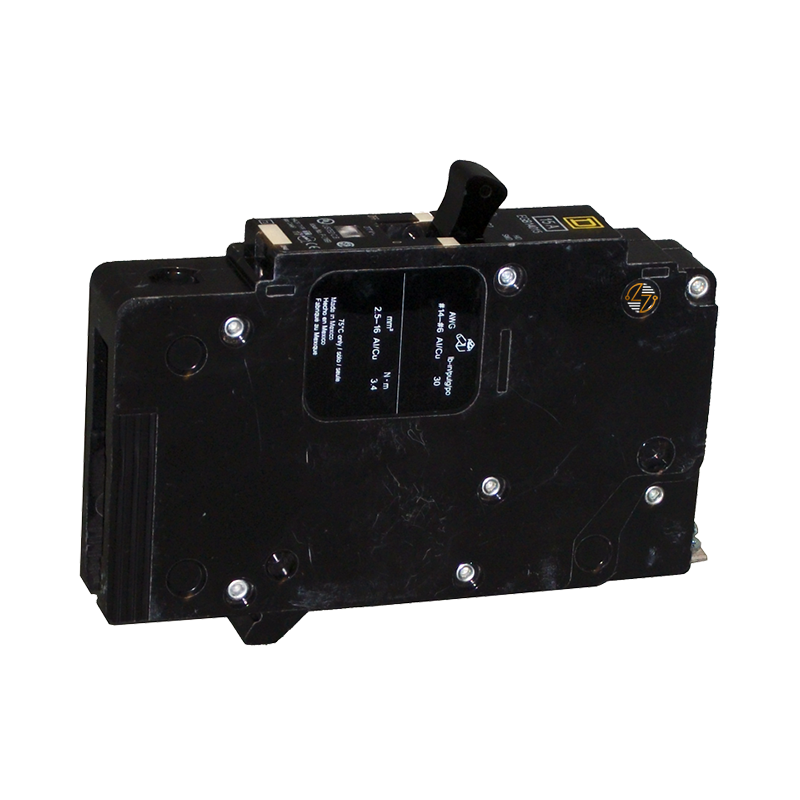

EJB14025 25A Circuit Breaker

Introducing the Schneider Electric EJB14025 Miniature Circuit Breaker, a high-performance solution designed for optimal electrical protection in lighting panelboards. This 25A, 1-pole breaker operates at 277VAC and boasts a robust 100kA max interrupt rating, ensuring superior protection against overloads and short circuits. The EJB14025 is part of the E-Frame series, renowned for its reliability and advanced features, making it an ideal choice for residential, commercial, and industrial applications where safety and efficiency are paramount.

Key Features and Benefits:

• High Interrupt Rating: With a 100kA max interrupt rating at 120VAC, this circuit breaker ensures exceptional protection, minimizing the risk of electrical faults.
• Thermal-Magnetic Trip Unit: Provides precise and reliable tripping, enhancing overall safety and performance.
• Bolt-On Mounting: Facilitates easy and secure installation, reducing maintenance time and costs.
• Compact E-Frame Design: Suitable for NF panelboards, offering space-saving benefits while delivering powerful protection.

Technical Specifications:

• Current Rating: 25A
• Voltage Rating: 277VAC
• Interrupt Rating: 100kA at 120VAC, 65kA at 277VAC
• Number of Poles: 1
• Dimensions: Height: 5.66 in (143.76 mm), Width: 0.98 in (24.89 mm), Depth: 4.05 in (102.87 mm)
• Weight: 2 lb (0.91 kg)
• Connection: Lug terminals for both aluminum (AWG 12-6) and copper (AWG 14-6) wires
• Mounting Mode: Bolt-on
• Trip Unit Rating: 875A

Material Compliance and Certifications:

• Green Premium‰ã¢ Label: Signifies top-tier environmental performance and compliance.
• RoHS and REACh Compliant: Ensures reduced hazardous substances and adherence to environmental standards.
• UL Listed: UL Listed for high-intensity discharge applications.
• CSA Certified: CSA Certified for added safety assurance.

Suitability:

• The Schneider Electric EJB14025 Miniature Circuit Breaker is designed for use in Square D NF panelboards, providing reliable protection for lighting circuits in various settings, including residential, commercial, and industrial environments. Its high interrupt capacity and durable design make it ideal for safeguarding circuits from overloads and short circuits, ensuring safety and operational efficiency in any electrical system.
