EHD2100L - 100Amp Circuit Breaker

EHD2100L - 100Amp Circuit Breaker

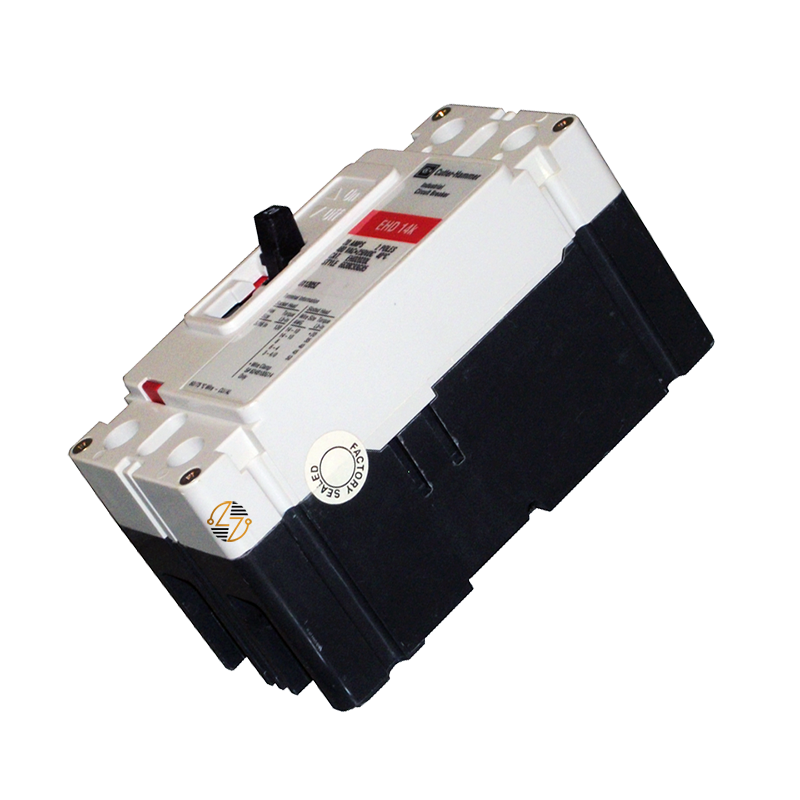

The Eaton EHD2100L Series C molded case circuit breaker is a complete 2-pole, 100-amp circuit breaker designed to provide dependable overcurrent protection in compatible commercial and industrial electrical distribution systems. Built on Eaton's proven F-frame platform, this breaker features a T186 thermal-magnetic trip unit that responds to overloads and short circuits, helping safeguard connected equipment and electrical circuits. The EHD2100L is equipped with line and load terminals, making it suitable for installations requiring this terminal configuration while maintaining compatibility with designated Eaton Series C equipment. Before installation, always verify the catalog number, frame size, pole configuration, amperage, interrupting rating, trip unit, and terminal style to ensure proper compatibility with your existing electrical equipment.

Key Features and Benefits

• 100 Amp current rating for compatible commercial and industrial electrical applications.
• Two-pole molded case circuit breaker for protecting two energized conductors.
• Genuine Eaton Series C complete breaker built on the F-frame platform.
• T186 thermal-magnetic trip unit provides protection against overloads and short circuits.
• Line and load terminals for installations requiring connection from either side.
• Rated for 50/60 Hz AC electrical systems.
• UL Listed to meet recognized electrical safety requirements.
• Built to last for dependable service in properly maintained electrical systems.
• Designed as a form-fit-and-function replacement for compatible Eaton Series C applications.

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: EHD2100L

• UPC: 786679850930

• Product Type: Complete Molded Case Circuit Breaker

• Circuit Breaker Type: EHD

• Circuit Breaker Frame Type: Complete Breaker

• Frame: F

• Amperage Rating: 100A

• Number of Poles: 2

• Trip Type: T186 Thermal-Magnetic

• Frequency Rating: 50/60 Hz

• Interrupt Rating:
  • 18 kAIC at 240 Vac
  • 14 kAIC at 480 Vac
• Terminals: Line and Load

• Dimensions:
  • Width: 2.75 in.
  • Length: 6.00 in.
  • Depth: 3.38 in.
• Weight: 3 lb

• Certification: UL Listed


Material Compliance and Certifications

The Eaton EHD2100L is UL Listed and manufactured to Eaton's specifications for the Series C family of molded case circuit breakers. It is intended for installation in compatible electrical distribution equipment designed to accept an EHD F-frame complete breaker. To help ensure proper fit and operation, verify that the catalog number, frame type, amperage, pole configuration, interrupting rating, trip unit, and terminal configuration match the original equipment before installation.

Where It Works Best

The EHD2100L is well suited for maintaining compatible electrical distribution systems in commercial buildings, industrial facilities, manufacturing plants, institutional campuses, and similar environments. It is commonly used in compatible panelboards, switchboards, motor control centers, HVAC systems, and branch circuit applications that require a 100 Amp, 2-pole Eaton Series C F-frame molded case circuit breaker with line and load terminals.
