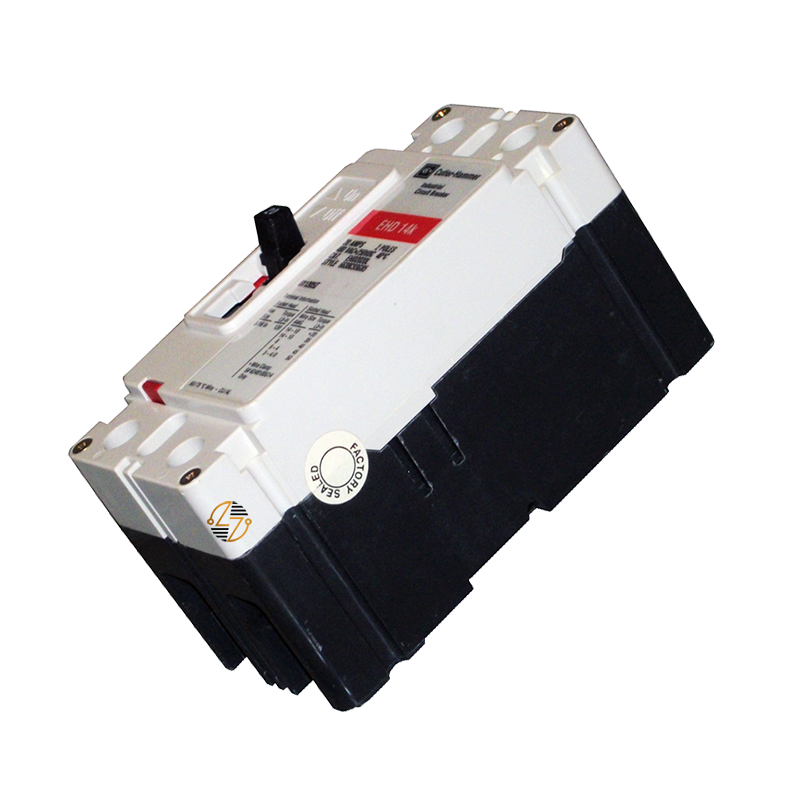

EHD2100 - 100Amp Circuit Breaker

EHD2100 - 100Amp Circuit Breaker

When dependable circuit protection is required for compatible electrical distribution systems, the Eaton EHD2100 Series C molded case circuit breaker provides the ratings and configuration needed for many commercial and industrial applications. This complete 2-pole, 100-amp molded case circuit breaker is built on Eaton's proven F-frame platform and features a T186 thermal-magnetic trip unit to help protect electrical equipment from overloads and short circuits. Designed for use as a form, fit, and functional replacement in compatible legacy systems, the EHD2100 includes load-side terminals, operates on 50/60 Hz AC systems, and offers interrupting ratings of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac.

Key Features and Benefits

• Provides 100 Amp overcurrent protection for compatible commercial and industrial electrical systems.
• Two-pole configuration designed for applications requiring protection across two conductors.
• Genuine Eaton Series C F-frame, complete molded-case circuit breaker.
• T186 thermal-magnetic trip unit helps protect against overloads and short circuits.
• Load-side terminals for installations designed to accommodate this terminal configuration.
• Rated for 50/60 Hz AC electrical systems.
• UL Listed for compliance with applicable safety standards.
• Built to last for long-term service in properly maintained electrical systems.
• Designed as a form-, fit-, and function-replacement for compatible Eaton Series C equipment.

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: EHD2100

• UPC: 786679317518

• Product Type: Complete Molded Case Circuit Breaker

• Circuit Breaker Type: EHD

• Frame Type: Complete Breaker

• Frame: F

• Amperage Rating: 100A

• Number of Poles: 2

• Trip Type: T186 Thermal-Magnetic

• Frequency Rating: 50/60 Hz

• Interrupt Rating:
  • 18 kAIC at 240 Vac
  • 14 kAIC at 480 Vac
• Terminals: Load Side

• Dimensions:
  • Width: 2.75 in.
  • Length: 6.00 in.
  • Depth: 3.38 in.
• Weight: 3 lb

• Certification: UL Listed


Material Compliance and Certifications

The Eaton EHD2100 is UL Listed and manufactured to Eaton's specifications for the Series C family of molded case circuit breakers. It is intended for installation in compatible electrical distribution equipment designed to accept an EHD F-frame complete breaker. To help ensure proper fit and operation, verify that the catalog number, frame type, amperage, pole configuration, interrupting capacity, trip unit, and terminal configuration match the original equipment before installation.

Where It Works Best

The EHD2100 is well suited for maintaining compatible electrical distribution systems in commercial buildings, industrial facilities, manufacturing plants, institutional campuses, and other demanding environments. It is commonly installed in compatible panelboards, switchboards, motor control centers, HVAC equipment, and branch circuit applications that require a 100 Amp, 2-pole Eaton Series C F-frame molded case circuit breaker with load-side terminals.
