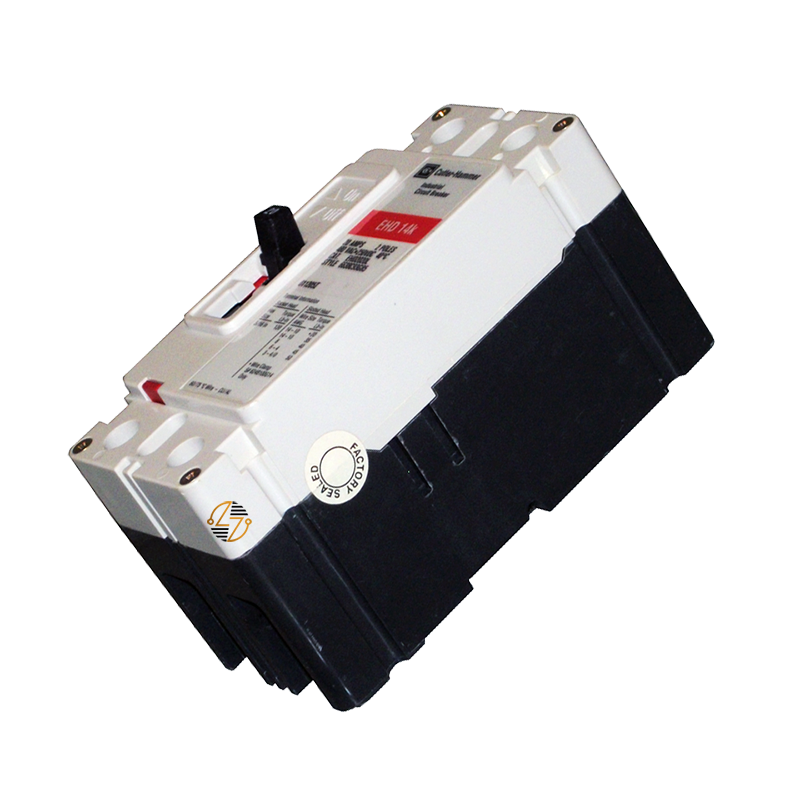

EHD2090L 90A Circuit Breaker

EHD2090L - 90 Amp Circuit Breaker

If you’re working on an existing system and need a breaker that fits right without second-guessing, the Eaton EHD2090L is a straightforward choice. It’s a 90-amp, two-pole molded-case circuit breaker designed to match Eaton Series C equipment, so you won’t run into compatibility issues or forced adjustments during installation. This unit is built for environments where consistency matters—commercial buildings, light industrial setups, and anywhere reliable circuit protection is part of daily operations. It handles overload and short-circuit protection the way you’d expect, while the compact F-frame design makes it easier to work into existing panel space. The line and load terminals are clearly labeled, which helps speed up installation or replacement in the field. It’s not about bells and whistles—it’s about having a breaker that fits, connects properly, and does its job over the long haul. That’s exactly where the EHD2090L comes in.

Key Features and Benefits

• 90 amp rating: suited for common commercial and industrial circuit protection needs
• Two-pole configuration: for handling 240V applications
• Designed to match Eaton Series C systems: for proper fit and function
• Molded case design: helps shield internal components
• Line and load terminals: allow for clean, correct connections
• Compact footprint: makes it easier to install in existing equipment
• Built to last: in working environments where reliability matters

Technical Specifications

• Catalog Number: EHD2090L
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Frame: F Frame
• Amperage Rating: 90 A
• Poles: 2
• Trip Type: T186
• Frequency: 50/60 Hz
• Interrupt Rating:
  • 14 kAIC at 480 VAC
  • 18 kAIC at 240 VAC
• Terminals: Line and Load
• Dimensions: 3.38 in (D) x 6 in (H) x 2.75 in (W)
• Weight: 3 lb

Material Compliance and Certifications

• UL Listed: meeting recognized safety standards
• Manufacturing Compliance: Manufactured in line with industry requirements for circuit protection equipment

Where It Works Best

You’ll typically see the EHD2090L used in commercial facilities, industrial spaces, and institutional buildings that already rely on Eaton Series C gear. It’s a practical option for panelboards and distribution systems where maintaining the original setup is important and swapping components needs to be simple and accurate.
