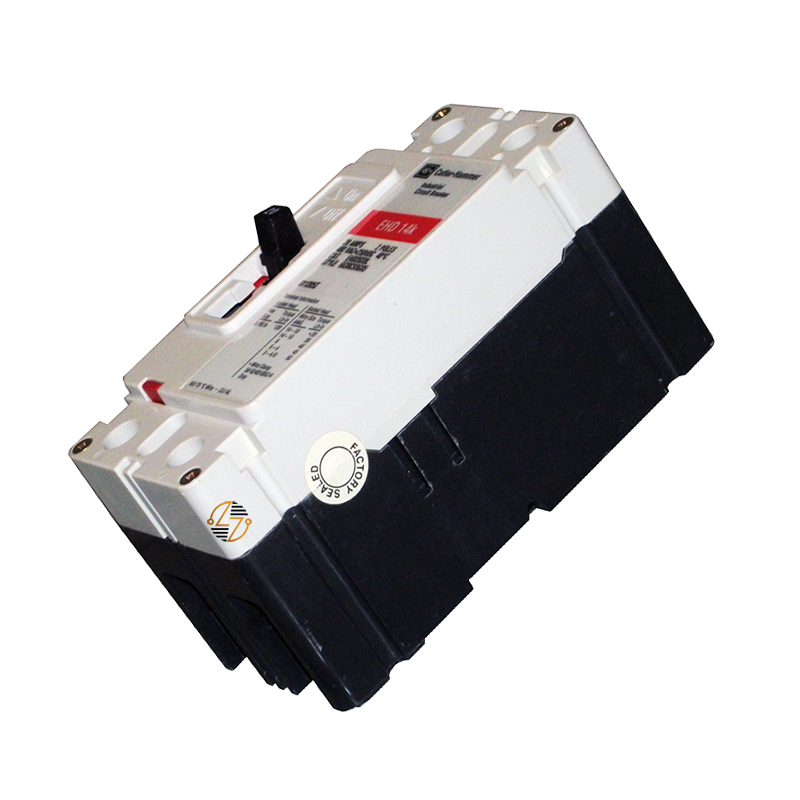

EHD2080L - 80Amp Circuit Breaker

EHD2080L - 80Amp Circuit Breaker

The Eaton EHD2080L Series C molded case circuit breaker is engineered to provide superior protection for your electrical systems, ensuring safety and reliability in a wide range of applications. This high-performance breaker, part of Eaton's renowned Series C, features a robust F-frame design and is equipped with both fixed thermal and magnetic trip types. With a two-pole configuration, the EHD2080L handles a current rating of 80A, making it suitable for various industrial and commercial settings.

Key Features and Benefits:

• High Interrupting Capacity: The EHD2080L boasts an interrupting capacity of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac, providing robust protection against electrical faults.
• Fixed Thermal and Magnetic Trip: Ensures reliable operation and protection by combining both thermal and magnetic trip mechanisms, safeguarding against overloads and short circuits.
• Versatile Applications: Suitable for a broad range of industrial and commercial applications, thanks to its compatibility with both 50 and 60 Hz systems.
• Durable Construction: Built to withstand harsh environments, the EHD2080L offers a reliable solution for demanding electrical systems.

Technical Specifications:

• Amperage Rating: 80 A
• Interrupt Rating: 18 kAIC at 240 Vac, 14 kAIC at 480 Vac
• Trip Type: Fixed thermal, fixed magnetic
• Frame Type: F-frame
• Frequency Rating: 50/60 Hz
• Poles: Two-pole
• Dimensions: 3.38 in (Depth) x 6 in (Height) x 2.75 in (Width)
• Weight: 3 lb

Material Compliance and Certifications:

• Compliance: The Eaton EHD2080L circuit breaker is UL listed, ensuring it meets stringent safety and performance standards. Eaton provides a comprehensive warranty, assuring users of the product's quality and reliability. The breaker is designed and manufactured in compliance with industry standards, ensuring it meets the necessary regulatory requirements for safety and performance.

Suitability:

• The EHD2080L is ideal for use in various industrial and commercial settings where reliable circuit protection is essential. Its high interrupting capacity and robust construction make it suitable for protecting electrical systems in manufacturing plants, commercial buildings, and other high-demand environments. The breaker’s compact design allows for easy integration into existing electrical panels, providing a space-saving solution without compromising on performance.

By choosing the Eaton EHD2080L circuit breaker, you are investing in a product that delivers exceptional protection, reliability, and performance, ensuring the safety and efficiency of your electrical systems.
