EHD2070L - 70Amp Circuit Breaker

EHD2070L - 70Amp Circuit Breaker

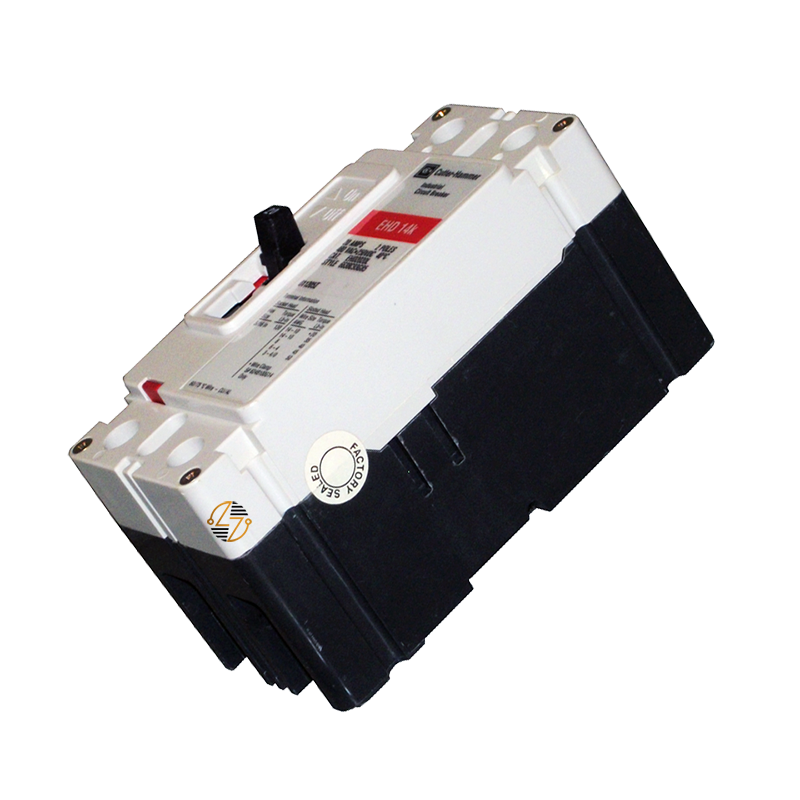

When you need a direct replacement for a compatible Eaton Series C molded-case circuit breaker, the Eaton EHD2070L delivers the ratings and configuration your electrical system was originally designed for. This 70 Amp, 2-pole complete breaker features an F-frame design with a T186 thermal-magnetic trip unit, helping protect circuits from overloads and short circuits while maintaining compatibility with existing equipment. Designed for 50/60 Hz electrical systems, the EHD2070L includes line and load terminals and offers interrupting ratings of 18 kAIC at 240 VAC and 14 kAIC at 480 VAC. Built to last and UL Listed, this breaker is commonly used in commercial and industrial power distribution systems where maintaining the original equipment specifications is important.

Key Features and Benefits

• Genuine Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD2070L
• 70 Amp current rating
• Two-pole configuration
• T186 thermal-magnetic trip unit for overload and short-circuit protection
• Complete F-frame breaker
• Line and load terminal configuration
• Rated for 50/60 Hz systems
• UL Listed
• Built to last in demanding commercial and industrial applications
• Designed as a form, fit, and functional replacement for compatible Eaton Series C equipment

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: EHD2070L

• UPC: 786679850916

• Product Type: Molded Case Circuit Breaker

• Circuit Breaker Type: EHD

• Frame: F Frame

• Breaker Style: Complete Breaker

• Amperage: 70A

• Poles: 2

• Trip Type: T186 Thermal-Magnetic

• Frequency: 50/60 Hz

• Interrupt Rating:
  • 18 kAIC @ 240 VAC
  • 14 kAIC @ 480 VAC
• Terminals: Line and Load

• Dimensions:
  • Width: 2.75"
  • Length: 6.00"
  • Depth: 3.38"
• Weight: 3 lbs.

• Certification: UL Listed


Material Compliance and Certifications

The Eaton EHD2070L is UL Listed and manufactured to Eaton's specifications for the Series C family of molded case circuit breakers. It is intended for use in compatible electrical distribution equipment designed to accept an EHD F-frame complete breaker. To ensure proper installation and operation, confirm that the catalog number, frame size, amperage, pole configuration, interrupting capacity, trip type, and terminal layout match the original equipment.

Where It Works Best

The EHD2070L is well-suited for maintaining and servicing compatible electrical distribution systems in commercial buildings, manufacturing facilities, industrial plants, institutional campuses, and other demanding environments. It is commonly installed in compatible panelboards, switchboards, motor control centers, HVAC equipment, and branch circuit applications that require a 70 Amp, 2-pole Eaton Series C F-frame molded case circuit breaker.
