EHD2060 - 60Amp Circuit Breaker

EHD2060 - 60Amp Circuit Breaker

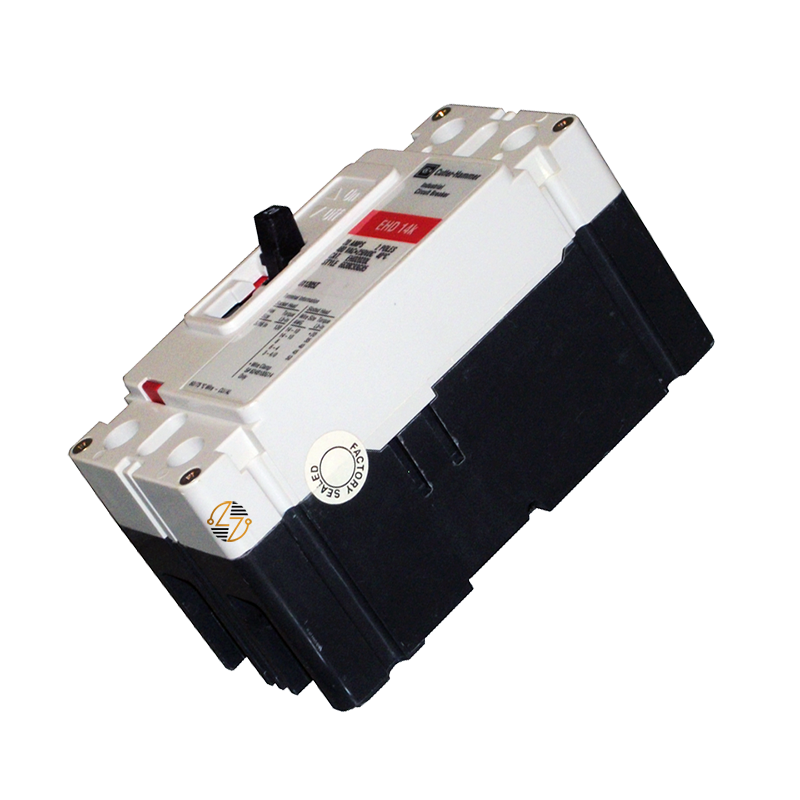

When you're maintaining or repairing an existing electrical distribution system, selecting the correct replacement circuit breaker is critical to keeping your equipment operating as designed. The Eaton EHD2060 Series C molded case circuit breaker is a 60 Amp, 2-pole complete breaker built on Eaton's F-frame platform and equipped with a T186 thermal-magnetic trip unit. Designed as a form, fit, and functional replacement for compatible Eaton Series C installations, the EHD2060 helps protect electrical circuits from overloads and short circuits while preserving the original system configuration. Its load-side terminal configuration, 50/60 Hz frequency rating, and interrupting capacities of 18 kAIC at 240 VAC and 14 kAIC at 480 VAC make it well suited for many commercial and industrial electrical systems.

Key Features and Benefits

• Genuine Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD2060
• 60 Amp current rating
• Two-pole configuration
• T186 thermal-magnetic trip unit provides overload and short-circuit protection
• Complete EHD breaker with F-frame construction
• Load-side terminals for compatible equipment requirements
• Rated for 50/60 Hz electrical systems
• UL Listed for recognized safety compliance
• Built to last for dependable service in compatible electrical systems
• Designed as a form, fit, and functional replacement for compatible Eaton Series C equipment

Technical Specifications

• Manufacturer: Eaton

• Series: Series C

• Catalog Number: EHD2060

• UPC: 786679317488

• Product Type: Molded Case Circuit Breaker

• Circuit Breaker Type: EHD

• Frame Type: F Frame

• Circuit Breaker Frame: Complete Breaker

• Amperage Rating: 60 Amps

• Number of Poles: 2

• Trip Type: T186 Thermal-Magnetic

• Frequency Rating: 50/60 Hz

• Interrupting Rating:
  • 18 kAIC @ 240 VAC
  • 14 kAIC @ 480 VAC
• Terminal Configuration: Load Side

• Dimensions:
  • Width: 2.75 in.
  • Length: 6.00 in.
  • Depth: 3.38 in.
• Weight: 3 lbs.

• Certification: UL Listed


Material Compliance and Certifications

The Eaton EHD2060 is UL Listed and manufactured to Eaton's specifications for the Series C family of molded case circuit breakers. It is intended for use in compatible electrical equipment designed to accept an EHD F-frame complete breaker. Before installation, confirm that the catalog number, frame size, amperage, pole configuration, trip type, interrupting capacity, terminal configuration, and physical dimensions match the original equipment specifications.

Where It Works Best

The Eaton EHD2060 is commonly used in commercial buildings, industrial facilities, manufacturing plants, institutional properties, and other electrical distribution systems requiring a 60 Amp, 2-pole molded case circuit breaker. It is suitable for compatible panelboards, switchboards, motor control equipment, HVAC systems, machinery, and branch circuit applications originally designed for an Eaton Series C EHD F-frame breaker.
