EHD2030L - 30Amp Circuit Breaker

EHD2030L - 30Amp Circuit Breaker

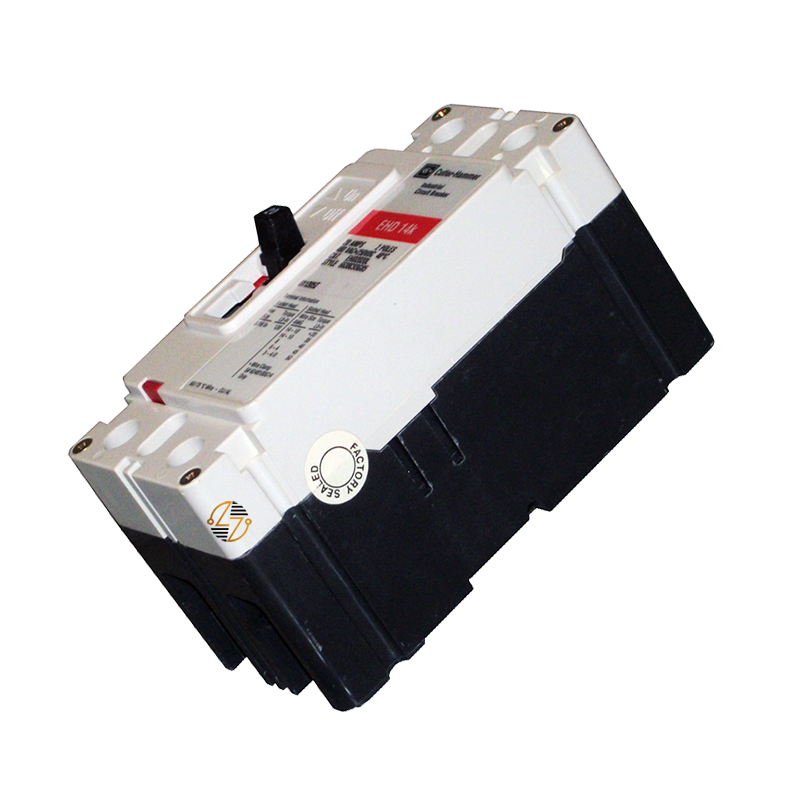

When you need a dependable replacement breaker that matches your existing electrical system, the Eaton EHD2030L Series C molded case circuit breaker delivers the form, fit, and function your application requires. Rated at 30 Amps with a 2-pole configuration, this complete F-frame EHD breaker is designed to help protect electrical circuits from overloads and short circuits using its T186 thermal-magnetic trip unit. Whether you're maintaining commercial equipment, servicing an industrial facility, or replacing a breaker in compatible electrical distribution equipment, the EHD2030L is built to last and engineered to meet Eaton's original specifications.

Key Features and Benefits

• Genuine Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD2030L
• 30 Amp current rating
• Two-pole configuration
• T186 thermal-magnetic trip unit helps provide overload and short-circuit protection
• Complete EHD breaker with F-frame construction
• Line and load terminal configuration
• Rated for 50/60 Hz electrical systems
• UL Listed for recognized safety compliance
• Built to last for long-term use in compatible electrical systems
• Designed as a form, fit, and functional replacement for compatible Eaton Series C applications

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: EHD2030L

• UPC: 786679411360

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Circuit Breaker Type: EHD

• Frame Type: Complete Breaker

• Frame Size: F

• Amperage Rating: 30 Amps

• Number of Poles: 2

• Trip Unit: T186 Thermal-Magnetic

• Frequency Rating: 50/60 Hz

• Interrupting Rating:
  • 18kAIC @ 240 VAC
  • 14kAIC @ 480 VAC
• Terminal Configuration: Line and Load

• Dimensions:
  • Width: 2.75 inches
  • Length: 6.00 inches
  • Depth: 3.38 inches
• Weight: 3.0 lbs.

• Certification: UL Listed


Material Compliance and Certifications

The Eaton EHD2030L is UL Listed and manufactured to Eaton's specifications for the Series C family of molded case circuit breakers. It is intended for use in compatible electrical systems designed to accept an EHD F-frame complete breaker. For proper application, verify that the catalog number, frame size, amperage, pole count, interrupting capacity, terminal configuration, and physical dimensions correspond with the original equipment.

Where It Works Best

The Eaton EHD2030L is commonly found in commercial buildings, industrial facilities, manufacturing plants, institutional properties, and other electrical distribution systems where a 30 Amp, 2-pole F-frame molded case circuit breaker is required. It's a practical choice for compatible panelboards, switchboards, HVAC equipment, motor control centers, machinery, and branch circuit protection that were originally designed for Eaton Series C EHD breakers.
