EHD2030 - 30Amp Circuit Breaker

EHD2030 - 30Amp Circuit Breaker

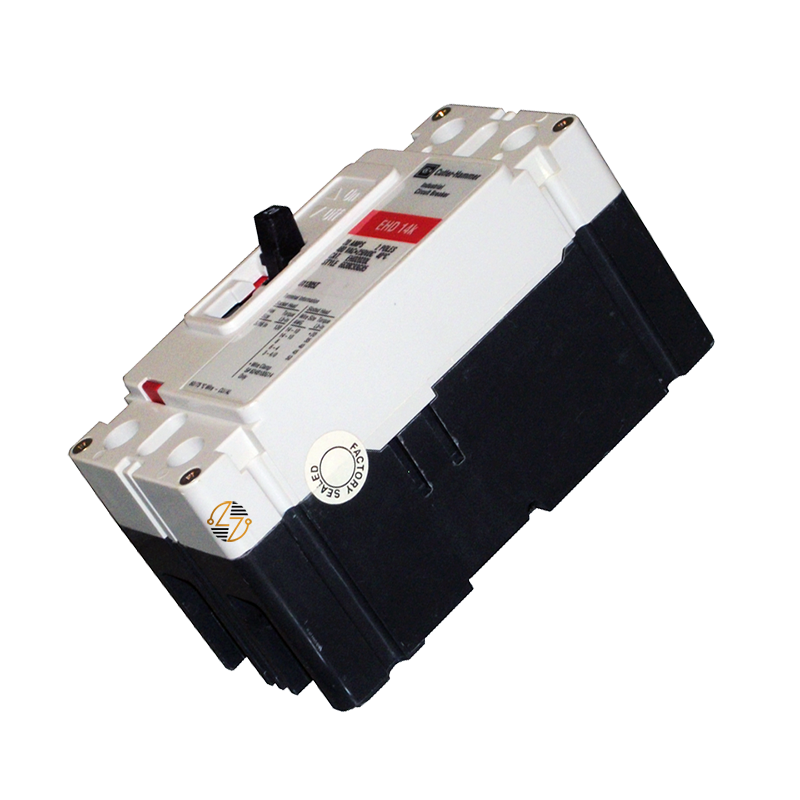

When you need a replacement circuit breaker that meets the original equipment specifications, the Eaton EHD2030 Series C molded case circuit breaker is designed to provide the proper form, fit, and function for compatible electrical distribution systems. Rated at 30 Amps with a 2-pole configuration, the EHD2030 features a T186 thermal-magnetic trip unit to help protect circuits from overloads and short circuits while maintaining the intended operation of the existing installation. This complete EHD F-frame molded case circuit breaker is built to last and is commonly used in commercial and industrial electrical systems where maintaining compatibility with the original equipment is essential.

Key Features and Benefits

• Genuine Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD2030
• 30 Amp current rating
• Two-pole configuration
• T186 thermal-magnetic trip unit helps provide overload and short-circuit protection
• Complete EHD breaker with F-frame construction
• Load-side terminal configuration
• Rated for 50/60 Hz electrical systems
• UL Listed for recognized safety compliance
• Built to last for dependable service in compatible electrical systems
• Designed as a form, fit, and functional replacement for compatible Eaton Series C applications

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: EHD2030

• UPC: 786679317440

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Circuit Breaker Type: EHD

• Frame Type: Complete Breaker

• Frame Size: F

• Amperage Rating: 30 Amps

• Number of Poles: 2

• Trip Unit: T186 Thermal-Magnetic

• Frequency Rating: 50/60 Hz

• Interrupting Rating:
  • 18kAIC @ 240 VAC
  • 14kAIC @ 480 VAC
• Terminal Configuration: Load Side

• Dimensions:
  • Width: 2.75 inches
  • Length: 6.00 inches
  • Depth: 3.38 inches
• Weight: 3.0 lbs.

• Certification: UL Listed

Material Compliance and Certifications

The Eaton EHD2030 is UL Listed and manufactured to Eaton's specifications for the Series C family of molded case circuit breakers. It is intended for use in compatible electrical equipment designed for an EHD F-frame complete breaker. To ensure proper operation, confirm that the catalog number, frame size, amperage, pole configuration, interrupting rating, terminal style, and physical dimensions match the requirements of your existing system.

Where It Works Best

The Eaton EHD2030 is commonly used in commercial buildings, industrial facilities, manufacturing plants, institutional properties, and other electrical distribution systems that require a 30 Amp, 2-pole molded case circuit breaker. It is suitable for compatible panelboards, switchboards, motor control equipment, HVAC systems, machinery, and branch circuit applications originally designed for an Eaton Series C EHD breaker.
