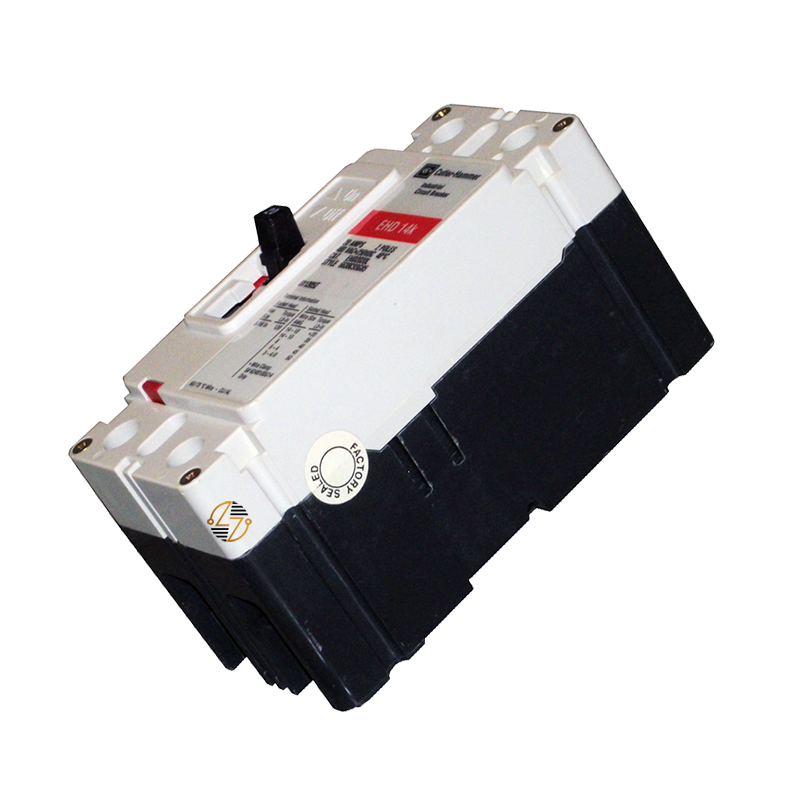

EHD2025 - 25Amp Circuit Breaker

EHD2025 - 25Amp Circuit Breaker

Enhance your electrical systems with the Eaton EHD2025 Circuit Breaker, a top-tier solution designed for robust performance and reliability. This molded case circuit breaker from Eaton’s renowned Series C is an F-frame type, delivering exceptional protection with a fixed thermal and fixed magnetic trip mechanism. It is engineered to handle a current rating of 25A, making it ideal for a wide range of applications. This two-pole circuit breaker supports 50/60 Hz frequency and ensures high performance with an interrupt rating of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac, safeguarding your electrical circuits from overloads and short circuits.

Key Features and Benefits:

• High Interrupt Rating: Provides superior protection with an interrupt capacity of 18 kAIC at 240 Vac and 14 kAIC at 480 Vac, ensuring safety in diverse electrical environments.
• Reliable Performance: Equipped with fixed thermal and magnetic trips, delivering consistent and dependable operation to prevent electrical failures.
• Two-Pole Configuration: Enhances protection with dual-pole design, ensuring comprehensive circuit isolation and fault detection.
• Versatile Frequency Support: Operates efficiently at 50/60 Hz, suitable for various international applications.

Technical Specifications:

• Series: Eaton Series C
• Frame Type: F-frame
• Trip Type: Fixed Thermal, Fixed Magnetic
• Poles: Two
• Current Rating: 25A
• Interrupt Rating: 18 kAIC at 240 Vac, 14 kAIC at 480 Vac
• Frequency Rating: 50/60 Hz
• Dimensions: 3.38" (Depth) x 6" (Height) x 2.75" (Width)
• Weight: 3 lbs

Material Compliance and Certifications:

• UL Listed: The Eaton EHD2025 Circuit Breaker adheres to stringent safety and quality standards, ensuring optimal performance and reliability. It is UL Listed, providing assurance of its compliance with industry-leading safety regulations. The product is backed by Eaton’s commitment to quality, with a warranty of one year from the date of installation or 18 months from the date of shipment, whichever comes first.

Suitability:

• The Eaton EHD2025 is ideal for both residential and commercial electrical applications where reliable circuit protection is paramount. Its robust design and high interrupting capacity make it suitable for a variety of settings, from standard household circuits to more demanding industrial environments. Whether you are upgrading existing systems or installing new ones, the EHD2025 offers the reliability and performance needed to keep your electrical systems running smoothly and safely.
