EHD2020L - 20Amp Circuit Breaker

EHD2020L - 20Amp Circuit Breaker

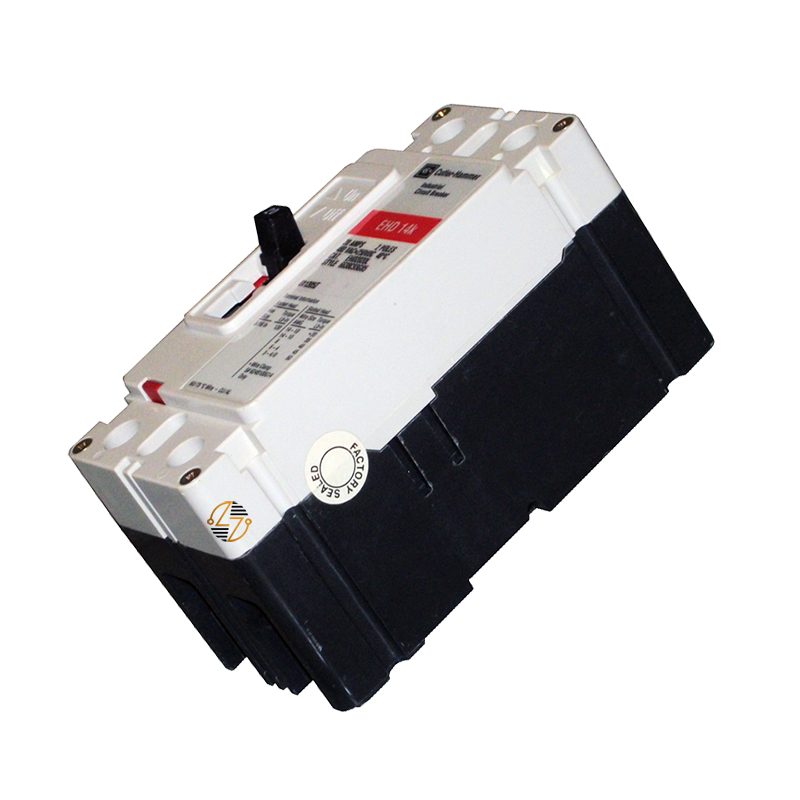

When you need a dependable replacement breaker for an existing electrical system, the Eaton EHD2020L Series C molded-case circuit breaker delivers the form, fit, and function your equipment was originally designed for. Rated at 20 Amps with a 2-pole configuration, this complete EHD frame breaker helps protect electrical circuits from overloads and short circuits using Eaton's T186 thermal-magnetic trip unit. Whether you're performing routine maintenance, replacing a failed breaker, or keeping legacy equipment in service, the EHD2020L is built to last and compatible with approved Eaton Series C applications.

Key Features and Benefits

• Genuine Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD2020L
• 20 Amp current rating
• Two-pole configuration
• T186 thermal-magnetic trip unit protects against overloads and short circuits
• Complete EHD frame breaker for compatible Eaton equipment
• Line and load terminals simplify installation in approved applications
• Rated for 50/60 Hz electrical systems
• UL Listed for recognized safety compliance
• Built to last for long-term service in compatible electrical systems
• Designed as a form, fit, and functional replacement for existing Eaton installations

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: EHD2020L

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Circuit Breaker Type: EHD

• Frame Type: Complete Breaker

• Frame Size: F

• Amperage Rating: 20 Amps

• Number of Poles: 2

• Trip Unit: T186 Thermal-Magnetic

• Frequency: 50/60 Hz

• Interrupting Rating:
  • 18kAIC @ 240 VAC
  • 14kAIC @ 480 VAC
• Terminal Type: Line and Load

• Dimensions:
  • Width: 2.75 in.
  • Length: 6.00 in.
  • Depth: 3.38 in.
• Weight: 2.95 lbs.

• Certification: UL Listed


Material Compliance and Certifications

The Eaton EHD2020L is UL Listed and manufactured to Eaton's specifications for the Series C family of molded case circuit breakers. It is intended for use in compatible equipment that accepts an EHD complete breaker. Before installation, verify that the catalog number, frame size, amperage, pole configuration, interrupting rating, and terminal style match the original equipment requirements.

Where It Works Best

The Eaton EHD2020L is commonly found in commercial buildings, industrial facilities, manufacturing plants, institutional properties, and other electrical distribution systems where a 20 Amp, 2-pole molded case circuit breaker is required. It is well-suited for compatible panelboards, switchboards, motor control equipment, HVAC systems, machinery, and branch-circuit applications originally designed for an Eaton Series C EHD breaker.
