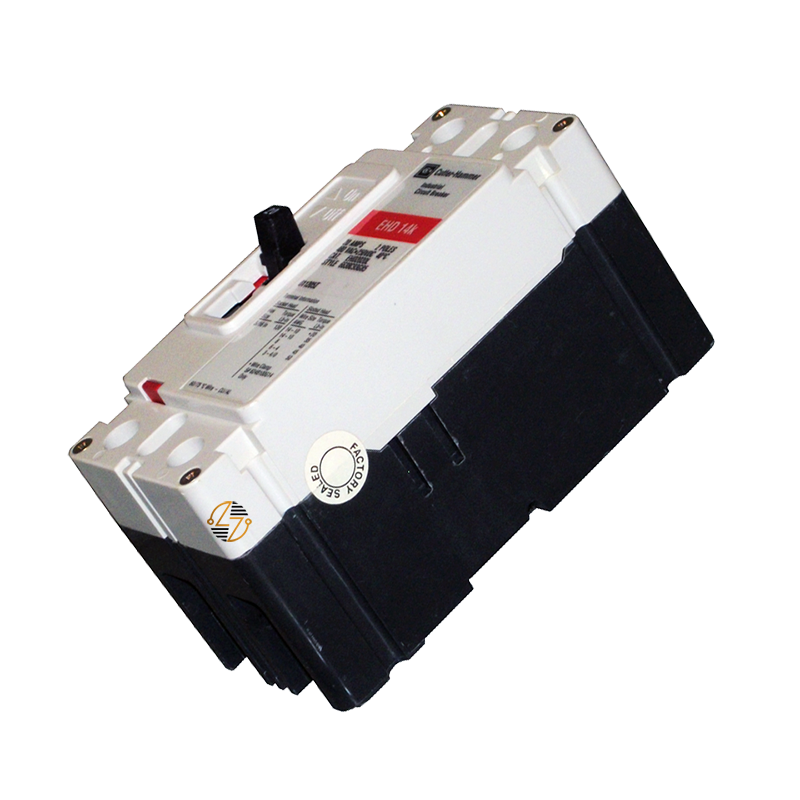

EHD2015L - 15Amp Circuit Breaker

EHD2015L - 15Amp Circuit Breaker

When you need a 15 Amp, 2-pole molded case circuit breaker that matches the original electrical specifications of your existing equipment, the Eaton EHD2015L is designed to provide the correct form, fit, and function. As part of Eaton's trusted Series C family, this complete EHD frame molded case circuit breaker delivers dependable overload and short-circuit protection for compatible commercial and industrial electrical distribution systems. Built to last, the EHD2015L features a T186 thermal-magnetic trip unit, line and load terminals for installation flexibility, and an interrupting capacity of 14 kA at 480 VAC and 18 kA at 240 VAC.

Key Features and Benefits

• Genuine Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD2015L
• 15 Amp current rating
• Two-pole configuration
• T186 thermal-magnetic trip unit
• Complete EHD circuit breaker
• Line and load terminal configuration
• Rated for 50/60 Hz electrical systems
• UL Listed
• Built to last for long-term service in compatible electrical systems
• Designed as a form, fit, and functional replacement for compatible Eaton equipment

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: EHD2015L

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Circuit Breaker Type: EHD

• Frame Type: Complete Breaker

• Amperage Rating: 15 Amps

• Poles: 2

• Trip Type: T186 Thermal-Magnetic

• Frequency Rating: 50/60 Hz

• Interrupting Rating:
  • 14kAIC @ 480 VAC
  • 18kAIC @ 240 VAC
• Terminals: Line and Load

• Dimensions:
  • Width: 2.75 in.
  • Length: 6.00 in.
  • Depth: 3.38 in.
• Weight: 11.5 lbs.

• Certification: UL Listed


Material Compliance and Certifications

The Eaton EHD2015L is UL Listed and manufactured to Eaton's specifications for Series C molded case circuit breakers. It is intended for use in compatible electrical equipment designed to accept an EHD complete breaker. Before installation, verify that the catalog number, amperage rating, pole configuration, interrupting capacity, terminal arrangement, and physical dimensions match the requirements of your existing electrical system.

Where It Works Best

The Eaton EHD2015L is commonly used in commercial buildings, industrial facilities, manufacturing plants, institutional properties, and other electrical distribution systems requiring a 15 Amp, two-pole molded case circuit breaker. It is suitable for compatible panelboards, switchboards, motor control equipment, HVAC applications, lighting circuits, and machinery originally designed for an EHD Series C breaker.
