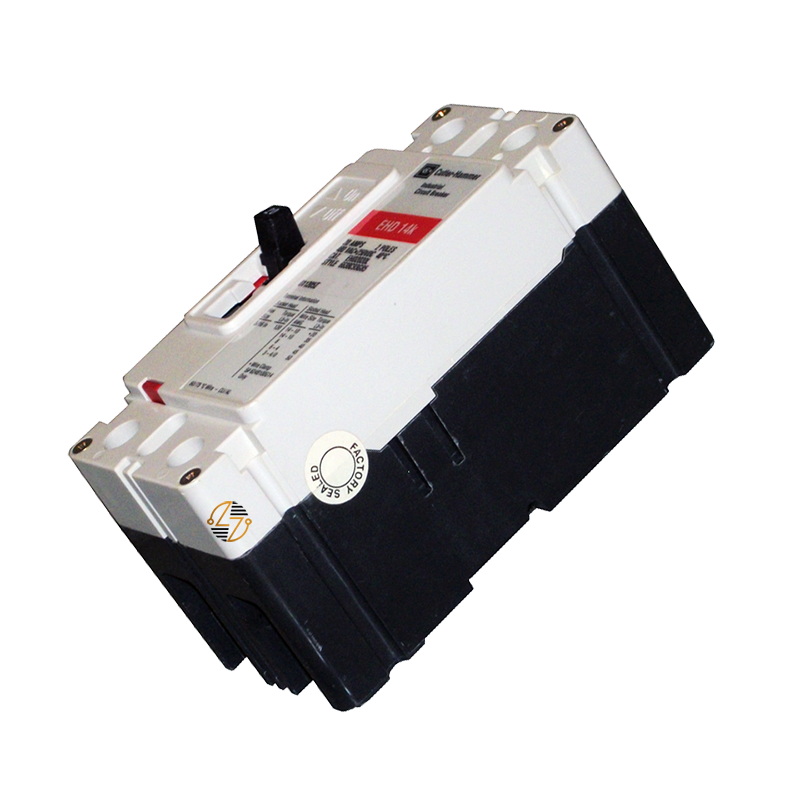

EHD2015 - 15Amp Circuit Breaker

EHD2015 - 15Amp Circuit Breaker

When you need a 15 Amp, 2-pole molded case circuit breaker that matches the original specifications of your existing electrical system, the Eaton EHD2015 is designed to deliver the correct form, fit, and function. Part of Eaton's trusted Series C product family, this complete EHD frame circuit breaker provides dependable overload and short-circuit protection for compatible commercial and industrial electrical distribution equipment. Built to last, the EHD2015 features a thermal-magnetic T186 trip unit, an interrupting capacity of 14 kA at 480 VAC and 18 kA at 240 VAC, and is rated for 50/60 Hz applications. Whether you're replacing a failed breaker during routine maintenance or restoring existing equipment to its original operating condition, this breaker helps maintain the electrical characteristics your system was designed to use.

Key Features and Benefits

• Genuine Eaton Series C molded case circuit breaker
• Catalog Number: EHD2015
• 15 Amp current rating
• Two-pole configuration
• Thermal-magnetic T186 trip mechanism
• Complete EHD breaker with F-frame construction
• Interrupting capacity:
  • 14kAIC at 480 VAC
  • 18kAIC at 240 VAC
• Rated for 50/60 Hz electrical systems
• Load-side terminal configuration
• UL Listed
• Built to last for long-term service in compatible electrical systems
• Designed as a form, fit, and functional replacement for compatible Eaton equipment

Technical Specifications

• Manufacturer: Eaton

• Catalog Number: EHD2015

• Product Type: Molded Case Circuit Breaker

• Series: Series C

• Breaker Type: EHD

• Frame: F Frame

• Amperage: 15 Amps

• Poles: 2

• Trip Type: T186 Thermal-Magnetic

• Frequency: 50/60 Hz

• Interrupting Rating:
  • 14kAIC @ 480 VAC
  • 18kAIC @ 240 VAC
• Terminals: Load Side

• Dimensions:
  • Width: 2.75 in.
  • Length: 6.00 in.
  • Depth: 3.38 in.
• Weight: 2.7 lbs.

• Certification: UL Listed


Material Compliance and Certifications

The Eaton EHD2015 is UL Listed and manufactured to meet Eaton's standards for molded case circuit breakers. It is intended for use in compatible equipment designed for an EHD F-frame breaker. Before installation, verify that the catalog number, amperage, frame size, interrupting rating, pole configuration, and terminal arrangement match the requirements of your existing electrical system.

Where It Works Best

The Eaton EHD2015 is commonly found in commercial buildings, industrial facilities, manufacturing plants, and institutional environments where dependable branch circuit protection is required. It's well suited for compatible panelboards, switchboards, motor control equipment, lighting circuits, HVAC systems, and machinery that call for a 15 Amp, two-pole EHD Series C breaker.
