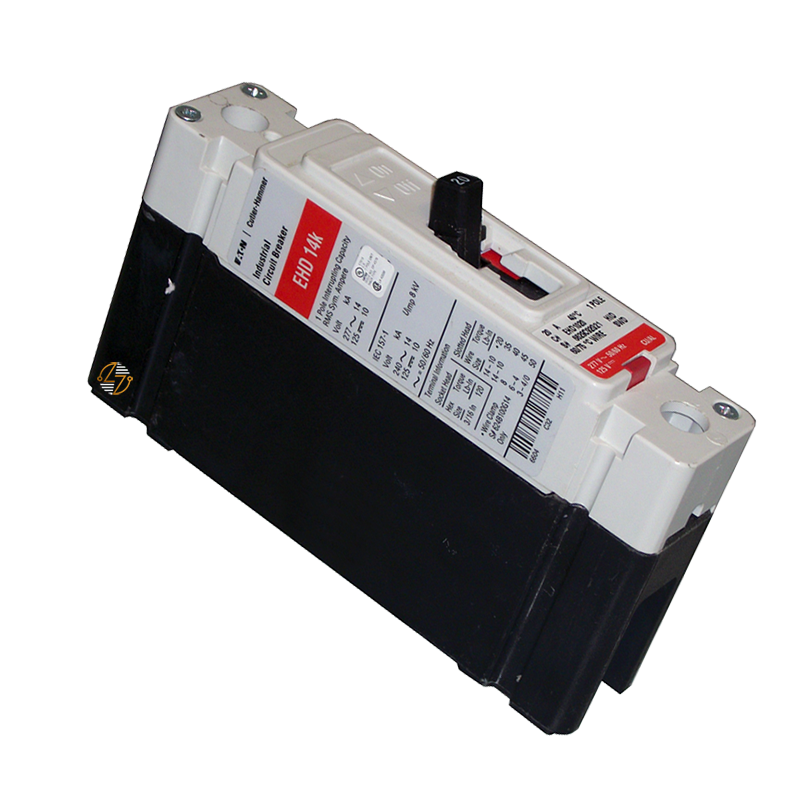

EHD1015L - 15Amp Circuit Breaker

EHD1015L - 15Amp Circuit Breaker

When maintaining or repairing an existing electrical distribution system, having the correct replacement breaker is essential. The Eaton EHD1015L is a 15 Amp, single-pole thermal-magnetic molded case circuit breaker designed to provide dependable overcurrent and short-circuit protection in compatible electrical systems. Featuring a non-interchangeable trip unit, this breaker is rated for 40°C operation and includes line and load terminals for added installation convenience.

With a 14 kA interrupting rating at 277 VAC, the Eaton EHD1015L is well-suited for protecting branch circuits in commercial and industrial environments. Whether you're replacing an existing breaker during routine maintenance or restoring equipment to service, this breaker provides the electrical characteristics required for compatibility with legacy systems.

Key Features and Benefits

• Eaton EHD thermal-magnetic molded case circuit breaker
• Catalog Number: EHD1015L
• 15 Amp current rating
• Single-pole configuration
• Thermal-magnetic protection with non-interchangeable trip unit
• Rated for 40°C operation
• Includes line and load terminals
• Compact design for compatible installations
• Built to last for dependable service in compatible electrical systems
• Designed as a form, fit, and functional replacement where matching specifications are required

Technical Specifications

• Manufacturer: Eaton
• Catalog Number: EHD1015L
• Type: EHD Thermal-Magnetic Molded Case Circuit Breaker
• Amperage Rating: 15 Amps
• Poles: 1
• Interrupting Rating: 14kA @ 277 VAC
• Trip Unit: Thermal-Magnetic, Non-Interchangeable
• Temperature Rating: 40°C
• Terminals: Load Terminals Included
• Terminals: Line Terminals Included
• Dimensions:
  • 1.38 in. W × 6.00 in. H × 3.38 in. D

• Approximate Shipping Weight: 3.00 lbs.

Material Compliance and Certifications

The Eaton EHD1015L is manufactured to Eaton's quality standards and is intended for use in compatible electrical distribution systems. It should be installed in accordance with applicable electrical codes and manufacturer recommendations. Always verify compatibility with your existing equipment before installation.

Where It Works Best

The Eaton EHD1015L is commonly used in commercial, industrial, and institutional electrical systems requiring a 15 Amp, single-pole EHD thermal-magnetic circuit breaker. It is well suited for protecting branch circuits serving lighting, HVAC equipment, machinery, control panels, and other electrical loads that match its electrical ratings. For maintenance and repair projects, it provides the proper form, fit, and functional compatibility for existing installations designed to accept an Eaton EHD breaker.
