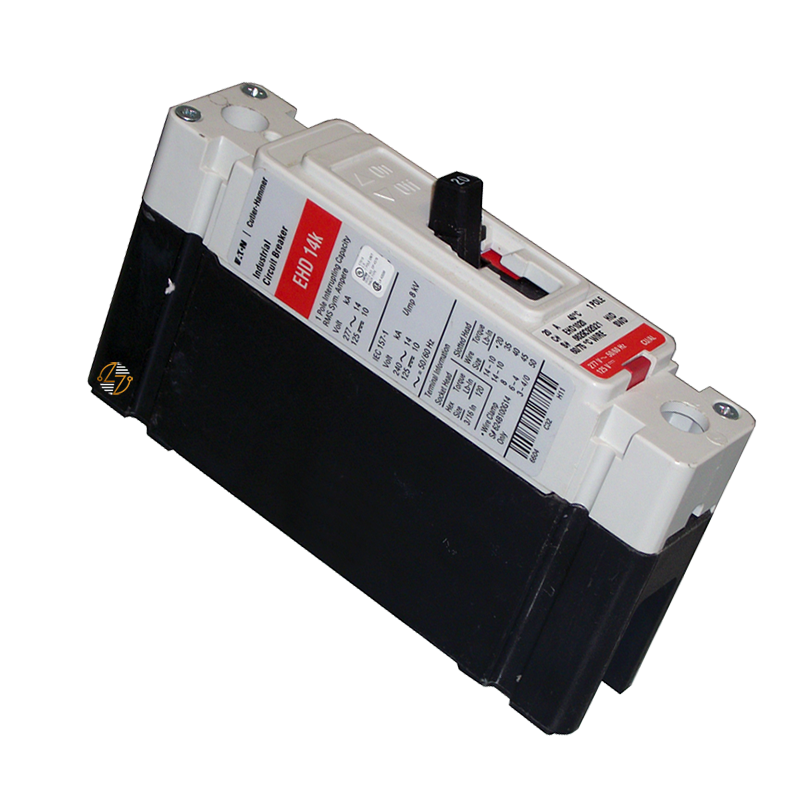

EHD1015 - 15Amp Circuit Breaker

EHD1015 - 15Amp Circuit Breaker

When you need a dependable replacement circuit breaker for an existing Eaton electrical system, the Eaton EHD1015 delivers the form, fit, and function required for compatible installations. This 15 Amp, single-pole molded case circuit breaker is part of Eaton's proven Series C family and is designed to help protect electrical circuits from overloads and short circuits in commercial and industrial applications. Built on the F-frame platform with a T186 thermal-magnetic trip unit, the EHD1015 combines the electrical ratings professionals expect with the durability needed for everyday operation. Whether you're maintaining existing equipment or replacing a breaker with matching specifications, this unit is built to last and helps keep your electrical distribution system operating safely and efficiently.

Key Features and Benefits

• Eaton Series C complete molded case circuit breaker
• Catalog Number: EHD1015
• 15 Amp current rating
• Single-pole design
• T186 thermal-magnetic trip unit
• F-frame construction
• Rated for 50/60 Hz electrical systems
• Load-side terminals
• Built to last for long-term service in compatible installations
• Designed as a form, fit, and functional replacement where matching specifications are required

Technical Specifications

• Manufacturer: Eaton
• Series: Series C
• Catalog Number: EHD1015
• Product Type: Complete Molded Case Circuit Breaker
• Circuit Breaker Type: EHD
• Frame: F Frame
• Amperage Rating: 15 Amps
• Poles: 1
• Trip Type: T186
• Frequency: 50/60 Hz
• Interrupt Rating: 18 kAIC @ 240 VAC; 14 kAIC @ 480 VAC
• Terminals: Load Side
• Dimensions:
  • 6 in. H × 1.38 in. W × 3.38 in. D

• Weight: 1.45 lb

Material Compliance and Certifications

The Eaton EHD1015 is UL Listed, indicating it has been evaluated to recognized safety standards for molded case circuit breakers. Manufactured to Eaton's quality requirements, this breaker is intended for installation in compatible electrical systems in accordance with applicable electrical codes and manufacturer recommendations.

Where It Works Best

The Eaton EHD1015 is commonly used in commercial, industrial, and institutional facilities where a 15 Amp, single-pole Series C F-frame molded case circuit breaker is required. It is well suited for protecting branch circuits serving lighting systems, HVAC equipment, machinery, control panels, and other electrical loads that match its electrical ratings. For maintenance and repair projects, it provides the proper form, fit, and functional compatibility for existing Eaton Series C installations.
