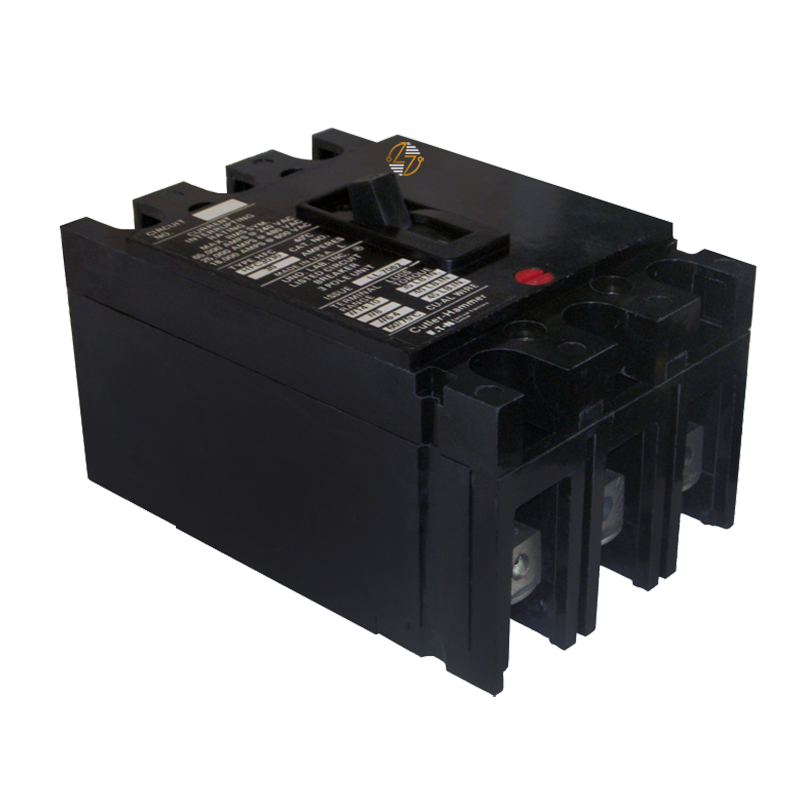

EHC3060 - 60Amp Circuit Breaker

EHC3060 - 60Amp Circuit Breaker

When you're maintaining an existing electrical distribution system, choosing a replacement breaker with the correct ratings and physical configuration is essential. The EHC3060 is a 3-pole, 60 amp thermal-magnetic circuit breaker designed to provide the proper form, fit, and function for compatible Type EHC applications. Built for use in legacy electrical systems, this breaker matches the original equipment's electrical and dimensional specifications, making it a practical replacement when servicing or maintaining existing installations.

The thermal-magnetic trip mechanism protects against both sustained overloads and short-circuit conditions, while the non-interchangeable trip unit helps preserve the equipment's original protection characteristics.

Key Features and Benefits

• Designed for compatible Type EHC electrical distribution systems
• 60 Amp, 3-pole configuration
• Thermal-magnetic trip mechanism helps protect against overloads and short circuits
• Non-interchangeable trip unit maintains the original protection design
• 40°C ambient temperature rating
• Load terminals included
• Provides the correct form, fit, and function for compatible replacement applications
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Part Number: EHC3060

• Type: EHC

• Circuit Breaker Style: Thermal-Magnetic

• Poles: 3

• Current Rating: 60 Amps

• Trip Unit: Non-Interchangeable

• Interrupting Rating: 14kA @ 480VAC; 18kA @ 240VAC

• Temperature Rating: 40°C

• Load Terminals: Included

• Dimensions:
  • Width: 4.13 inches
  • Length: 6.00 inches
  • Depth: 3.38 inches
• Approximate Shipping Weight: 5.50 lbs.


Material Compliance and Certifications

• The EHC3060 is manufactured to meet its published electrical ratings and dimensional specifications for compatible Type EHC applications.
• Before installation, verify that the breaker's type, amperage, pole configuration, voltage rating, interrupting capacity, and physical dimensions match the requirements of your existing equipment.
• Installation should always be completed by qualified personnel and in accordance with applicable electrical codes and manufacturer recommendations.


Where It Works Best

The EHC3060 is commonly used in compatible Type EHC panelboards and electrical distribution systems found in commercial buildings, manufacturing facilities, industrial plants, healthcare facilities, educational campuses, and other institutional environments. It is intended as a functional replacement for existing 60 amp, 3-pole Type EHC circuit breakers with matching specifications.
