EHC3030 - 30Amp Circuit Breaker

EHC3030 - 30Amp Circuit Breaker

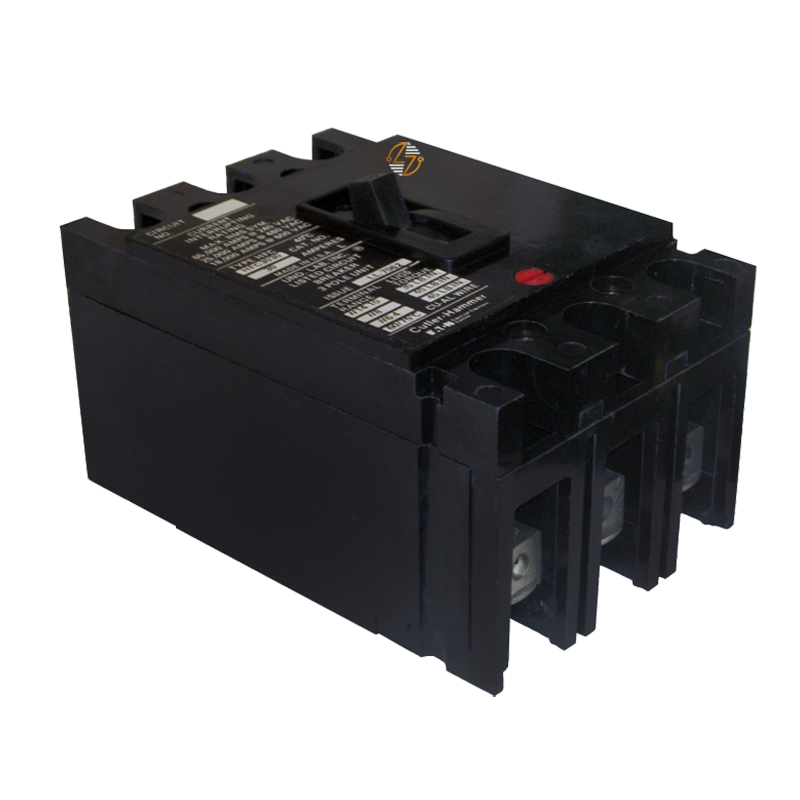

When you need to replace an existing Type EHC circuit breaker, having the correct ratings and physical fit matters. The EHC3030 is a 3-pole, 30 amp thermal-magnetic circuit breaker designed to provide the proper form, fit, and function for compatible electrical distribution equipment. Whether you're performing scheduled maintenance, replacing a failed breaker, or keeping a legacy system operating as intended, this breaker is built to match the original equipment's specifications.

Its thermal-magnetic trip mechanism responds to both sustained overloads and short-circuit conditions, helping protect connected equipment and electrical circuits. The non-interchangeable trip unit preserves the original breaker configuration, while the included load terminals help simplify installation in compatible systems.

Key Features and Benefits

• Designed for compatible Type EHC electrical distribution equipment
• 30 Amp current rating
• 3-pole configuration for three-phase power systems
• Thermal-magnetic trip mechanism provides overload and short-circuit protection
• Non-interchangeable trip unit maintains the original breaker configuration
• Rated for operation in 40°C ambient environments
• Includes load terminals
• Provides the proper form, fit, and function for compatible replacement applications
• Built to last for dependable service in properly maintained electrical systems


Technical Specifications

• Part Number: EHC3030

• Type: EHC

• Circuit Breaker Type: Thermal-Magnetic

• Poles: 3

• Current Rating: 30 Amps

• Trip Unit: Non-Interchangeable

• Interrupting Rating: 14kA @ 480VAC; 18kA @ 240VAC

• Temperature Rating: 40°C

• Load Terminals: Included

• Dimensions:
  • Width: 4.13 inches
  • Length: 6.00 inches
  • Depth: 3.38 inches
• Approximate Shipping Weight: 5.50 lbs.


Material Compliance and Certifications

• The EHC3030 is manufactured to meet its published electrical ratings and dimensional specifications for compatible Type EHC applications.
• Before installation, confirm that the breaker type, amperage, pole configuration, voltage rating, interrupting capacity, mounting arrangement, and physical dimensions match the existing equipment.
• Installation should always be completed by qualified personnel in accordance with applicable electrical codes and manufacturer recommendations.


Where It Works Best

The EHC3030 is commonly used in compatible Type EHC panelboards and electrical distribution systems found in commercial buildings, manufacturing facilities, industrial plants, schools, healthcare facilities, and other institutional environments. It's an excellent choice when replacing an existing 30 amp, 3-pole breaker with matching electrical specifications, helping keep existing equipment operating as originally designed without modifying the system.
