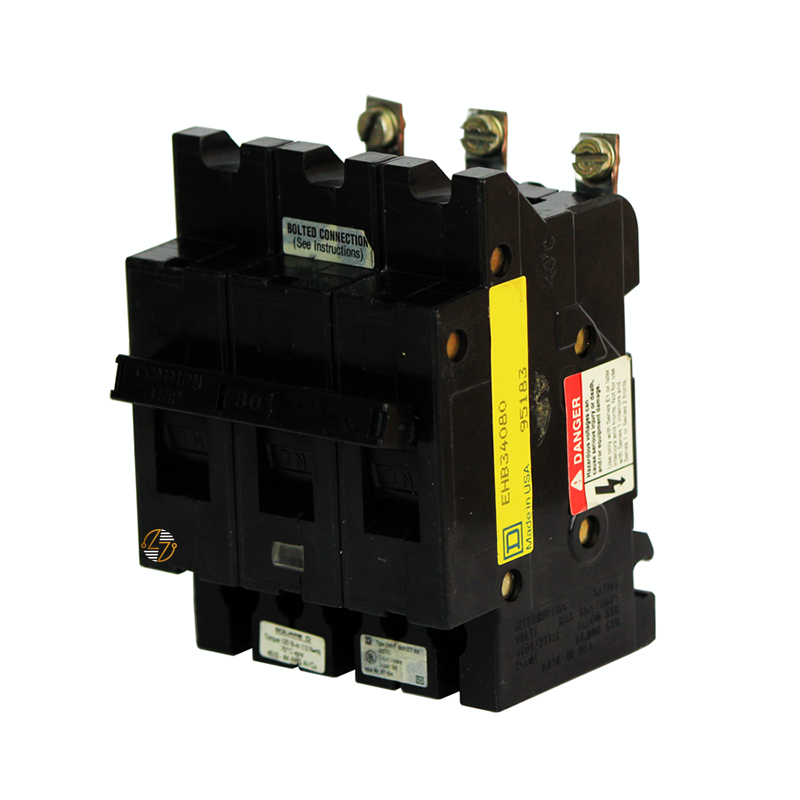

EHB34080 - 80 Amp Circuit Breaker

EHB34080 - 80 Amp Circuit Breaker

When you need a compatible replacement for an existing Type EHB-4 installation, the EHB34080 is built to match the original form, fit, and function. This 3-pole, 80 amp bolt-on circuit breaker is designed for applications that require an interrupting rating of 14kA at 480VAC or 65kA at 240VAC. The bolt-on design provides a secure installation in compatible electrical equipment, making it a practical choice for routine maintenance, repairs, or replacing a worn or damaged breaker. Built to last, the EHB34080 helps keep existing electrical distribution systems operating as intended while maintaining the equipment's original configuration.

Key Features and Benefits

• Compatible with Type EHB-4 electrical systems
• 80 amp current rating
• 3-pole configuration for three-phase applications
• Bolt-on mounting for a secure connection
• Rated 14kA at 480VAC and 65kA at 240VAC
• Designed to match the original form, fit, and function of compatible equipment
• Helps maintain existing electrical systems without requiring panel modifications
• Built to last for continued use in compatible installations


Technical Specifications

• Part Number: EHB34080

• Type: EHB-4

• Mounting Style: Bolt-On

• Poles: 3

• Amperage: 80 Amps

• Interrupting Rating: 14kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Width: 3.50 inches
  • Length: 4.25 inches
  • Depth: 2.63 inches
• Approximate Shipping Weight: 3.25 lbs.


Material Compliance and Certifications

• The EHB34080 is manufactured to meet its published electrical ratings and dimensional specifications for compatible Type EHB-4 applications.
• Always confirm that the breaker's amperage, voltage, interrupting rating, pole configuration, and mounting style match the equipment in which it will be installed.


Where It Works Best

The EHB34080 is commonly found in commercial buildings, manufacturing facilities, schools, hospitals, and other locations that continue to use compatible Type EHB-4 electrical distribution equipment. It's well suited for maintenance projects, equipment repairs, and replacing an existing compatible breaker while preserving the original system design.
