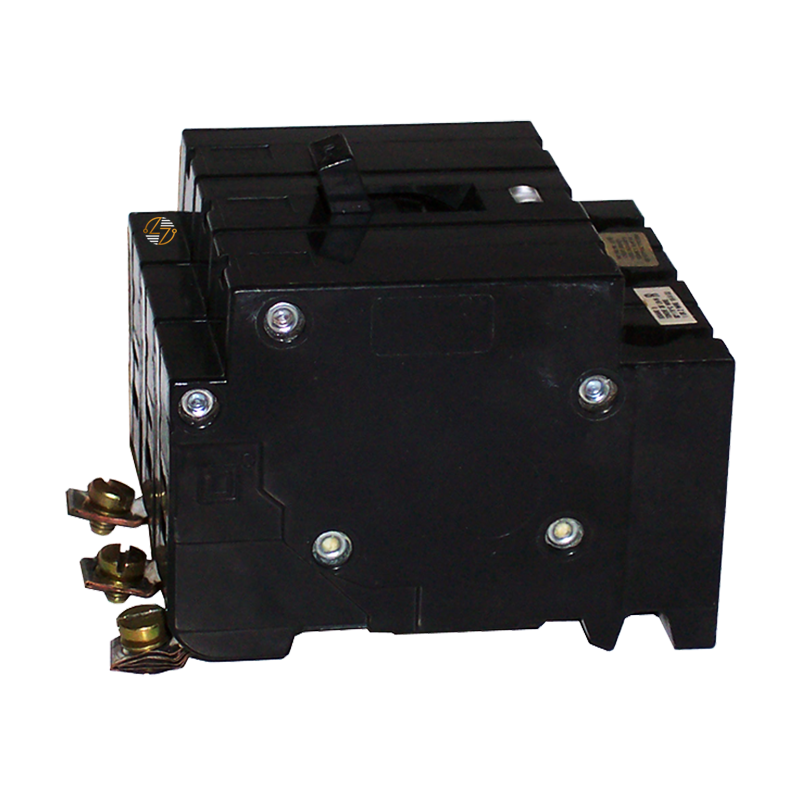

EHB34060 - 60 Amp Circuit Breaker

EHB34060 - 60 Amp Circuit Breaker

When you're replacing a circuit breaker in an existing electrical system, having the right match makes all the difference. The EHB34060 is a 3-pole, 60 amp bolt-on circuit breaker designed for compatible Type EHB-4 electrical distribution equipment. It provides the form, fit, and function needed for a straightforward replacement, helping maintain the original configuration of your electrical system without unnecessary modifications. With an interrupting capacity of 14 kA at 480 VAC and 65 kA at 240 VAC, the EHB34060 is intended for applications requiring these specific electrical ratings. Its bolt-on mounting design creates a secure connection in compatible panelboards and switchboards, making it a practical option for routine maintenance, repairs, and replacement projects.

Key Features and Benefits

• 60 amp current rating
• Three-pole configuration for compatible three-phase electrical systems
• Bolt-on mounting for a secure installation
• Interrupting capacity of 14kA @ 480VAC and 65kA @ 240VAC
• Designed for compatible Type EHB-4 electrical distribution equipment
• Provides the correct form, fit, and function for replacing an existing compatible breaker
• Helps maintain the original configuration of existing electrical systems
• Built to last for dependable service in compatible applications


Technical Specifications

• Part Number: EHB34060

• Type: EHB-4

• Mounting Style: Bolt-On

• Poles: 3

• Amperage: 60 Amps

• A.I.C. Rating: 14kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Width: 3.00 inches
  • Length: 3.50 inches
  • Depth: 2.63 inches
• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• The EHB34060 is manufactured to meet its published electrical ratings and dimensional specifications for compatible Type EHB-4 applications.
• Before installation, verify that the breaker type, amperage, voltage, interrupting capacity, pole configuration, mounting style, and dimensions match the requirements of your existing equipment.
• Installation should always be completed by qualified personnel and in accordance with applicable national, state, and local electrical codes.


Where It Works Best

The EHB34060 is commonly used in commercial, industrial, and institutional facilities that continue to operate compatible Type EHB-4 electrical distribution equipment. It is well suited for preventive maintenance, equipment repairs, and replacing an existing breaker with matching specifications. When maintaining the original design of a legacy electrical system is important, the EHB34060 provides the compatibility needed for a reliable form, fit, and function replacement.
