EHB34035 - 35 Amp Circuit Breaker

EHB34035 - 35 Amp Circuit Breaker

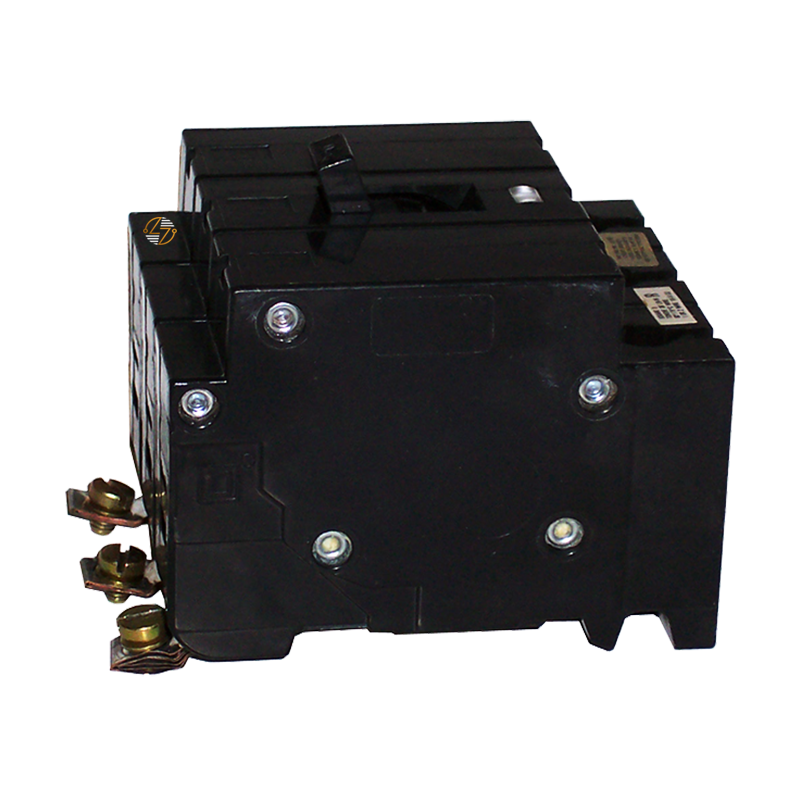

The EHB34035 is a 3-pole, 35 amp bolt-on circuit breaker designed for use in compatible Type EHB-4 electrical distribution systems. Whether you're replacing an existing breaker as part of routine maintenance or restoring equipment to service, this breaker provides the form, fit, and function needed for a compatible replacement. With an interrupting capacity of 14 kA at 480 VAC and 65 kA at 240 VAC, the EHB34035 is intended for applications requiring these specific electrical ratings. Its bolt-on mounting configuration helps ensure a secure installation in compatible panelboards and switchboards while maintaining the original equipment layout.

Key Features and Benefits

• 35 amp continuous current rating
• Three-pole design for compatible three-phase electrical systems
• Bolt-on mounting for secure installation in compatible equipment
• Designed for use in compatible Type EHB-4 electrical systems
• Provides the correct form, fit, and function for replacing an existing compatible circuit breaker
• Helps maintain the original configuration of existing electrical equipment
• Built to last for dependable service in properly maintained applications


Technical Specifications

• Part Number: EHB34035

• Type: EHB-4

• Mounting Style: Bolt-On

• Poles: 3

• Amperage: 35 Amps

• Interrupting Capacity: 14kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Width: 3.00 inches
  • Length: 3.50 inches
  • Depth: 2.63 inches
• Approximate Shipping Weight: 3.00 lbs.


Material Compliance and Certifications

• The EHB34035 is manufactured to match the published electrical ratings and physical dimensions associated with compatible Type EHB-4 circuit breakers.
• Before installation, verify that the breaker type, amperage, voltage, interrupting capacity, pole configuration, mounting style, and dimensions match the requirements of your existing electrical equipment.
• Installation should be completed by qualified personnel and in accordance with applicable national, state, and local electrical codes.


Where It Works Best

• The EHB34035 is well suited for commercial, industrial, and institutional facilities that continue to operate Type EHB-4 electrical distribution equipment. It is commonly used during maintenance, equipment repairs, and replacement projects where preserving compatibility with existing systems is important. When a direct replacement is needed, this breaker provides the form, fit, and function required to help maintain the original equipment configuration without altering the existing electrical design.
