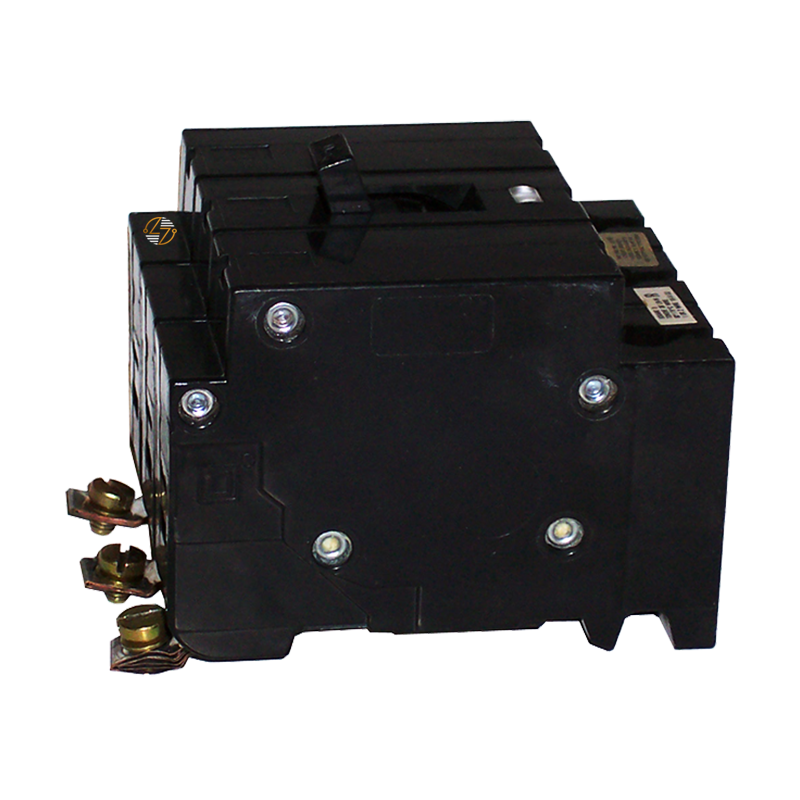

EHB34025 - 25 Amp Circuit Breaker

EHB34025 - 25 Amp Circuit Breaker

Keep your circuits safe with the EHB34025 25 Amp, three-pole breaker (EHB‑4 frame). Built for commercial and industrial use, it handles heavy loads without worry and protects against overloads and short circuits. The bolt-on design makes installation simple—just slot it in, tighten it down, and you’re ready to go. Its quick-response trip unit kicks in when needed, keeping your system protected.

Key Features and Benefits

• High Interruption Capacity: Rated at 14 kA @ 480 VAC and 65 kA @ 240 VAC, this breaker stops fault currents fast to help avoid damage.
• Thermal-Magnetic Trip Unit: Cuts power quickly if there’s an overload or short circuit.
• Easy Installation: Bolt-on setup saves time and makes maintenance straightforward.
• Long-Lasting Build: Designed to hold up in tough environments and give years of dependable service.

Technical Specifications

• Amperage: 25 Amps
• Poles: 3
• A.I.C. Rating:
  • 14 kA @ 480 VAC
  • 65 kA @ 240 VAC
• Frame Type: EHB‑4
• Mounting Style: Bolt-On
• Dimensions:
  • Width: 3.00″
  • Length: 3.50″
  • Depth: 2.63″
• Weight: ~3 lbs

Material Compliance and Certifications

• UL Listed: Meets safety standards from Underwriters Laboratories.
• SWD Rated: Good for switching duty, including inductive loads.
• Temperature Rating: Safe for use in up to 60 °C / 75 °C environments.

Suitability

• This breaker is designed for the NEHB Panelboard only, whether you’re installing in a new system or upgrading an existing one. It’s ideal for commercial and industrial spaces where reliable circuit protection is essential to avoid downtime or equipment damage.
