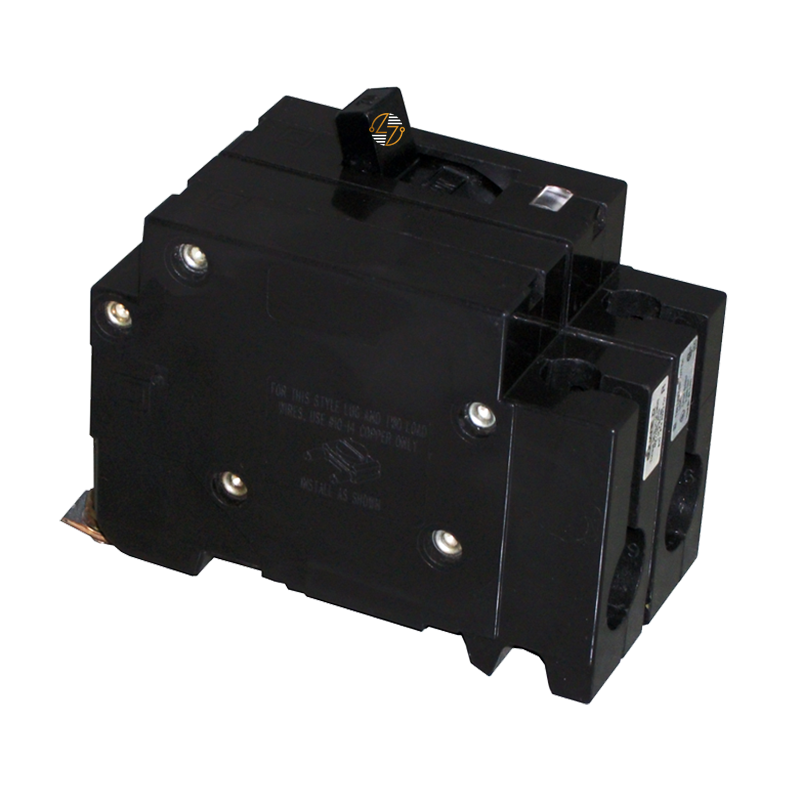

EHB24060 - 60 Amp Circuit Breaker

EHB24060 - 60 Amp Circuit Breaker

When you need a compatible replacement for an existing Type EHB-4 circuit breaker, the EHB24060 is designed to provide the same form, fit, and function as the original device in compatible electrical distribution systems. This 2-pole, 60-amp bolt-on circuit breaker is intended to help protect electrical circuits from overloads and short circuits while maintaining the original equipment configuration. Its bolt-on mounting design provides a secure connection in compatible panelboards, making it a practical choice for maintenance, repairs, and replacement projects where matching the original specifications is essential.

Whether replacing a worn breaker during scheduled maintenance or restoring an existing electrical system to proper operation, selecting the correct breaker type, amperage, voltage rating, interrupting capacity, and mounting style helps ensure compatibility with the original equipment.

Key Features and Benefits

• 60 Amp current rating for overcurrent protection in compatible electrical systems
• 2-pole design protects two energized conductors
• Bolt-on mounting provides a secure installation in compatible panelboards
• Type EHB-4 configuration designed for proper form, fit, and functional replacement
• Built to last for long-term use in compatible commercial and industrial applications
• Compact design fits compatible electrical distribution equipment requiring an EHB-4 breaker
• Suitable for maintenance, repairs, and replacement of existing compatible circuit breakers


Technical Specifications

• Part Number: EHB24060

• Type: EHB-4

• Mounting Style: Bolt-On

• Poles: 2

• Amperage: 60 Amps

• A.I.C. Rating: 14kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Width: 2.00 inches
  • Length: 3.50 inches
  • Depth: 2.63 inches
• Approximate Shipping Weight: 2.38 lbs.


Material Compliance and Certifications

• Designed for use in compatible electrical distribution equipment.
• Verify compatibility by confirming the breaker type, amperage, voltage rating, interrupting capacity, and mounting configuration before installation.
• Installation should be performed by qualified personnel and in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

The EHB24060 is commonly installed in commercial, industrial, and institutional electrical systems that utilize compatible Type EHB-4 panelboards. Typical applications include manufacturing facilities, office buildings, schools, healthcare facilities, warehouses, and other buildings where maintaining existing electrical infrastructure is important. When replacing a breaker with matching specifications, the EHB24060 is designed to provide the proper form, fit, and function for compatible legacy electrical systems while preserving the original equipment configuration.
