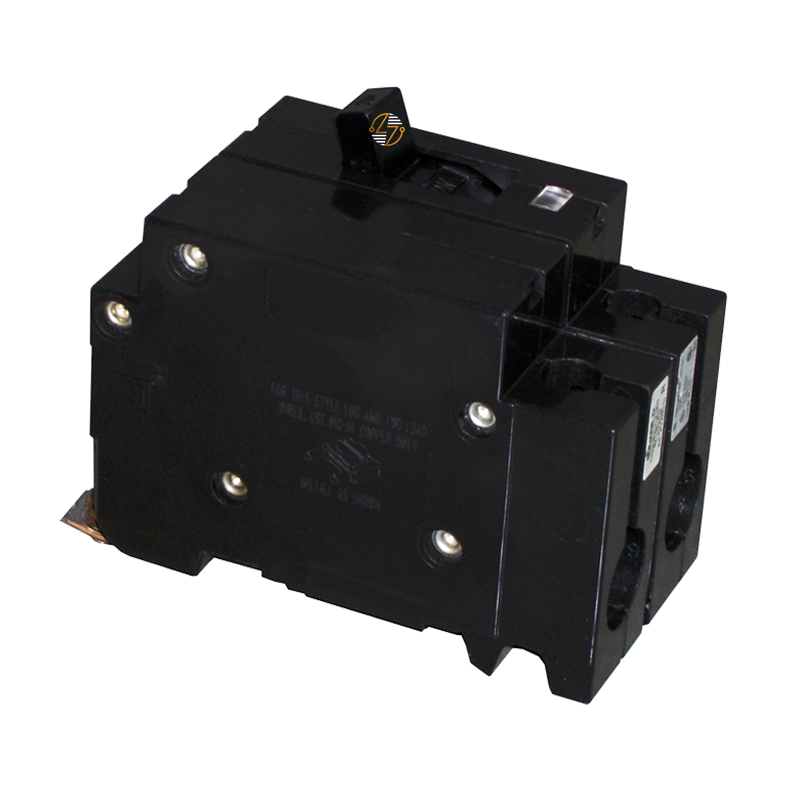

EHB24030 - 30 Amp Circuit Breaker

EHB24030 - 30 Amp Circuit Breaker

When you need a replacement circuit breaker that matches the original equipment specifications, the EHB24030 is designed to provide the correct form, fit, and function for compatible electrical systems. This 2-pole, 30-amp bolt-on circuit breaker is commonly used in commercial and industrial electrical distribution equipment where dependable overcurrent protection is essential. Its bolt-on design helps create a secure connection to the panelboard, making it well suited for maintenance, repairs, or replacing an existing breaker with the same ratings.

Key Features and Benefits

• 30 Amp current rating for dependable branch circuit protection
• 2-pole design for applications requiring protection of two energized conductors
• Bolt-on mounting provides a secure attachment in compatible panelboards
• Type EHB-4 configuration for proper form, fit, and functional replacement
• Helps maintain compatibility with existing electrical distribution equipment
• Built to last for long-term service in commercial and industrial environments
• Compact size allows installation in compatible panelboards where space and fit are important


Technical Specifications

• Part Number: EHB24030

• Type: EHB-4

• Mounting Style: Bolt-On

• Poles: 2

• Amperage: 30 Amps

• Interrupting Rating: 14kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Width: 2.00 inches
  • Length: 3.50 inches
  • Depth: 2.63 inches
• Approximate Shipping Weight: 2.38 lbs.


Material Compliance and Certifications

• Designed for use in compatible electrical distribution equipment.
• Always verify the required breaker type, amperage, voltage rating, interrupting capacity, and mounting configuration before installation.
• Installation should be completed by qualified personnel and in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

The EHB24030 is a practical choice for a wide range of commercial, industrial, and institutional applications that rely on compatible Type EHB-4 circuit breakers. It is frequently used in panelboards and electrical distribution systems found in manufacturing facilities, office buildings, schools, healthcare facilities, warehouses, and other commercial properties. Whether you're performing scheduled maintenance or replacing a failed breaker, this model is designed to meet the original equipment specifications so your existing electrical system can continue operating as intended.
