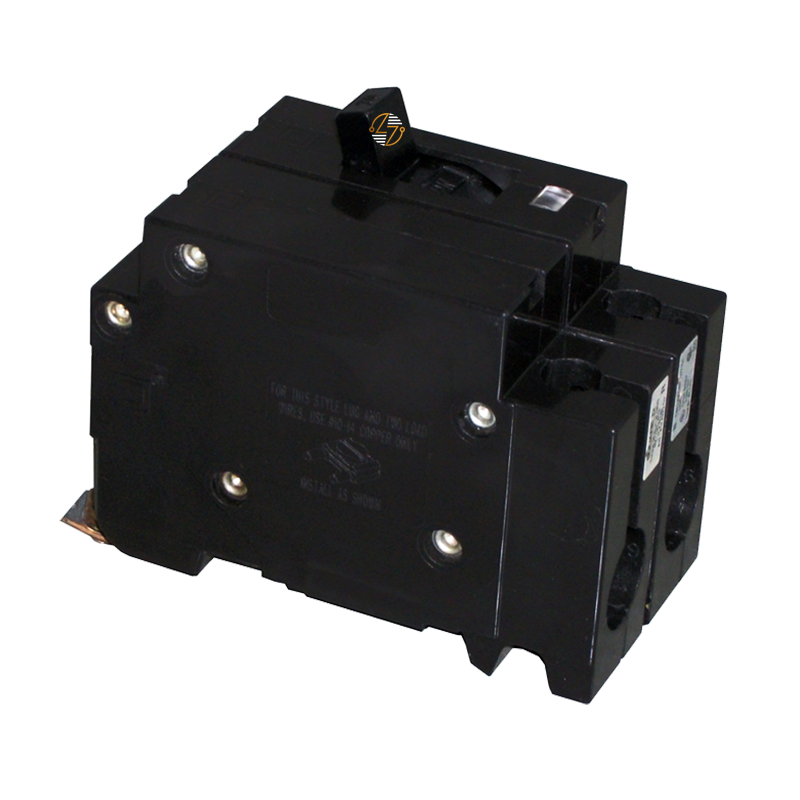

EHB24020 - 20 Amp Circuit Breaker

EHB24020 - 20 Amp Circuit Breaker

When you need a compatible replacement circuit breaker for an existing electrical system, the EHB24020 offers the form, fit, and function required for the job. This 2-pole, 20-amp bolt-on circuit breaker is designed for use in applications that require a Type EHB-4 breaker, making it a dependable choice for maintaining commercial, industrial, and institutional electrical equipment. Its bolt-on mounting design provides a secure connection in compatible panelboards, helping preserve the original equipment configuration without unnecessary modifications.

Whether you're replacing a worn breaker during scheduled maintenance or restoring a piece of electrical equipment to service, matching the original electrical and mechanical specifications is essential.

Key Features and Benefits

• 20 Amp current rating for dependable branch circuit protection
• 2-pole design for applications requiring protection of two energized conductors
• Bolt-on mounting provides a secure fit in compatible panelboards
• Type EHB-4 circuit breaker
• Designed as a form, fit, and functional replacement for compatible electrical distribution equipment
• Built to last for long-term service in demanding commercial and industrial environments
• Compact footprint fits compatible installations without requiring equipment modifications


Technical Specifications

• Part Number: EHB24020

• Type: EHB-4

• Mounting Style: Bolt-On

• Poles: 2

• Current Rating: 20 Amps

• Interrupting Rating: 14kA @ 480VAC; 65kA @ 240VAC

• Dimensions:
  • Width: 2.00 inches
  • Length: 3.50 inches
  • Depth: 2.63 inches
• Approximate Shipping Weight: 2.38 lbs.


Material Compliance and Certifications

• Designed for installation in compatible electrical distribution equipment.
• Verify breaker type, amperage, voltage rating, interrupting capacity, and mounting style before installation.
• Installation should be performed by qualified personnel in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

The EHB24020 is commonly used in commercial buildings, industrial facilities, institutional properties, manufacturing plants, and other electrical distribution systems that require a compatible Type EHB-4, 2-pole, 20-amp bolt-on circuit breaker. It's an excellent choice for maintenance teams, electrical contractors, and facility managers who need a replacement breaker that meets the original equipment specifications and helps maintain the integrity of the existing electrical system.
